- The CompVR 12-Inch Subwoofer is a 4 dual voice coil design, making it easy to get the most out of your amp.
- With Santoprene surround that gives the cone added strength under stress, the Spiralead perimeter venting, and spring-loaded push terminals the Kicker 12" CompVR Subwoofer provides high-quality and high-performance.
- CompVR creates your bass using high-temp, dual voice coils.
- The CompVR 12-Inch Subwoofer works best with a sealed or ported enclosure and 400 watts of recommended power. See below for more details.
- MEASUREMENTS - Overall Diameter: 12 | Mounting Depth: 6.25" | Mounting Diameter: 11

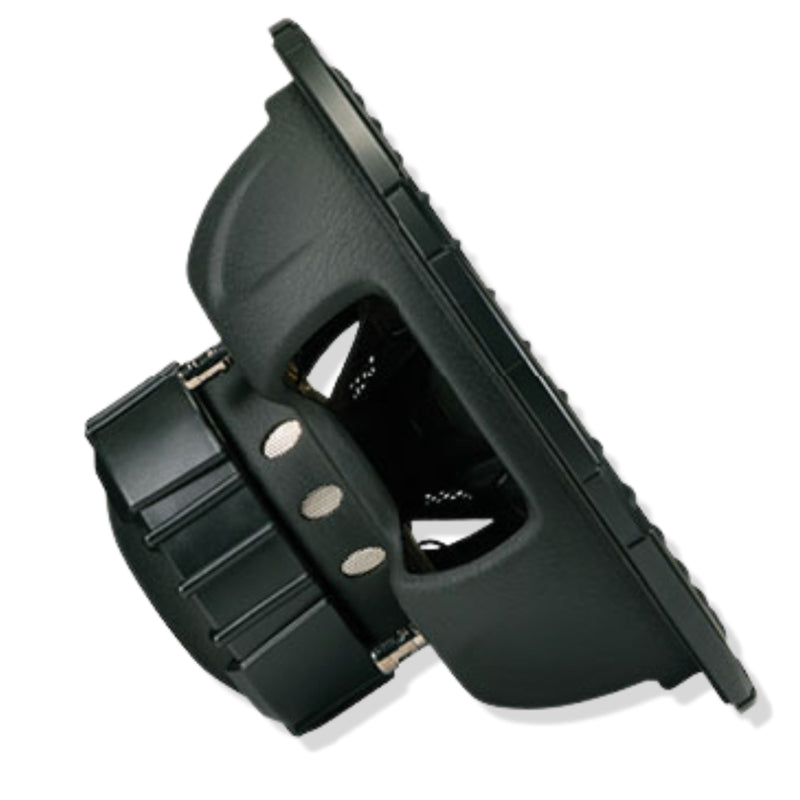

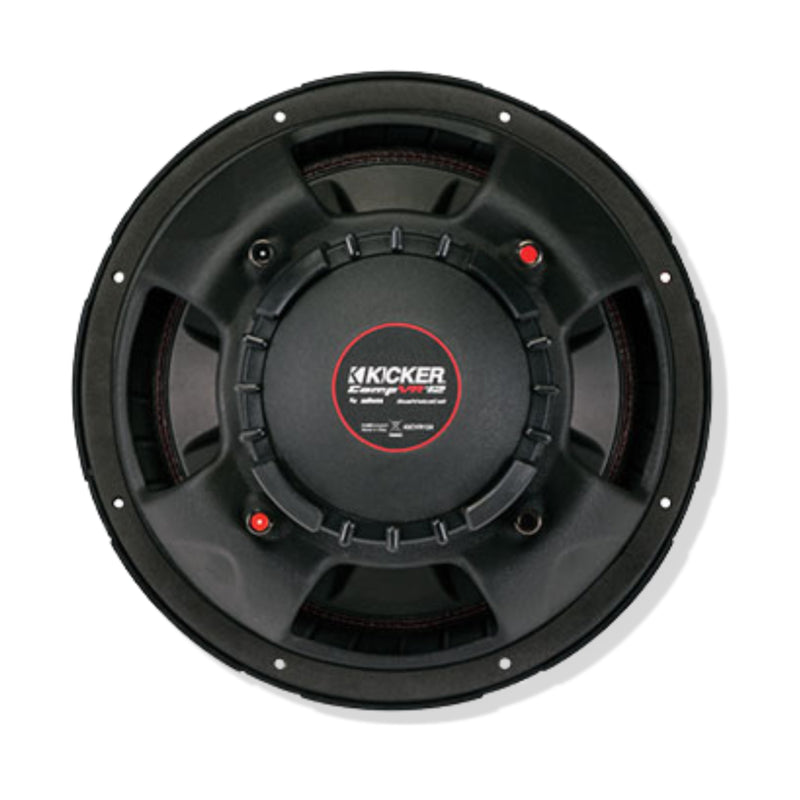

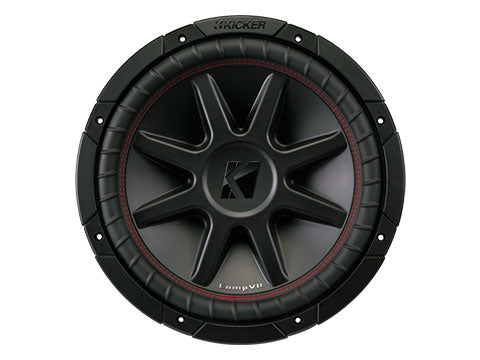

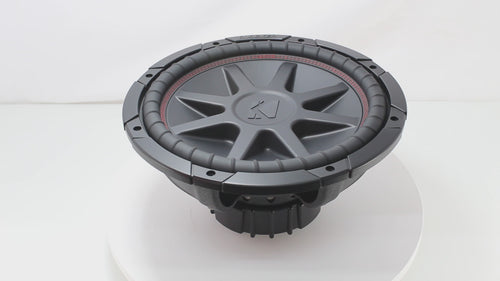

Kicker 12" 4 Ohm 800W Peak CompVR Pro Car Audio Subwoofer Black 43CVR124
The Kicker CompVR Subwoofer gives you incredible bang for the buck. Emphasis on bang! The CompVR 12-Inch Subwoofer is a 4 dual voice coil design, built for easy wiring. CompVR creates your bass using high-temp, dual voice coils. A ribbed Santoprene surround also gives the cone added strength under stress. The perimeter venting, Spiralead tinsel-lead technology, and spring-loaded push terminals are part of the high-performance engineering standards found on every KICKER woofer. The CompVR 12-Inch Subwoofer works best with a sealed or ported enclosure and 400 watts of recommended power. See below for more details.
This Listing Includes:
- (1) Kicker 12" 4 Ohm 800W Peak CompVR Pro Car Audio Subwoofer Black 43CVR124
Thiele/Small Parameters:
- Re | 7.13 - Ohm electrical voice coil resistance at DC
- Krm | 0.01065 - Ohm WRIGHT inductance mode
- Erm | 0.87 - WRIGHT inductance mode
- Kxm | 0.05685 - Ohm WRIGHT inductance mode
- Exm | 0.75 - WRIGHT inductance mode
- Cmes | 474.11 - F electrical capacitance representing moving mass
- Lces | 49.66 - mH electrical inductance representing driver compliance
- Res | 108.625 Ohm resistance due to mechanical losses
- fs | 32.85 - Hz driver resonance frequency
- Mms | 163.3285g mechanical mass of driver diaphragm assembly including air load and voice coil
- Mmd (Sd) | 149.504g mechanical mass of voice coil and diaphragm without air load
- Rms | 3.174 kg/s mechanical resistance of total-driver losses
- Cms | 0.1445 mm/N mechanical compliance of driver suspension
- Kms | 6.95 N/mm mechanical stiffness of driver suspension
- Bl | 18.5685 Tm force factor (Bl product)
- Lambda | 0.0185 suspension creep factor
- Qtp | 0.7465 total Q-factor considering all losses
- Qms | 10.61 mechanical Q-factor of driver in free air considering Rms only
- Qes | 0.6965 electrical Q-factor of driver in free air considering Re only
- Qts | 0.6535 total Q-factor considering Re and Rms only
- Vas | 57.52965 I equivalent air volume of suspension
- n0 | 0.28%reference efficiency (2 pi-radiation using Re)
- Lm | 86.675 dB characteristic sound pressure level (SPL at 1m for 1W @ Re)
- Lnom | 87.17 dB nominal sensitivity (SPL at 1m for 1W @ Zn)
- rmse Z | 2.7%root-mean-square fitting error of driver impedance Z(f)
- rmse Hx | 1.885%root-mean-square fitting error of transfer function Hx (f)
- Sd | 530.93cmdiaphragm area
- Xmax | 14 mmXmax (Linear Excursion)
Specifications:
- SIZE: 12"
- IMPEDANCE [Ohms]: 4 DVC
- Recommended Amplifier Power (watts RMS): 400
- Peak Power (watts, per ANSI/CTA-2031-A): 800
- SENSITIVITY [dB 1w/1m]: 86.9
- MOUNTING DEPTH: 6.25"
- MOUNTING DIAMETER: 11"
- MIN SEALED BOX VOL [cu. ft, L]: 1.0, 28.3
- MAX SEALED BOX VOL [cu. ft, L]: 4.6, 130
- MIN VENTED BOX VOL [cu. ft, L]: 1.75, 49.6
- MAX VENTED BOX VOL [cu. ft, L]: 2.25, 63.7
Product Dimensions:
-Length: 12.5"
-Width: 12.5"
-Height:7.5"
Product Weight:
-13.5 lbs
Package Dimensions:
-Length: 14"
-Width: 14"
-Height: 8"
Package Weight:
-15 lbs
