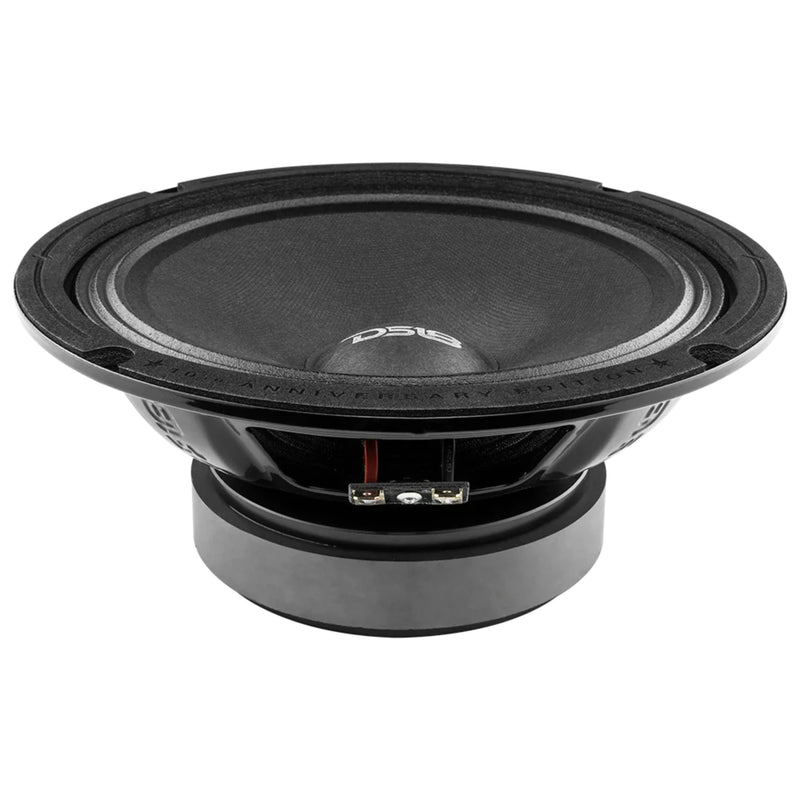

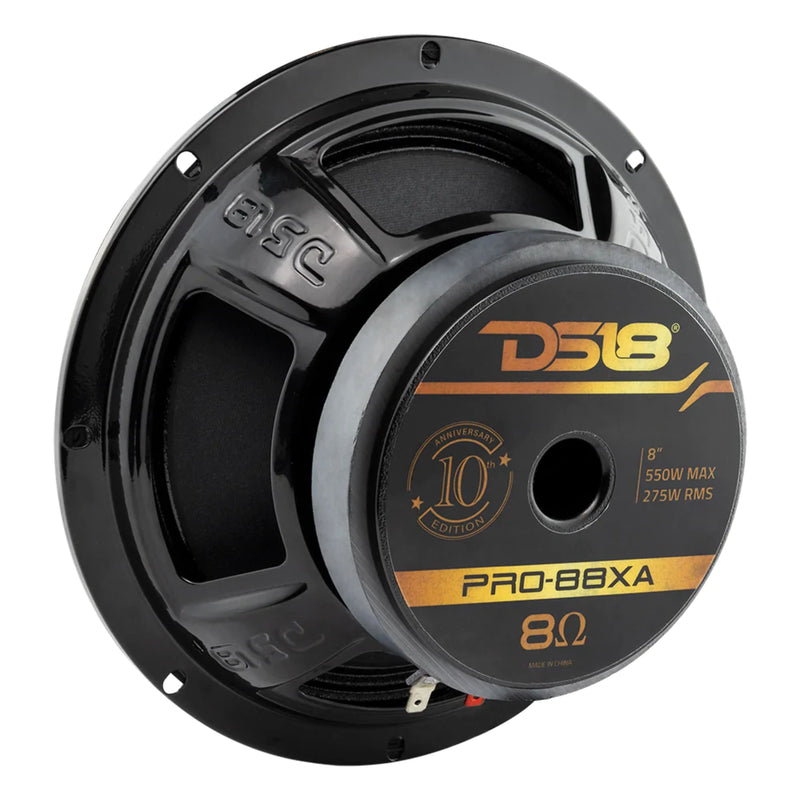

DS18 PRO-88XA Special Edition 8" Midrange Car Speaker 8 Ohm 550W RMS

• MIDRANGE THAT HANDLES IT ALL - A mid-range driver that can answer the call to handle the most significant part of the audible sound spectrum. A speaker that sounds great with just instrumentals and, even better with vocals.
• POWER YOU CAN COUNT ON - DS-PRO-88XA delivers an impressive 550W Max Power with 275W RMS at 8 Ohms, enough to tackle a full range of audio.
• EXCLUSIVE DESIGN. 33oz magnet with 1.5-inch high-strength voice coil for high-power applications.
• 10 YEAR ANNIVERSARY - DS18 Has been providing the cleanest and loudest sound on the streets for 10 years!
• MEASUREMENTS - - Overall Diameter: 6.5" | Overall Depth: 3.00" | Front Mount Baffle Cutout: 5.6" | Mounting Depth: 2.75" | Motor Diameter: 4.7"

DS18 PRO-88XA Special Edition 8" Midrange Car Speaker 8 Ohm 550W RMS

This listing includes:

• 1 x DS18 Black 8" Midrange PRO Car Audio 8 Ohm 550W Loudspeaker (DS-PRO-88XA)

Description

Upgrade your vehicle’s audio system with the DS18 PRO-88XA Special Edition 8" Midrange Loudspeaker. Designed for high-performance car audio setups, this speaker offers powerful 550W RMS power handling and an 8-ohm impedance for excellent compatibility with most amplifiers. The speaker delivers crisp, detailed midrange frequencies with minimal distortion, making vocals and instruments sound clear and natural.

Built with durability in mind, the PRO-88XA features premium materials and robust construction to withstand demanding environments. Whether you’re a car audio enthusiast or a professional installer, this midrange speaker provides reliable, concert-quality sound that transforms your listening experience.

Features

• Special Edition 8" Midrange Loudspeaker


• 550 Watts RMS power handling for powerful, distortion-free sound


• 8 Ohm impedance for versatile amplifier compatibility


• High sensitivity for clear, detailed midrange frequencies


• Durable design built for long-lasting performance in automotive environments


• Ideal for enhancing vocals, instruments, and overall audio clarity


• Perfect for custom car audio installations or upgrades

Specifications

• Nominal Diameter: 8"


• Nominal Impedance: 8 Ohms


• RMS Power Handling: 275W


• MAX Power Handling: 550W


• Sensitivity (1w/1m): 97.8dB


• Frequency Response: 60Hz - 8KHz


• Recommended High-Pass Crossover: 80Hz


• Unit: Single Speaker

Motor Specifications:

• Voice Coil Diameter: 1.5"


• Voice Coil Former Material: Kapton


• Winding Material: CCAW


• Cone Material: Paper


• Dust Cap Material: Paper


• Surround Material: Cloth


• Basket Material: Steel


• Basket Color: Glossy Black


• Magnet Material: Ferrite


• Magnet Weight: 33oz

Measurements:

• Overall Diameter: 8.25"


• Overall Depth: 3.45"


• Front Mount Baffle Cutout: 7.25"


• Mounting Depth: 3.2"


• Motor Diameter: 4.7"

Thiele & Small Parameters

• Equivalent Volume (Vas): 18.36L / 0.64ft


• Excursion (Xmax): 2.5mm


• Free Air Resonance (Fs): 82Hz


• Mechanical Factor (Qms): 10.95


• Electrical Factor (Qes): 0.74


• Total Factor (Qts): 0.7


• Mechanical Mass (Mms): 13.2g


• Mechanical Compliance (Cms): 0.28mm/N


• BL Factor: 7.48


• Voice Coil Inductance (Le): 0.846mH


• Cone Area (Sd): 213.82cm


• DC Resistance (Re): 6.1 Ohms

Package Dimensions:

Length:  9"

Width:    9"

Height:  4.25"

Weight: 5.05 lb
