- High-Output 10 Inch Subwoofer: HD Velocity Series sub built for strong low-frequency performance in high-power car audio systems
- 2200W RMS Power Handling: Equipped with a 3.0 inch 4-layer high-temperature voice coil for reliable performance at extreme power levels
- Triple Magnet Motor Structure: Massive 315 oz triple-stacked magnet system delivers strong motor force and deep, controlled bass
- Carbon Fiber Reinforced Cone: Non-pressed paper cone enhanced with carbon fiber for strength, accuracy, and improved bass response
- Rugged Die-Cast Basket: Heavy-duty aluminum basket with blue finish provides rigidity, cooling, and long-term durability

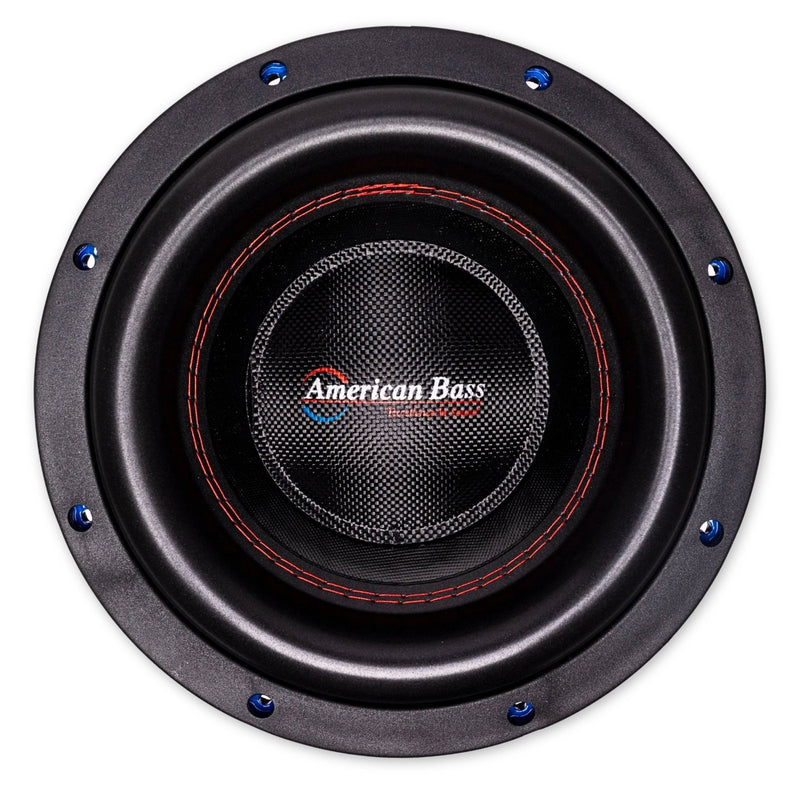

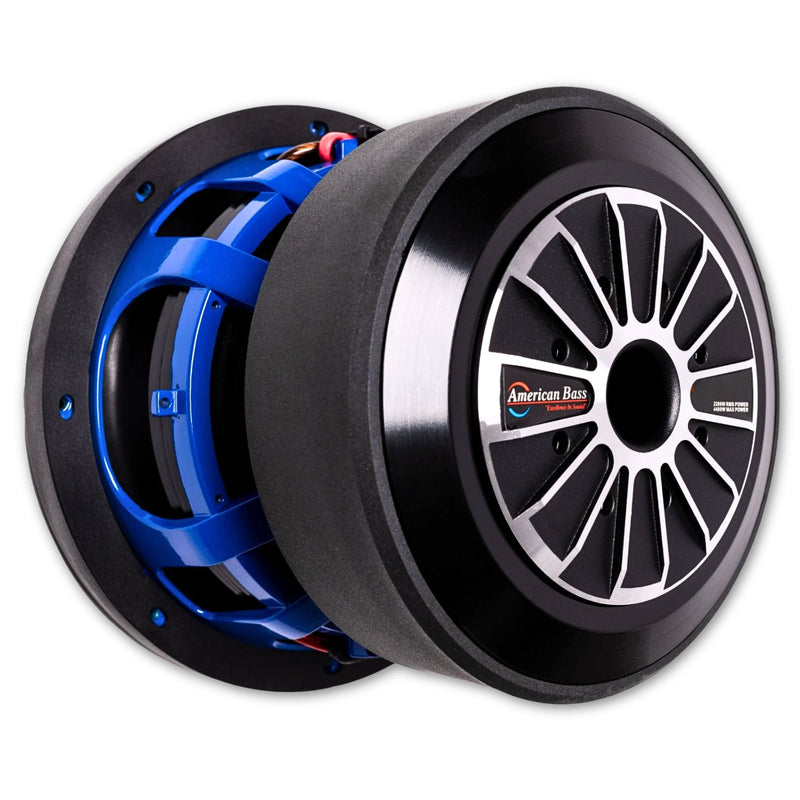

American Bass 10" 1-Ohm 2200W RMS Triple Stack Magnet Subwoofer HD-VELOCITY10-D1
This Listing Includes
- (1) American Bass 10" 1-Ohm Subwoofer HD-VELOCITY10-D1
The American Bass HD Velocity Series 10" subwoofer is engineered for bass enthusiasts who want serious output, durability, and efficiency in a compact high-performance design. Built to handle demanding power levels, this sub delivers deep, clean, hard-hitting bass with the control needed for both daily-driven systems and competition-inspired builds.
At the core of the HD Velocity 10 is a carbon-fiber-enhanced non-pressed paper cone that balances strength and responsiveness for accurate low-frequency reproduction. A massive triple-stacked 315 oz magnet structure provides strong motor force, while the rigid die-cast aluminum basket with a blue finish maintains stability and cooling under high output.
The high-temperature 3.0-inch 4-layer voice coil is designed to handle sustained power levels up to 2200 watts RMS, resisting heat buildup during aggressive play. With a 1-ohm impedance, this subwoofer is ideal for maximizing output from high-power monoblock amplifiers. Whether installed in a compact ported enclosure or a high-output street system, the HD Velocity 10 delivers powerful, controlled bass with authority.
Features
- 10-inch high-performance subwoofer
- 1-Ohm impedance for maximum amplifier efficiency
- Carbon-fiber-reinforced non-pressed paper cone
- Triple-stacked 315 oz magnet motor structure
- High-temperature 3.0-inch 4-layer voice coil
- Die-cast aluminum basket with blue finish
- Designed for ported enclosures and high-output systems
Specifications
- Subwoofer Size: 10 inch
- Impedance: 1 Ohm
- RMS Power Handling: 2200 Watts
- Max Power Handling: 4400 Watts
- Sensitivity: 84.4 dB
- Voice Coil Diameter: 3.0 inches
- Voice Coil Type: 4-Layer High Temperature
- Basket Type: Die-Cast Aluminum
- Magnet Structure: Triple Magnet
- Magnet Weight: 315 oz
- Recommended Ported Enclosure Volume: 1.8 – 2.5 ft
- Cutout Diameter: 9.25 inches
- Mounting Depth: 7.72 inches
Thiele & Small Parameters
- Sd: 31.4
- BL (Tm): 11.791
- Qms: 4.788
- Qes: 0.301
- Qts: 0.283
- SPLo dB: 84.5
- Vas L: 11.297
- Cms: 82.113
- MMS g: 255.626
- MMd: 252.475
- Vd (L): 5.85
- Xmax mm: 12.5
Dimensions
- Total Diameter: 10.83"
- Mounting Diameter: 10.04"
- Cutout Diameter: 9.25"
- Baffle Depth: 0.75"
- Mounting Depth: 7.72"
- Total Depth: 9.25"
- Weight: 38 lbs
