- EXTREME POWER HANDLING: 12-inch subwoofer rated at 4700W RMS and 12,000W max power, engineered for high-output bass systems and competition-level builds
- DUAL 1-OHM VOICE COILS: Dual 1-ohm configuration allows flexible wiring options for powerful monoblock amplifier setups
- HEAVY-DUTY MOTOR DESIGN: Features a massive triple-stacked high-energy magnet structure for strong magnetic force and deep, controlled low-frequency output
- HIGH-TEMPERATURE VOICE COIL: 3.5" 8-layer flat-wire voice coil designed to handle sustained power levels with improved thermal stability
- LOW-DISTORTION CONE ASSEMBLY: Carbon cone with foam surround and carbon fiber dust cap provide rigidity, durability, and accurate bass response
- ADVANCED COOLING SYSTEM: Direct cooling T-yoke with black anodized treatment promotes efficient heat dissipation during extended high-power operation
- RIGID DIE-CAST BASKET: Green-textured die-cast aluminum basket offers structural strength and vibration resistance
- HEAVY-GAUGE CONNECTIONS: 4-gauge copper push terminals ensure secure, high-current power transfer

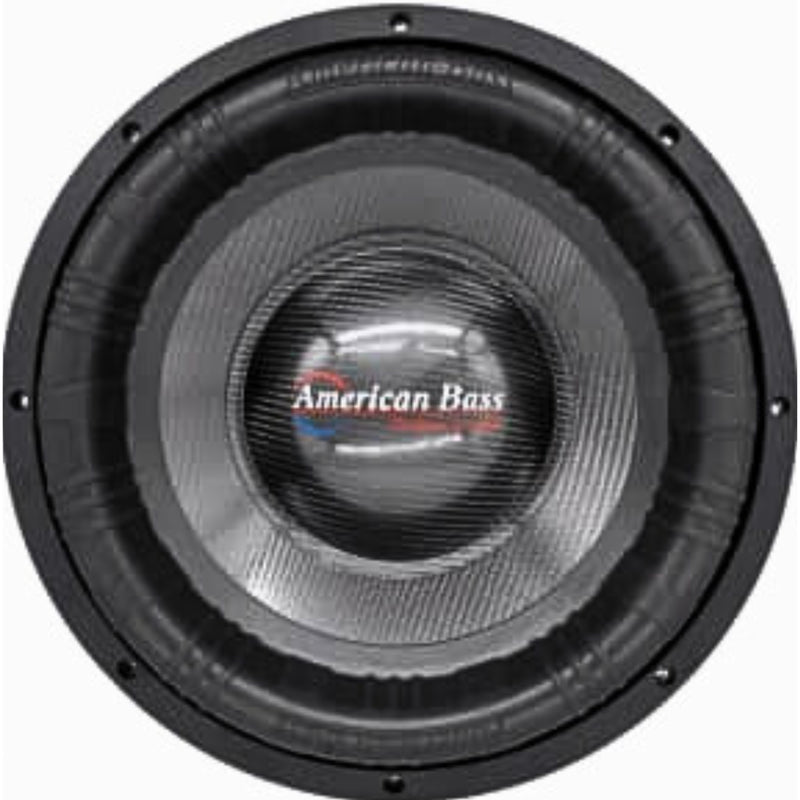

American Bass 12" Dual Voice Coil 1-Ohm 4700 Watt Subwoofer GODZILLA-12-D1
This Listing Includes:
- (1) American Bass 12" 1-Ohm GODZILLA-12-D1
The American Bass GODZILLA-12-D1 is a high-power 12-inch subwoofer engineered for extreme bass performance, durability, and long-term reliability in aggressive car audio systems. Built to handle serious power, this sub is designed for enthusiasts and competitors who demand deep, controlled low-frequency output without compromise.
At the core of the GODZILLA-12-D1 is a 3.5-inch 8-layer high-temperature flat-wire voice coil, allowing the subwoofer to manage sustained power levels while maintaining control and efficiency. Rated at 4700 watts RMS with a massive 12,000-watt maximum power handling, this subwoofer is built to withstand abuse and continue performing.

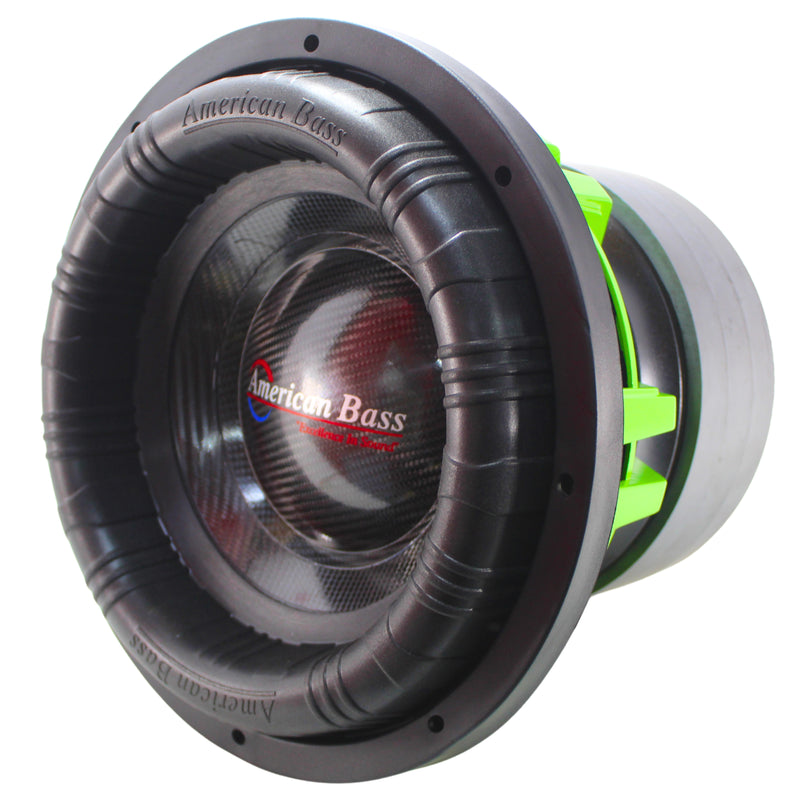

A carbon cone with foam surround and carbon fiber dust cap provides added rigidity while minimizing distortion at high excursion levels. The subwoofer’s motor structure features triple-stacked high-energy magnets, delivering strong magnetic force for authoritative low-end impact. A direct cooling T-yoke with black anodized treatment promotes efficient heat dissipation, helping prevent thermal overload during extended play.

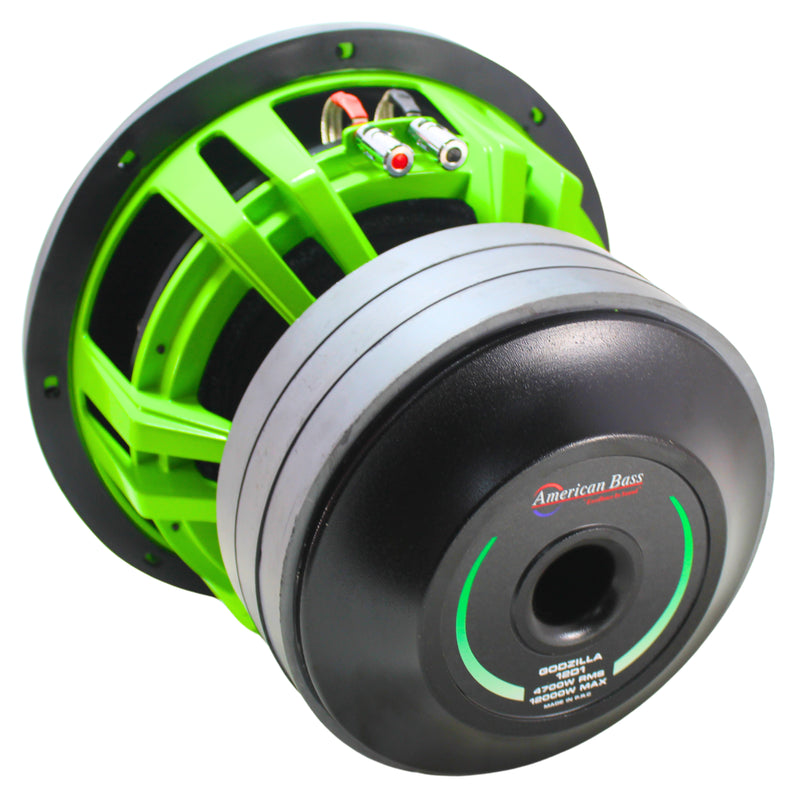

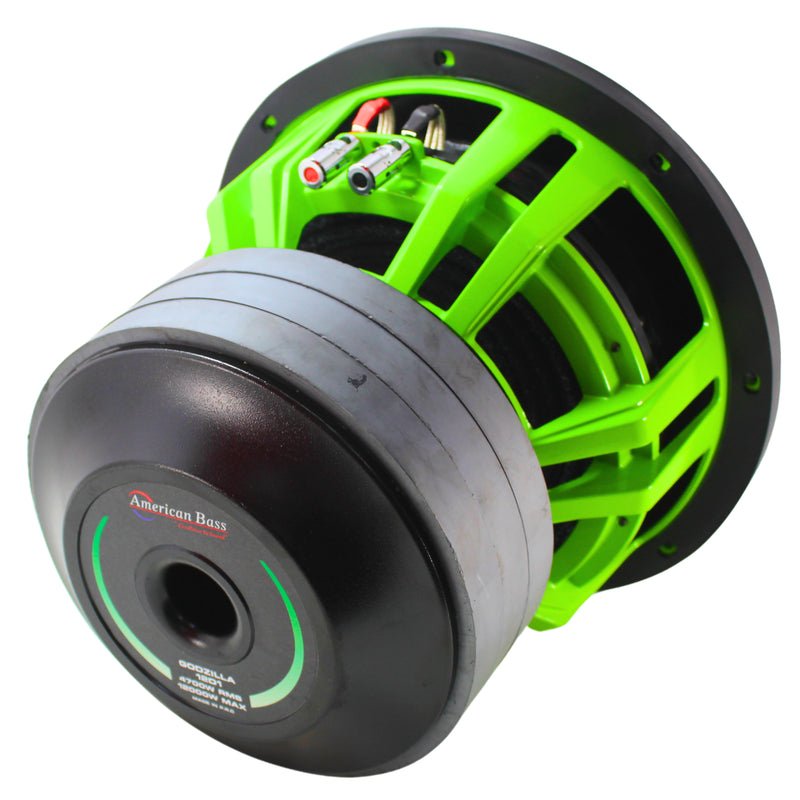

The green-textured die-cast aluminum basket adds both structural integrity and visual impact, while dual black spiders in a mirrored layout help maintain cone stability under heavy load. Heavy-duty 4-gauge copper push terminals ensure secure power transfer for high-current applications.
Optimized for ported enclosures, the GODZILLA-12-D1 is a serious subwoofer designed for street builds and competition systems where output, control, and durability are critical.
Features:
- 12" high-output subwoofer with dual 1-ohm voice coils
- 4700W RMS / 12,000W max power handling
- Green textured die-cast aluminum basket
- Carbon cone with foam surround for rigidity and control
- Carbon fiber dust cap
- 3.5" 8-layer high-temperature flat-wire voice coil
- Triple-stacked high-energy magnet motor
- Direct cooling T-yoke with black anodized treatment
- Dual mirrored black spiders for cone stability

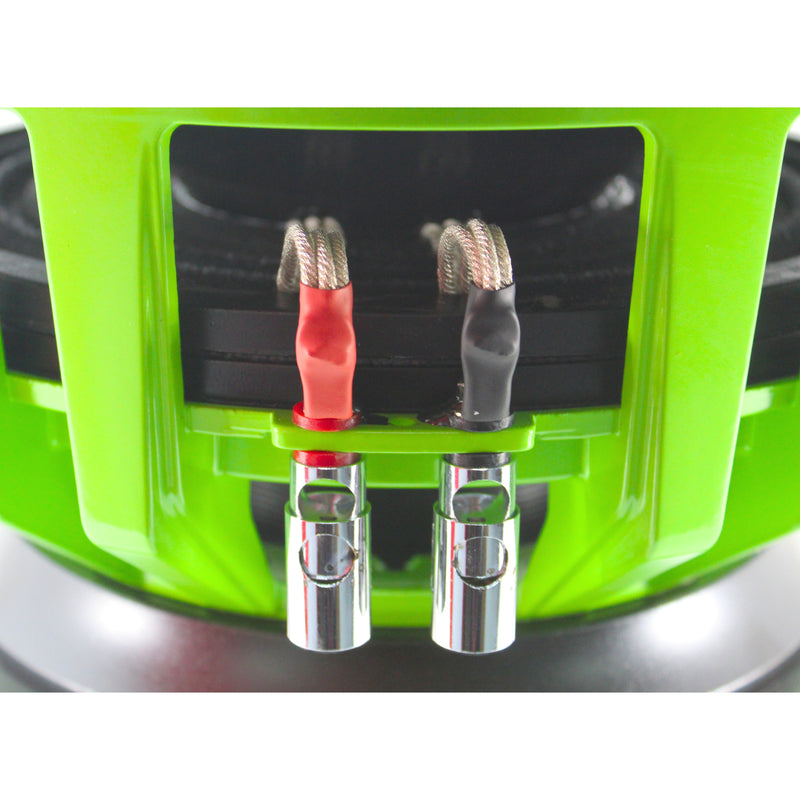

- Heavy-duty 4-gauge copper push terminals
- Designed for ported enclosure applications
Specifications:
- RMS Power Handling: 4700 Watts
- Maximum Power Handling: 12,000 Watts
- Impedance: Dual 1-Ohm
- Sensitivity: 81.7 dB
- Voice Coil Diameter: 3.5 inches
- Basket Type: Die-Cast Aluminum
- Magnet Structure: Triple-stacked high-energy magnets
- Recommended Enclosure Type: Ported
- Recommended Ported Box Volume: 2.75 ft
- Recommended Amplifier: American Bass Godfather 11D
Thielle & Small Peramitters:
- Sd: 490
- Md g: 150
- BL: 26
- Qms: 6.79
- Qes: 0.46
- Qts: 0.43
- No: 0.093
- SPL dB: 81.7
- Vas L: 8.7
- Cms: 25.67
- Krm: 119.1
- Erm: 0.619
- MMS g: 720.6
- MMd: 714.4
- Kxm: 119.1
- Exm: 0.61
- Xmax mm: 22.5
Dimensions:
- Overall Diameter: 12.99"
- Mounting Depth: 9.64"
- Overall Depth: 11.33"
- Magnet Diameter: 5.11"
