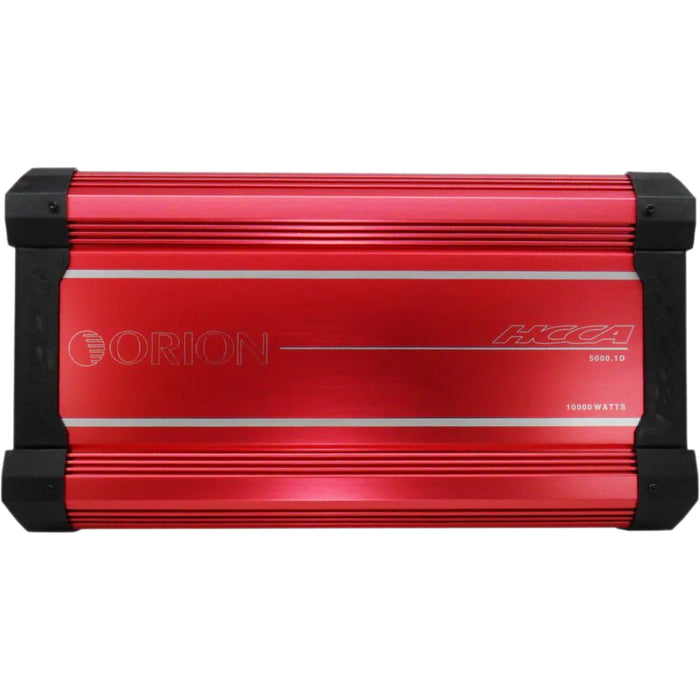

5KW RMS 1-Ohm Class-D Monoblock Amplifier ORION HCCA SPLX Series HCCA5000.1DSPLX

• 5KW RMS Power: Delivers a powerful 5000 Watts RMS at 1-Ohm, providing the muscle your system needs to perform at its best.
• Class-D Efficiency: Advanced Class-D technology ensures high efficiency with minimal heat generation, maximizing power output.
• Durable Design: Built with robust materials and heavy-duty terminals for reliable, long-lasting performance.
• Versatile Controls: Features a range of adjustable settings, including a 12/24dB per octave low-pass filter and a bass boost for precise sound tuning.
• Comprehensive Protection: Equipped with 4-way protection circuitry, including thermal, DC offset, short protection, and under/over voltage to safeguard your system.

5KW RMS 1-Ohm Class-D Monoblock Amplifier ORION HCCA SPLX Series HCCA5000.1DSPLX

This Listing Includes:

• (1) HCCA5000.1DSPLX Amplifier

Description:

Unleash Pure Power with the Orion HCCA SPLX Series 5KW Monoblock Amplifier!

Get ready to dominate the competition with the Orion HCCA SPLX Series 5KW RMS Class-D Monoblock Amplifier. Engineered for extreme performance, this amplifier delivers a relentless 5000 Watts of RMS power at 1-Ohm, ensuring your subwoofers hit with maximum impact. Built with high-quality components and advanced technology, the HCCA SPLX Series is designed for those who demand nothing less than the best in car audio. Whether you're pushing your system to its limits or seeking unmatched sound clarity, this amplifier delivers in every aspect.

Features:

• All MOSFET Power Supply & Output Stage: Ensures reliable and efficient power delivery with advanced MOSFET technology.


• Heavy Gauge, High-Current Custom Power and Speaker Terminals: Designed for maximum power transfer and durability.


• 12/24dB Per Octave Low-Pass Filter: Provides precise control over your sound with adjustable filtering.


• Includes Remote Gain Controller: Easily adjust your system’s gain from a distance.


• Low-Level and High-Level Balanced Inputs: Versatile input options for seamless integration with various setups.


• Infrasonic Filter: Protects your subwoofer by filtering out damaging low frequencies.


• Concealed Controls with Locking Top Panel: Orion's patented ESP design keeps controls hidden and secure.


• Digitally Programmed Input Voltage: Enables fast and accurate system setup for optimal performance.


• Input Sensitivity Lock-Out Mode: Prevents unwanted adjustments by locking out the tweakers.


• Turn-On Delay: Reduces the risk of speaker damage by delaying the initial power surge.


• Fault and Protection Monitoring: Includes 4-way protection: thermal, DC offset, short protection, and under/over voltage safeguarding your system.

Specifications:

• Frequency Response: 15Hz - 250Hz


• Low Pass Crossover: 40Hz - 300Hz


• Supply Voltage: 9 - 16V


• Amplifier Efficiency: >88%


• Damping Factor: 200dB


• Signal to Noise Ratio: >90dB


• T.H.D. & Noise: 0.5%


• Input Impedance: 24K Ohms


• Phase Shift: 0 - 180


• Bass Boost: 0-18dB Variable


• Subsonic Filter: 10Hz - 40Hz


• Variable Input Level Control: 0.2V - 6.0V


• Fuses: 500A recommended (not included)


• Dimensions (L x W x H): 20.47" x 11.89" x 3.15" (520 x 302 x 80mm)

Power Ratings:

• RMS Power @ 4 Ohms @ 0.5% THD+N: 2300W


• RMS Power @ 2 Ohms @ 0.5% THD+N: 3600W


• RMS Power @ 1 Ohm @ 0.5% THD+N: 5800W


• Bridged with Identical Amplifier: RMS Power @ 2 Ohms @ 0.5% THD+N: 11600W

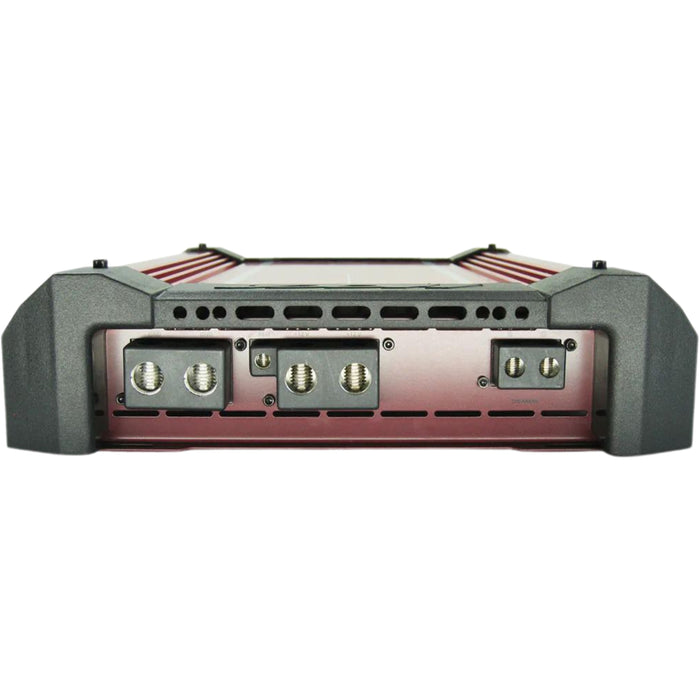

Power Terminal Management

• Positive Terminals: 3 x 0 AWG


• Negative Terminals: 3 x 0 AWG


• Remote Turn-On Signal: 10 AWG


• Speaker Output Terminals: 4 AWG
