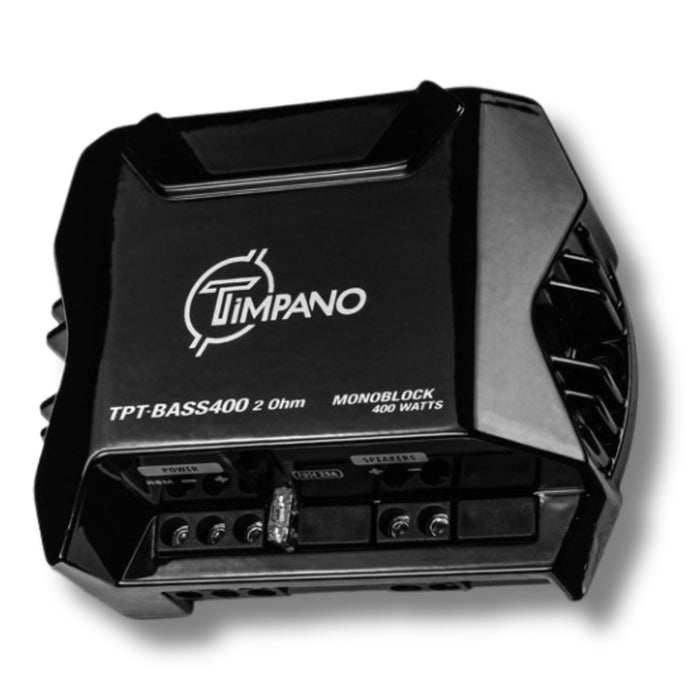

400W 2-Ohm Monoblock Class D Car Audio Bass Amplifier Timpano TPT-BASS400-2

• Powers up to 400 Watts RMS with high efficiency, delivering more power while consuming less battery.
• Built-in variable crossover filters with SUBSONIC (HPF) filter (5 to 35Hz) and LPF (35 to 250Hz) for easy tuning.
• Adjustable BASS BOOST feature up to +15 dB and frequency dial for precise subwoofer setup.
• Compact design utilizing digital full bridge class D Brazilian technology with a high-speed MOSFET power supply.
• High-level inputs with signal auto turn-on feature, eliminating the need for remote turn-on wiring.

400W 2-Ohm Monoblock Class D Car Audio Bass Amplifier Timpano TPT-BASS400-2

This Listing Includes:

• (1) Monoblock Class D Car Audio Bass Amplifier Timpano TPT-BASS400-2

Description:

The BASS Series from Timpano combines half-bridge amplifier engineering with the newest semiconductor technologies. Utilizing them, higher power-to-footprint ratios are possible, and the more compact chassis created for this technology does not degrade the output power or stability. To handle even the most demanding bass sessions, this amplifier comes with sturdy heatsink, heavy duty power and ground inputs, high current PCBs, and premium internal components.

Features:

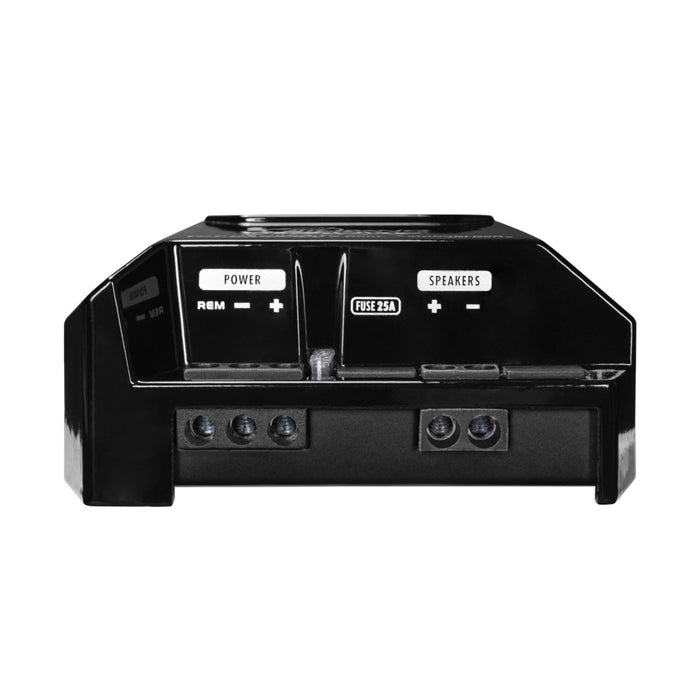

• POWER: This monoblock Car Audio amplifier is designed to run a single dual 4 Ohm subwoofer powering up to 400 Watts of pure RMS power. Its high efficiency provides more power with less battery consumption.

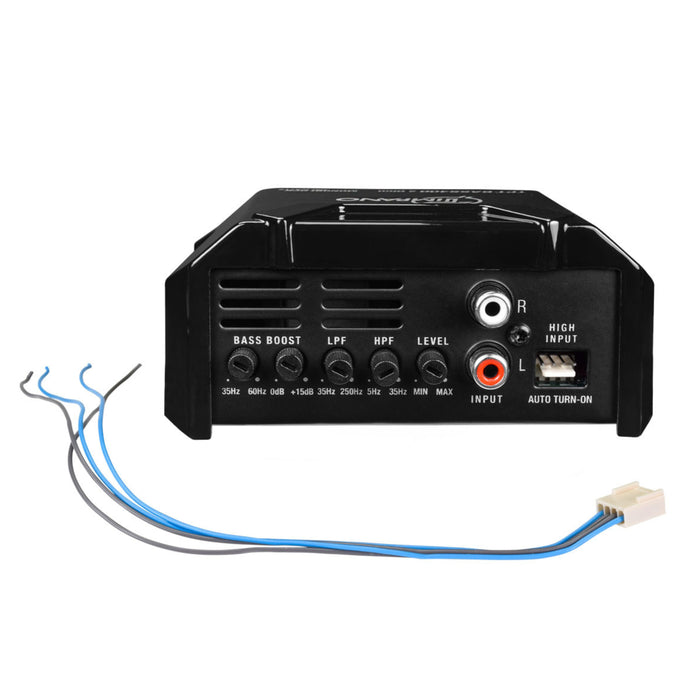

• FEATURES: Heavy duty power and speakers terminals. Built-in variable crossover filters for easy tuning! Set setting for your subwoofer with a SUBSONIC (HPF) filter 5 to 35Hz and LPF 35 to 250Hz without a need for an external crossover or DSP. Fine tune it according to your box with variable frequency dial and BASS BOOST at choose frequency up to +15 dB. Level controls to adjust the amount of signal that is coming into the amplifier from your signal source.


• DESIGN: Digital full bridge class D Brazilian technology allows this car audio amplifier to have a small footprint by integrating a high-speed mosfet power supply with top of line transistors to ensure performance in a small heat sink without compromising performance. Dimensions: 3.93†depth x 5.02†width x 2.00†height


• HIGH LEVEL INPUTS with SIGNAL AUTO TURN ON: Attaches directly to systems using speaker-level inputs with signal auto turn-on to eliminate remote turn-on wiring

Specifications:

• Number of Channels: 1


• 400 Watts RMS Power at 2 Ohm 14.4Volts


• 210 Watts RMS Power at 4 Ohm 14.4 Volts


• Supply Voltage: 9V ~ 15V


• Frequency Response: 5Hz ~ 250KHz


• Crossover Low Pass Filter: 35Hz ~ 250KHz


• Crossover (HPF) Subsonic Filter: 5Hz ~ 35Hz


• Bass Boost Freq: 35Hz ~ 60Hz


• Bass Boost Gain: 0 dB ~ +15 dB


• Input Impedance: RCA 10k Ohm / Wire 1K Ohm


• Signal to Noise: > 90 dB


• Impedance Output: 2 Ohm


• Musical Consumption: 17A


• Bass Consumption: 43A

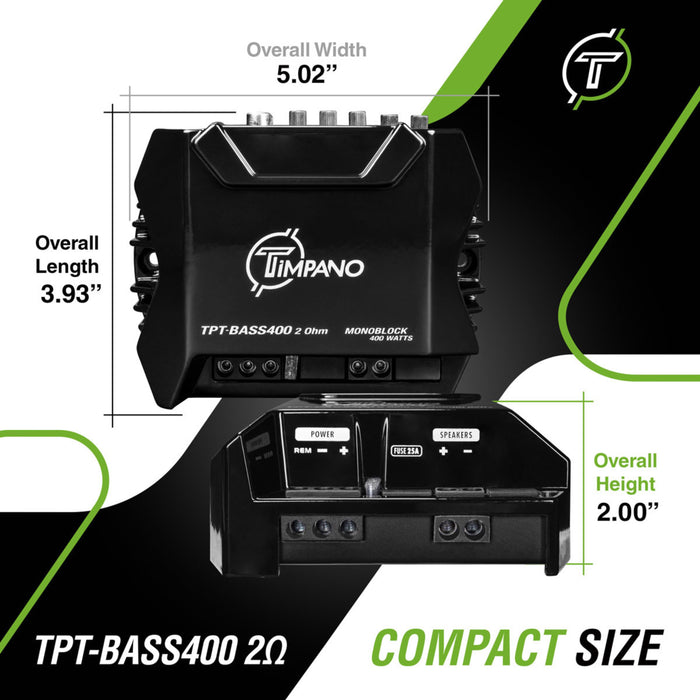

Dimensions (in inches):

• Length: 3.93"


• Width: 5.02"


• Height: 2.00"


• Weight: 1.11 lbs

Before Installing:

You must follow the instructions for the product’s installation and connections to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:

• Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to the equipment connected to the amplifier;


• Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference;


• Always use 100% Copper cables and good quality connectors. This guarantees the sound's quality and fidelity;


• To avoid damaging the cables, make sure that they do not touch sharp metal edges.


• Important: Use a 40A fuse 12 inches away from the battery as a safety precaution
