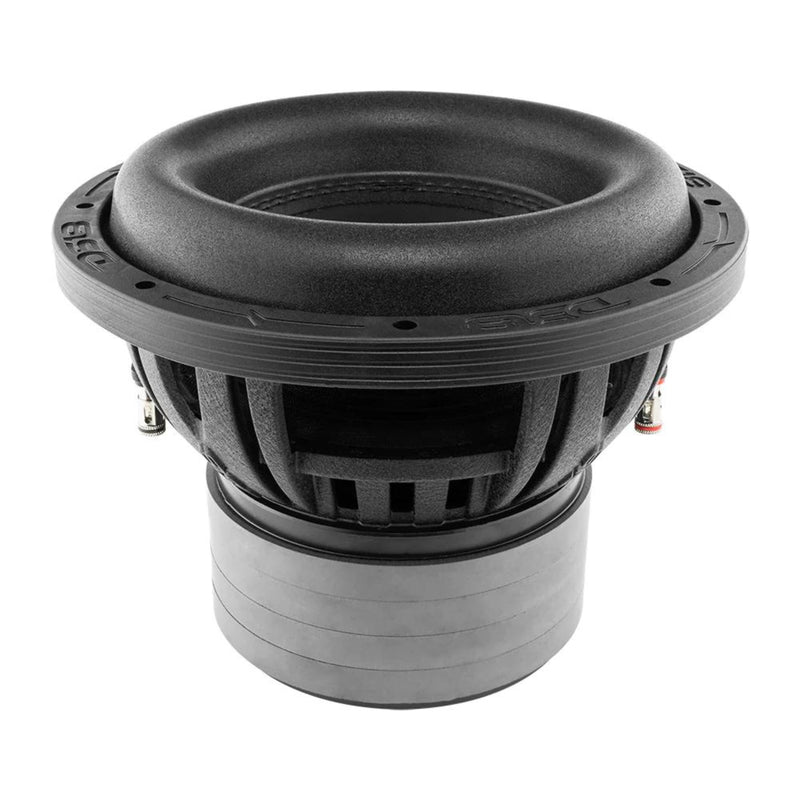

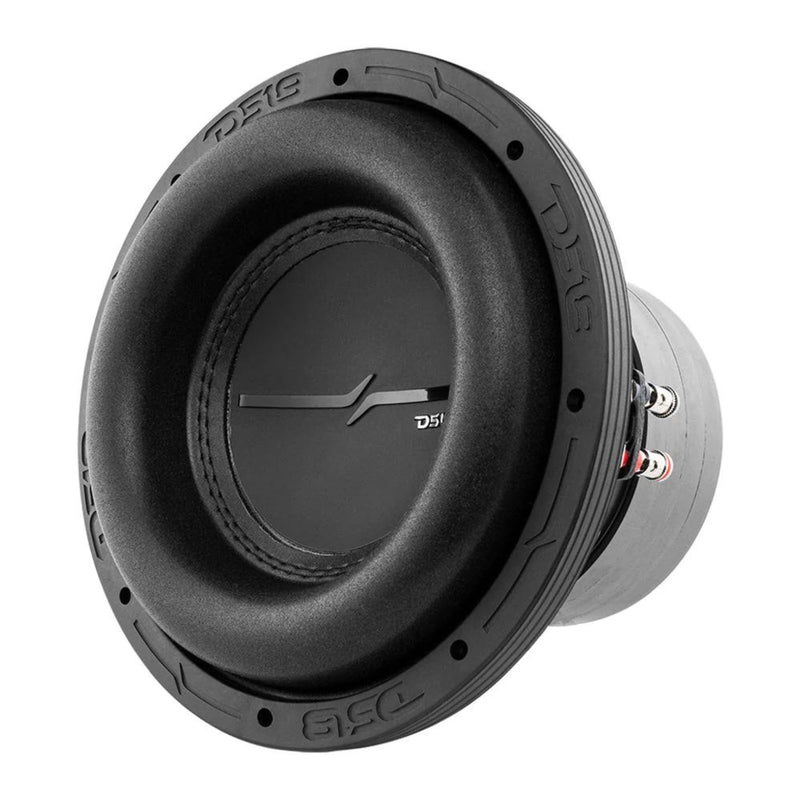

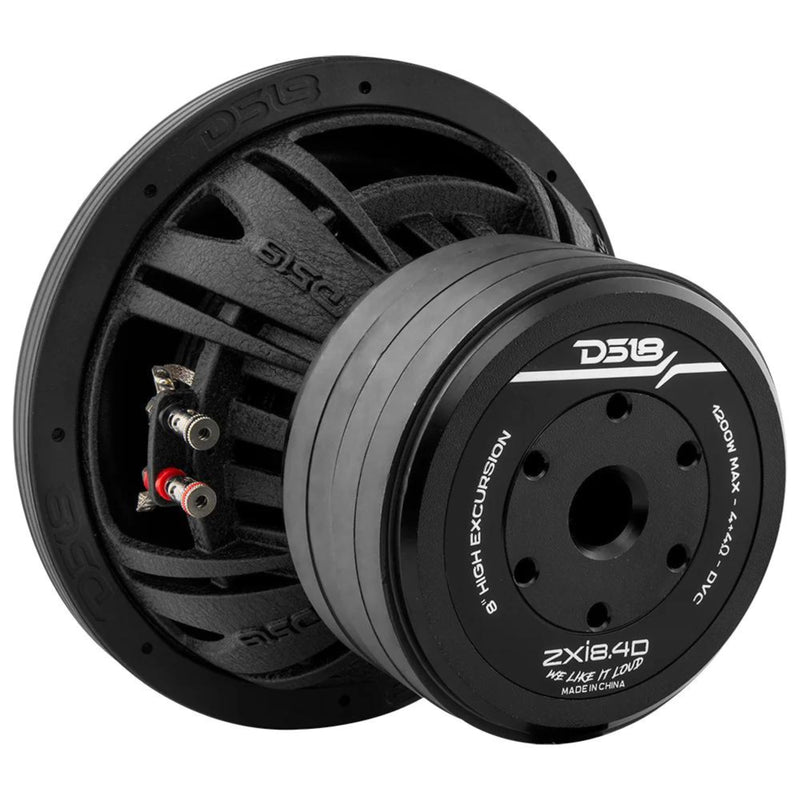

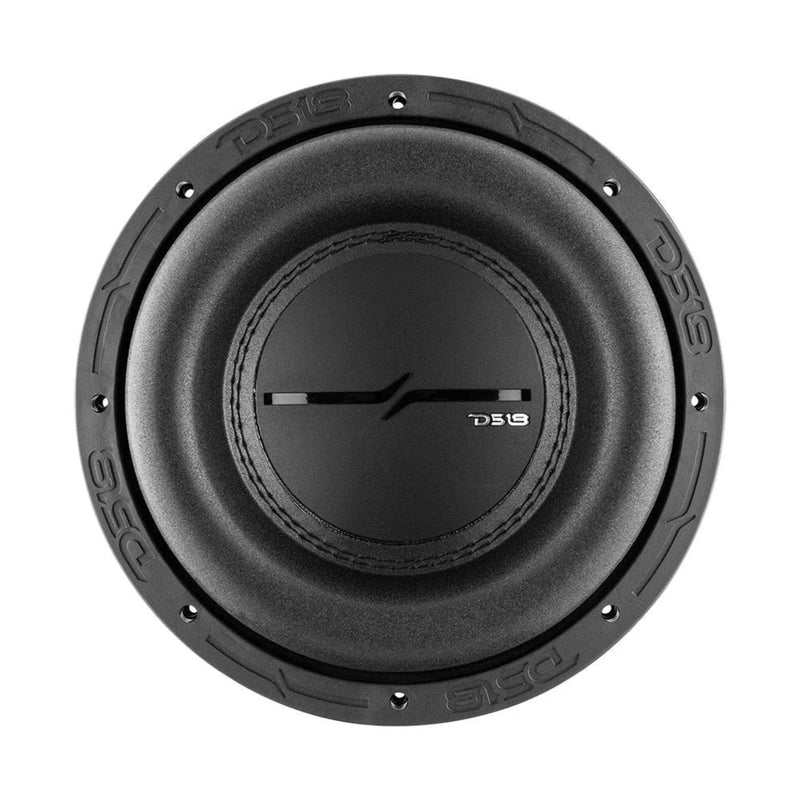

DS18 ZXI Quad Stacked 8" 600 Watt RMS Dual 4-Ohm 2" Voice Coil Subwoofer ZXI8.4D

• DS18 has the perfect subwoofer to satisfy all your bass head needs in the newly designed for the ZXI8.4D high excursion subwoofer. This monster sub packs a 2 inch coil made to withstand high amounts of power with the utmost efficiency while producing thunderous distortion free bass.
• This sub has a low FS so it can be used in large boxes with lower than normal tuning. Not only will this subwoofer slay the lows, it is versatile enough to also play higher frequencies in the bass zone of sub frequencies.
• The ZXI Car Audio subline is a great high excursion line of subwoofers that both handle great power and give you smooth clean bass while playing ultra low frequencies. These subs work great in both sealed and ported boxes giving you many options for placement in any vehicle.
• This 8 inch model comes dual 4 ohm and comes with a 2 inch voice coil that handles 600w RMS and 1200w max power.
• The large foam surround and pressed paper cone works greatly together to deliver smooth crisp bass that can be heard strongly throughout the vehicle giving you an amazing bass experience.

DS18 ZXI Quad Stacked 8" 600 Watt RMS Dual 4-Ohm 2" Voice Coil Subwoofer ZXI8.4D

This listing includes:

• (1) DS18 ZXI 8" Dual 4-Ohm Subwoofer

Experience thunderous bass like never before with the DS18 ZXI8.4D 8" Quad Stacked Subwoofer. Renowned for its high excursion capabilities, this subwoofer handles up to 1200W of maximum power, delivering smooth ultra-low frequency responses and exceptional audio performance. Whether you prefer sealed or ported boxes, the ZXI8.4D excels in both, offering flexibility and optimal placement in any vehicle. Elevate your audio experience with crisp, smooth bass that permeates every corner of your vehicle.

Specifications:

• Nominal Diameter: 8" / 203.2mm


• Nominal Impedance: Dual 4 Ohm


• RMS Power Handling: 600 Watts


• Maximum Power Handling: 1200 Watts


• Sensitivity (1w/1m): 1200 Watts


• Frequency Response: 25Hz - 880Hz


• Recommended Lo-Pass Crossover: 90Hz


• Voice Coil Diameter: 2" / 50.8mm


• Voice Coil Former Material: Black Aluminum


• Winding Material: CCAW


• Cone Material: Non-Pressed Paper


• Dust Cap Material: PPI


• Surround Material: Foam


• Basket Material: Aluminum


• Basket Color/Finish: Black Sandblasted


• Magnet Material: Ferrite


• Magnet Weight: 104 Oz (4 x 26 Oz)


• Displacement Volume: 1.02L / 0.036ft

Thiele & Small Parameters:

• Equivalent Volume Vas: 6.75L / 0.238ft3


• Free Air Resonance Fs: 45Hz


• Mechanical Factor Qms: 5.318


• Electrical Factor Qes: 0.791


• Total Factor Qts: 0.689


• Moving Mass Mms: 87.65g


• Compliance Cms: 0.135mm/N


• Bl Factor Bl: 8.073


• Voice Coil Inductance Le: 0.476 mH


• Diaphragm Area Sd: 188.69cm2


• DC Resistance Re: 4.0+4.0 ohms


• Efficiency Bandwidth Product EBP: 58.4

Recommended Enclosures:

• Sealed Internal Volume: 17L / 0.6ft3


• Sealed Box Output Response F3: 50Hz


• Ported Internal Volume: 28.3L / 1ft3


• Port Size *Square (W x H x Long): 1.75" x 7.99" x 14.67" / 44.5 x 203 x 372.7mm


• Port Tuning Frequency FB: 35Hz


• Ported Box Output Response F3: 28Hz

Measurements:

• Overall Diameter: 8.58" / 218mm


• Overall Depth: 6.83" / 173.5mm


• Front Mount Baffle Cutout: 7.31" / 185.8mm


• Mounting Depth: 5.51" / 140mm


• Motor Diameter: 5.27" / 134mm


• Gross Single Unit Weight: 14 lb
