- GTX124: Watts RMS: 700W
- GTX124: Peak Power: 1400W
- E3 Amplifier: PEAK Power: 2800w x 1
- E3 Amplifier: Min Impedance: 1 Ohm
Massive Car Audio 2x 12" Subwoofer 2800W DVC 4 Ohm & 2800W Monoblock Amplifier
Massive Audio's GTX subs use tight red stitching that's sewn through a UV-treated non-pressed paper cone onto an EROM foam surround. Then it's bonded to a heavy gauge steel basket that's bolted to double stacked high flux Y30 70-150oz Strontium ferrite magnets with a 10mm top plate. Then everything dances on a springy poly cotton spider with high powered woven tinsel leads that connect to spring-loaded 5-way binding nickel-plated speaker connectors. These woofers scream sound quality and truly represent Massive Audio's commitment to value and performance.
NANO EDGE Series Amplifiers use a famous Nano Block Military speck circuit board and "N" drive MOSFET power supplies to insure performance but they now have several new cutting-edge features like RCA inputs that can take RCA or Speaker levels at up to 10 Volts in! This built-in money-saving OEM line converter is found in every "EDGE" model, and every E3 model uses a DC off-set music sensing system to activate the ATO (Auto Turn On).

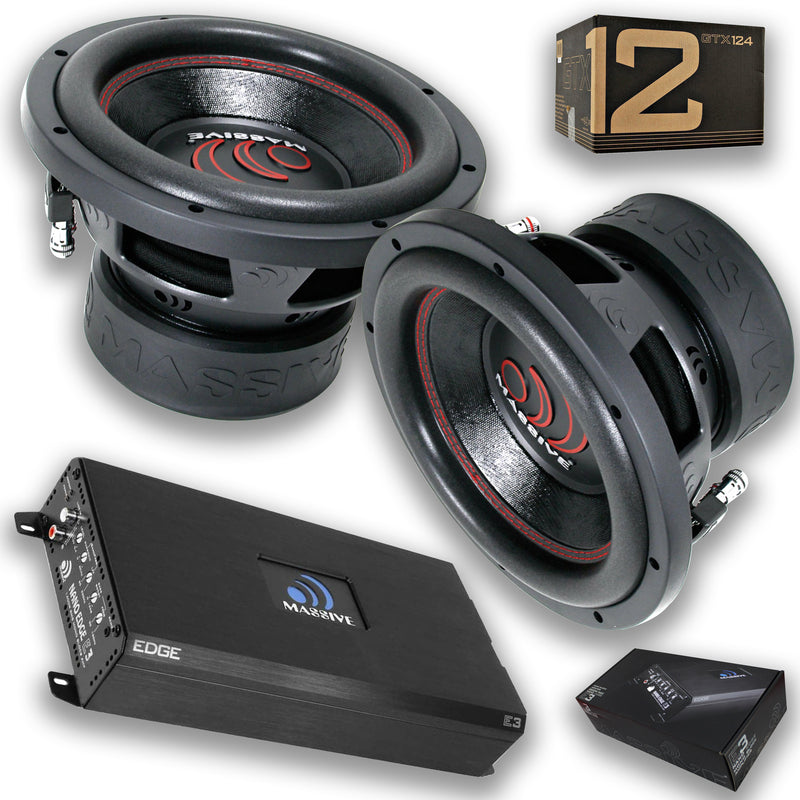

This listing includes:
(2) Massive Audio 12" Subwoofer GTX124
(1) Massive Audio Monoblock Amplifier E3

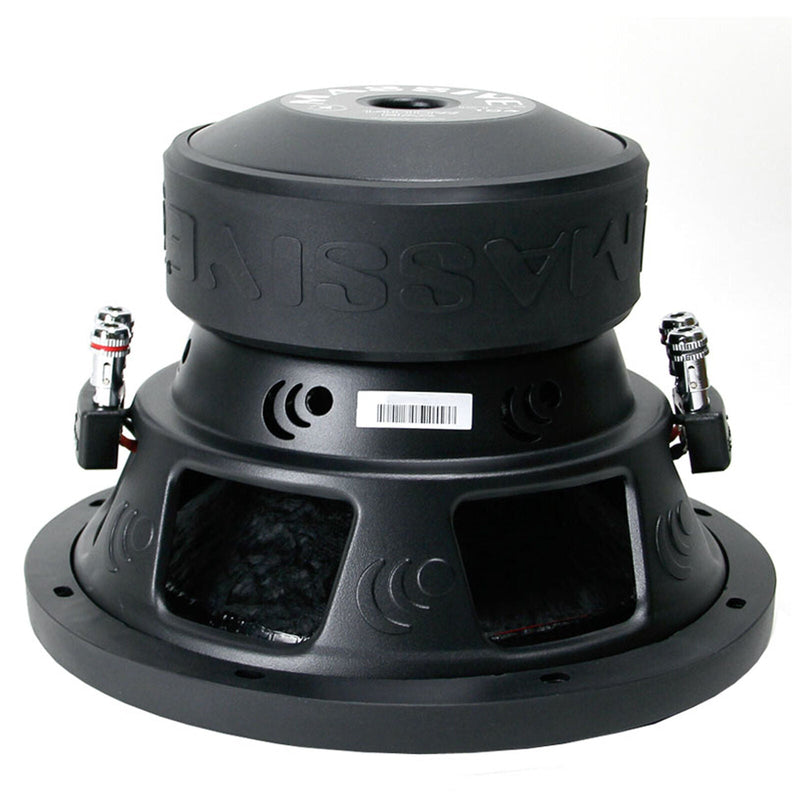

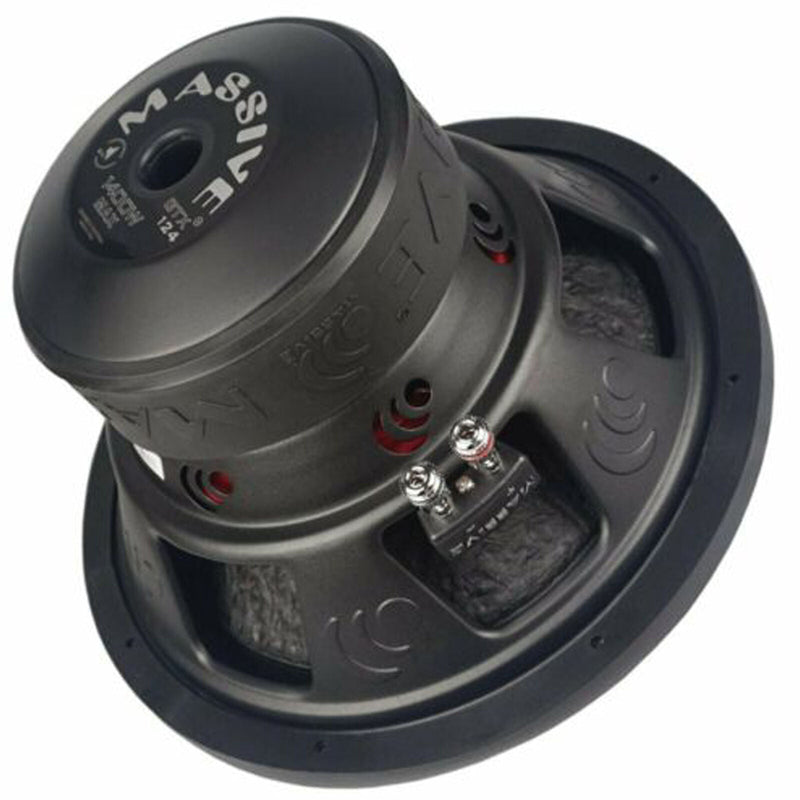

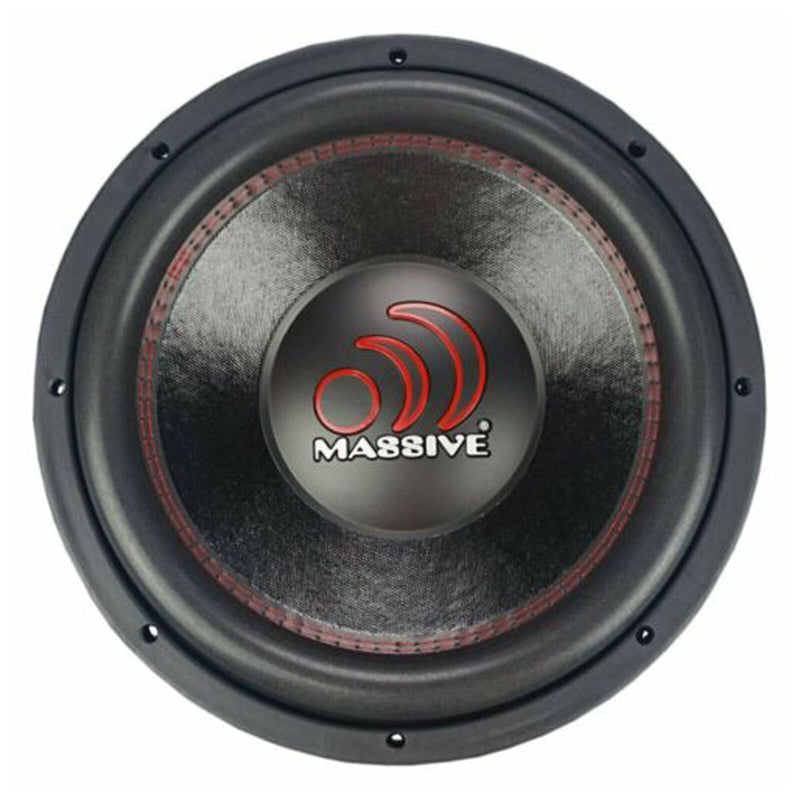

Features for GTX124 Subwoofer:
- Heavy gauge Steel Basket with Industrial Texture Painting
- Dual Stacked High Flux Y30 120oz Strontium Ferrite Magnets
- Dual Impedance / 2.5" 4 Layer Hi-Temp Voice Coil
- Poly Cotton Spider with Woven Round Tinsel Leads
- UV Treated / Non-Pressed Paper Cone with EROM Foam Surround
- Round Shape PP Vacuum Dust Cap
- 10mm Top Plate
- Customized Rubber Gasket & Magnet Boot
SPECIFICATIONS PER SUBWOOFER:
Size: 12"
Watts RMS: 700W
Peak Power: 1400W
Cone: UV Treated / Non-Pressed Paper
Voice Coil: 2.5" Dual 4 Ohm
Surround: EROM Foam
Magnet: 120oz
Terminals: 5 Way Binding Push Terminals
Basket: Heavy Gauge Steel
Tinsel Leads: Woven Round
X-Max: 15mm + 10mm top plate
SPL: 87.9 dB
FS: 40.2Hz
Ported Box: 14"H x 16"D x 16"W / 14.05 sq. in. Port Area
Sealed Box: 1.62 ft3

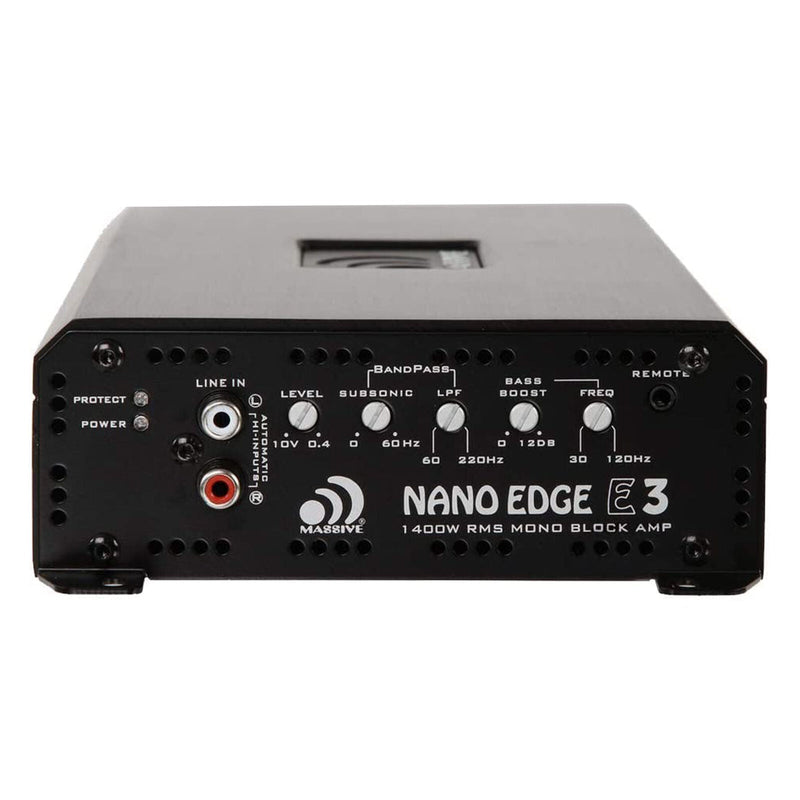

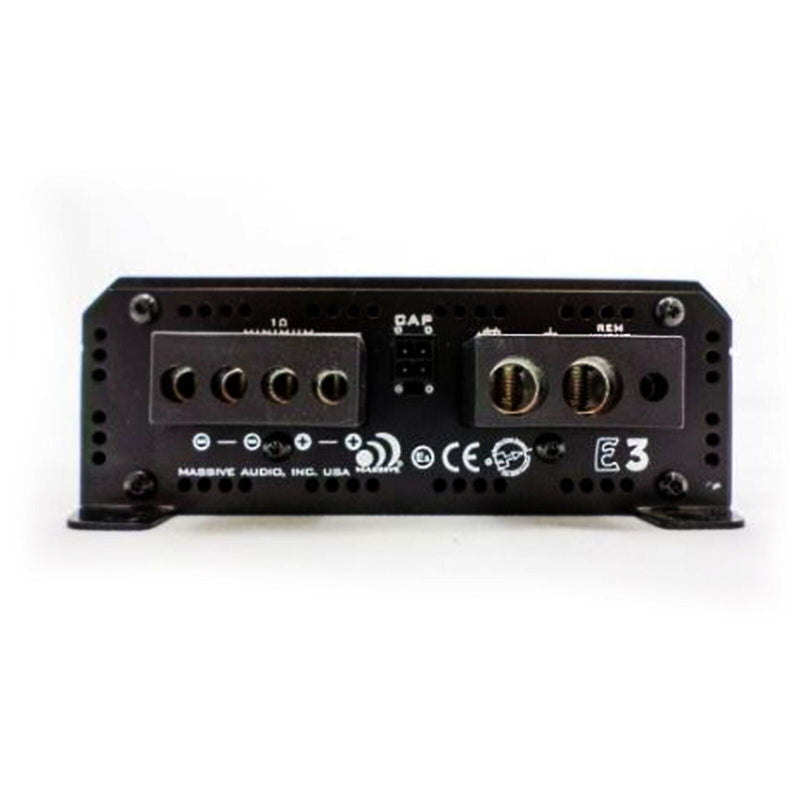

Features for E3 Amplifier:
- Built-In OEM Line Converter
- High Power in Extremely Small Heat Sink
- Mil-Spec Double Sided PCB with SMD Parts
- Built-in Noise Reduction Circuitry
- Full MOSFET with High-Grade Switching Devices
- Regulated Power Supply & Dual Output Voltage
- CTA-2006 Compliant
- Built-in Auto Sensing Turn-on via Hi-Input
- 12v Remote Output for External Devices
- 0~12dB Variable Bass Boost
- Next-Gen Advanced 5 Way Protection
AMPLIFIER SPECIFICATIONS:
RMS Power: 1400w x 1
PEAK Power: 2800w x 1
RMS @ 2 Ohms: 700w x 1
Bridged RMS: n/a
Min Impedance: 1 Ohm
Min Ohm Bridged: n/a
THD: Less Than 0.3% @ 4 Ohm
S/N: More Than 80 dB
Max Voltage: 15v
Max RCA Voltage: 10v
Freq. Response: 10Hz - 220Hz
Dimensions: 11.1 (in) x 5.9 (in) x 2.1 (in)
