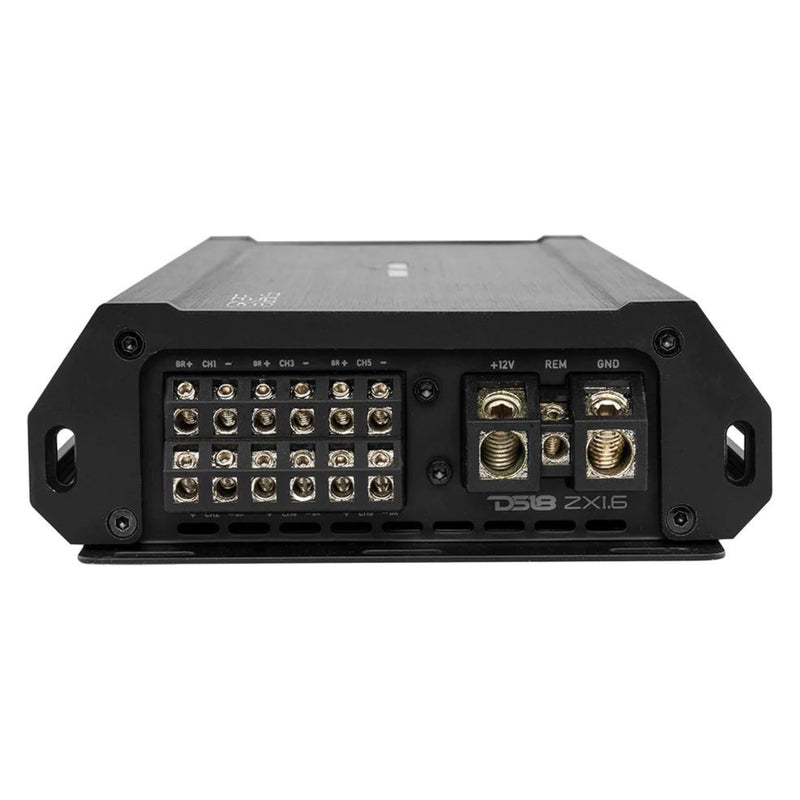

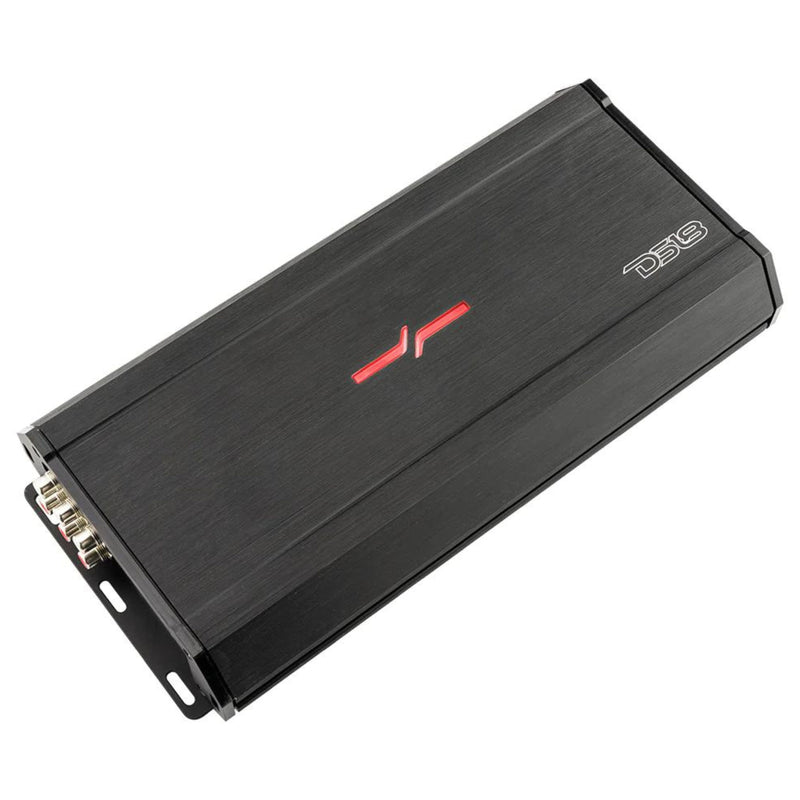

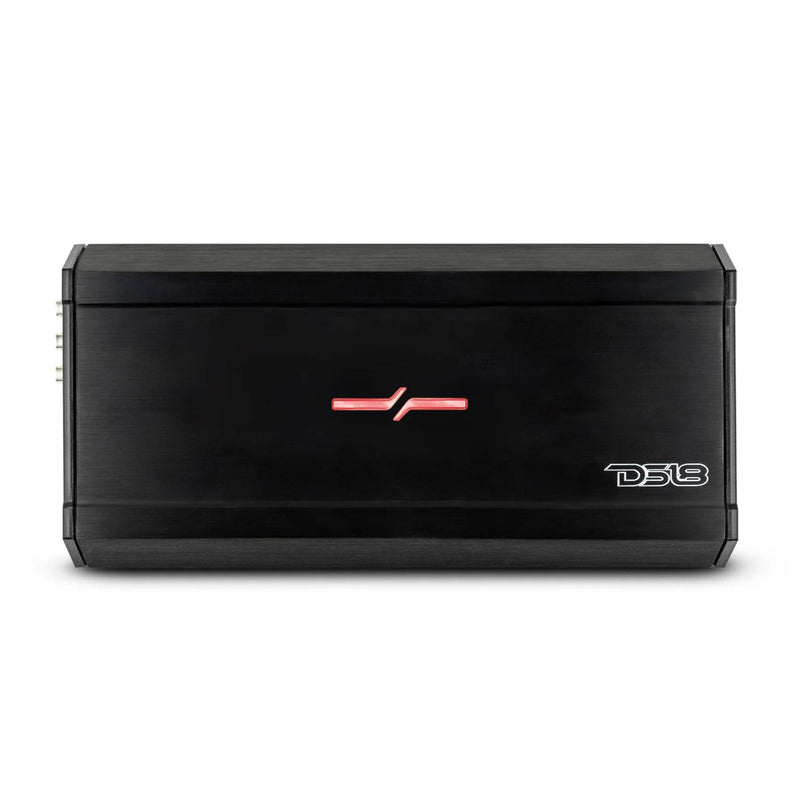

DS18 ELITE ZXI.6 Full Range 6 Channel 200 Watt RMS Class D Amplifier

• POWERFUL VERSATILITY - The ZXI.6 is one of the most versatile amplifiers in our catalog: this Full-Range 6-Channel Amplifier outputs enough power to supercharge any powerful competitive or casual sound system!
• HIGH-END POWER - Built from top of the line components (Block Style Terminals, Fully Variable Crossover, Platinum Finish Connections, and High Quality Protection Circuitry) this amplifier is guaranteed to deliver insane quantities of RMS Power on demand!
• COMPACT POWERHOUSE - As a Class D amplifier, the ZXI.6 uses power transformers significantly smaller than your average amplifier, making it the perfect size for any vehicle’s custom build: but, what it lacks in size it makes up for in power.
• IMPRESSIVE OUTPUT - The ZXI.6 handles 200W x 6CH @ 4 OHM; 320W x 6CH @ 2 OHM; and 640W x 3CH @ 4 OHM Bridge of RMS Power
• HIGH QUALITY PERFORMANCE - Get top-notch connectivity and performance with the high-end ZXI.6 amplifier, featuring advanced protection circuitry, adjustable filters and phase switch, and platinum finish connections for corrosion resistance and optimal connectivity, making it the perfect choice for any custom sound system installation

DS18 ELITE 6-Ch 5400W Peak Class-D Full Range Amplifier ZXI.6

This listing includes:

• (1) DS18 ELITE ZXI.6 Amplifier

Years of knowledge and experience has gone into the development of the ZXI amplifier series!

As one of DS18's best selling lines, it’s only right they honor it with an EXTREME upgrade!

The ZXI.6 is one of the most versatile amplifiers in DS18s catalog: this Full-Range 6-Channel Amplifier outputs enough power to supercharge any powerful competitive or casual sound system!

Built from top of the line components (Block Style Terminals, Fully Variable Crossover, Platinum Finish Connections, and High Quality Protection Circuitry) this amplifier is guaranteed to deliver insane quantities of RMS Power on demand!

As a Class D amplifier, the ZXI.6 uses power transformers significantly smaller than your average amplifier, making it the perfect size for any vehicle’s custom build: but, what it lacks in size it makes up for in power.

The ZXI.6 handles 200W x 6CH @ 4 OHM; 320W x 6CH @ 2 OHM; and 640W x 3CH @ 4 OHM Bridge of RMS Power.

Features:

• Platinum finish connections that resist corrosion


• Fully Variable Crossovers


• Protection Circuitry against Overload, Short Circuit, Thermal, Low Voltage, High Voltage, and Reverse Polarity


• Filters are included so you can adjust the high pass and low pass filters so your speakers perform at their best.


• 0 to 180 degree phase switch is included for more complex systems that need the phase reversed.


• Fuses included on the amplifier for easy access and amp circuitry protection.


• The terminals are stainless and use Allen keys to tighten for the best connectivity possible.

POWER

• Total Watts (Peak): 5800W


• RMS Power @ 4 ohm 6 x 200W


• RMS Power @ 2 ohm 6 x 320W


• RMS Power @ 4 ohm Bridge 3 x 640W

AUDIO

• Frequency Response: 20Hz-20KHz


• Signal to Noise Ratio: >90dB


• Efficiency @ 4ohm: >85%


• Damping Factor: >200


• Total Harmonic Distortion (THD): <0.3%


• Low Level Input Range: 0.2 - 6v


• High Level Input: No


• Selectable X-Over: LPF/FULL/HPF


• X-Over Filter Range: 50Hz-5KHz


• Bass Boost Range: No


• Bass Boost Frequency: No


• Infrasonic Filter: No


• Phase Selector: No

FEATURES

• Amplifier Class: Digital


• Amplifier Type: Stereo Full Range


• Number of Channels: 6


• Minimum Impedance: 2 ohm (Stereo) / 4 ohm (Bridge)


• Led Indicator: Power/Protection/Clip


• Power Input Terminal Size: 4ga


• Fuse Size: 160A (External)


• Remote Level Control: No


• Cooling Fan: No


• Voltmeter : No


• Thermal Protection: Yes (>160F / 71C)


• Over-Load Protection: Yes


• DC Output Protection: Yes


• Short Circuit Output Protection: Yes


• Voltage Input Protection: Yes


• Clipping Protection : Yes


• Body Color / Finish: Black Aluminum Brush

MEASUREMENT

• Overall Length: 12.2"


• Overall Wide: 5.66"


• Overall Height: 1.9"


• Heatsink Length: 11.42"


• Gross Single Unit Weight: 6 lb
