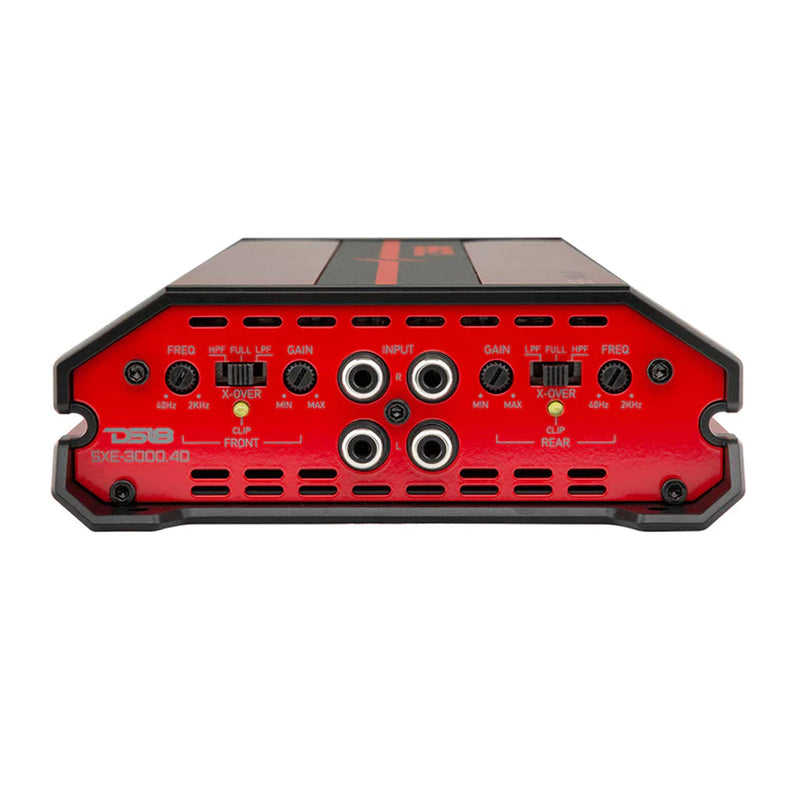

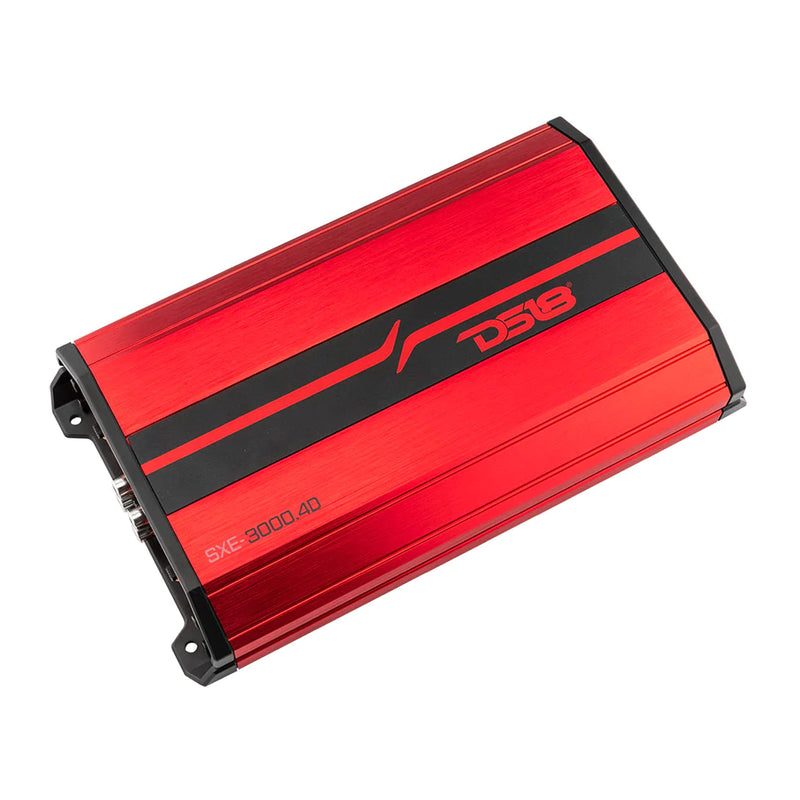

DS18 Car Audio Full Range 4 Channel 3000W Amplifier Class D Red SXE-3000.4D-RD

• Compact size for easy installation anywhere

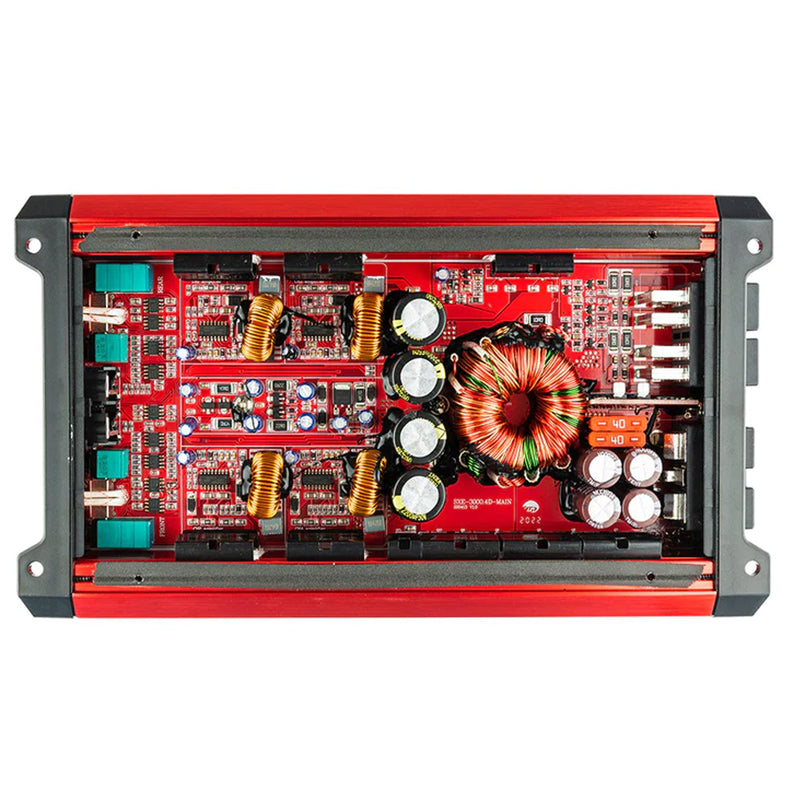

• Stable Two or Four Layer Traced PCB Design
• Audio Precision Quality Control Verification
• Full Adjustable HP/LP @ 12dB/oct Crossover
• Various Forms of Electronic Protection

DS18 Car Audio Full Range 4 Channel 3000W Amplifier Class D SXE-3000.4D-RD

This listing includes :

• (1) Red Full Range 4 Channel 3000W Amplifier SXE-3000.4D-RD

DS18s SXE series of amps was designed for users looking for an extreme increase to the quality of music reproduced by their vehicle. The SXE-3000.4D guarantees your sound systems speakers perform at their peaks on every use.

The SXE series of amplifier gives users the ability to tailor the audio reproduced by their vehicle to their personal listening preferences through the use of its fully variable crossover, adjustable gain input sensitivity, and multi-channel amplifier design: everything you need to take control of your listening experience.

As a Class D amplifier, the SXE series uses power transformers significantly smaller than your average amplifier, making it the perfect size for any vehicles custom build: but, what it lacks in size it makes up for in power. The SXE-3000.4D has a power output of 500W x 2 CH bridged at 4-ohms, 320W x 4 CH at 2-ohms, 200W x 4 CH at 4-ohms: perfect power settings to supercharge any custom build.

POWER SPECIFICATIONS :

• Total Watts (Peak): 3000W


• RMS Power @ 4 ohms: 4 x 200W


• RMS Power @ 2 ohms: 4 x 320W


• RMS Power @ 4 ohms Bridge: 2 x 500W

AUDIO SPECIFICATIONS:

• Frequency Response: 10Hz-20KHz


• Signal to Noise Ratio: 90dB


• Efficiency @ 4 ohms: 88%


• Damping Factor: 140


• Input Impedance: 20k


• Channel Separation: 45dB


• Total Harmonic Distortion (THD): 0.05%


• Low Level Input Range: 200mV-5V


• Selectable X-Over: HPF/FULL/LPF


• X-Over Filter Range: 40Hz-2KHz

FEATURES:

• Amplifier Class: Digital (D)


• Amplifier Type: Stereo Full Range


• Number of Channels: 4


• Minimum Impedance: 2 Ohms Stereo / 4 Ohms Bridge


• Led Indicator: Power/Protect/Clip

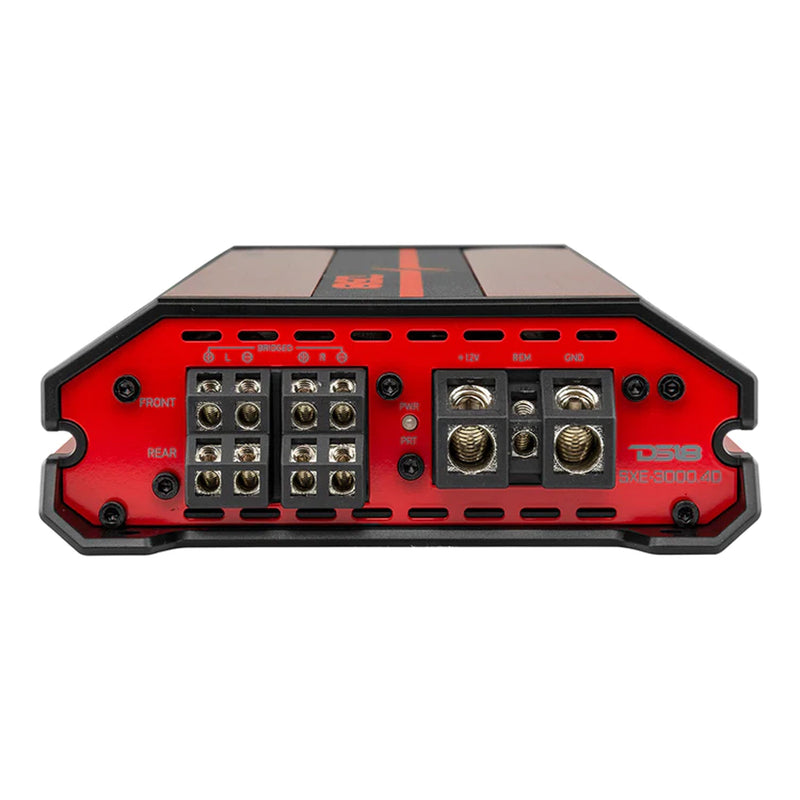

• Power Input Terminal Size: 4Ga


• Fuse Size: 2 x 40A (80A)


• Thermal Protection: Yes (80)


• Over-Load Protection: Yes


• DC Output Protection: Yes


• Short Circuit Output Protection: Yes


• Voltage Input Protection: Yes (16.5v)


• Clipping Protection: Yes


• Body Color / Finish: Red / Black Brushed Aluminum

MEASUREMENT:

• Overall Length: 9.8" / 249.3mm


• Overall Wide: 5.5" / 140mm


• Overall Height: 1.8" / 48mm


• Heatsink Length: 8.34" / 212mm


• Gross Single Unit Weight 1.86Kg
