- 2500W Max Power – Pushes serious wattage to power your full soundstage
- Full-Range Class D – Great for mids, highs, or full-range door speakers
- Built-in Crossovers – Includes HPF/LPF at 90Hz for easy tuning
- Bridgeable Flexibility – Bridge to 2 channels for 460W x 2 at 4 ohm
- Compact Footprint – Fits under seats or tight installs, with clean pro looks

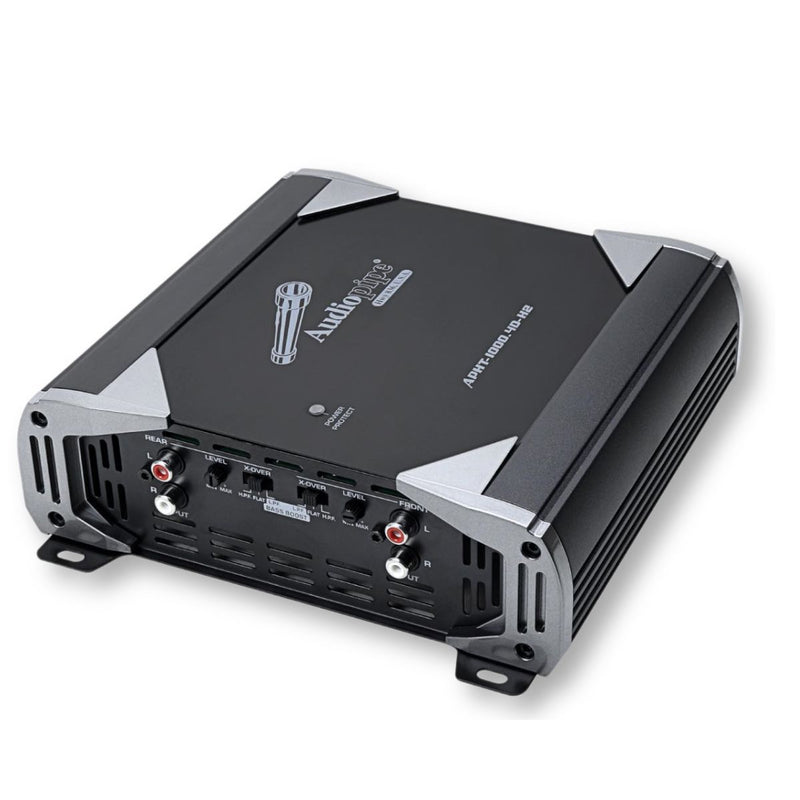

Audiopipe 2500 Watt Full Range Class-D 4 Channel 2-Ohm Amplifier APHT-1000.4D-H2

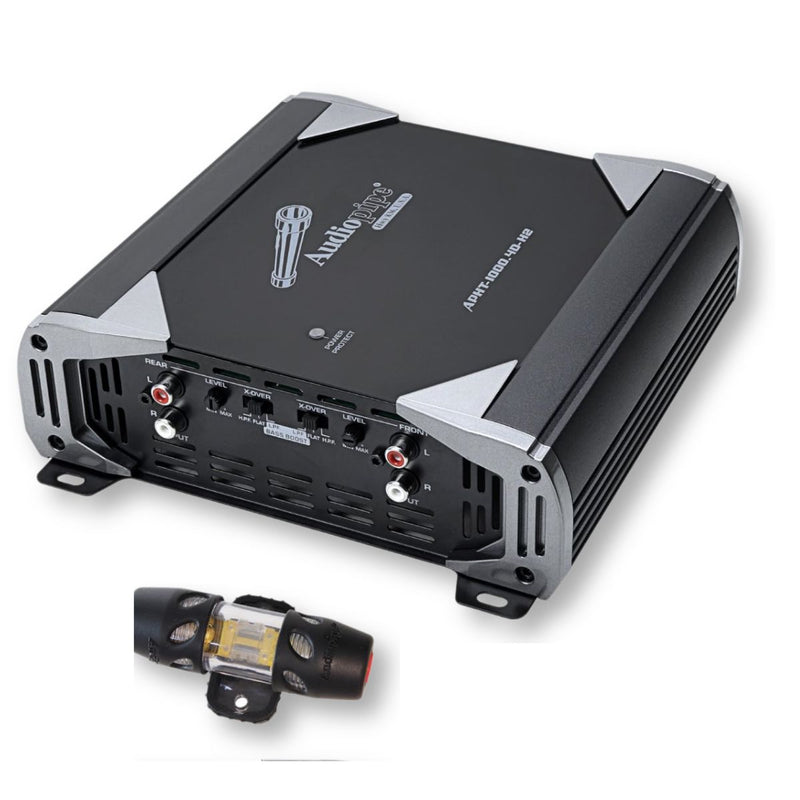

This Listing Includes:
- (1) Audiopipe APHT-1000.4D-H2 4-Channel Amplifier

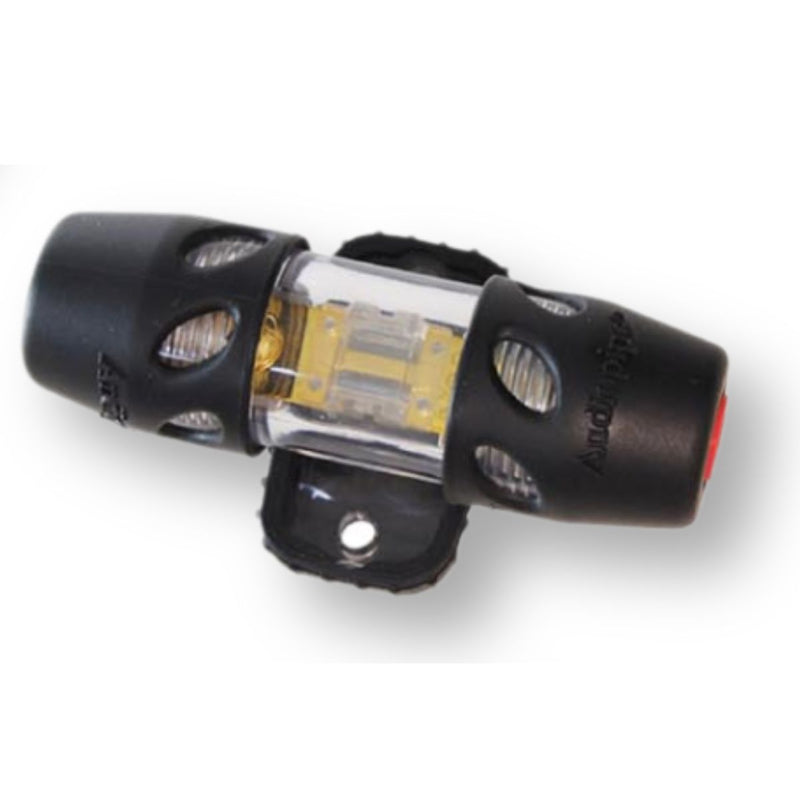

- (1) Mini ANL Fuse Holder
Power your entire system with confidence using the Audiopipe APHT-1000.4D-H2 - a compact, full-range Class D 4-channel amplifier engineered for precision, efficiency, and flexibility. With up to 920W RMS across 4 channels and 2500W max burst power, this amp delivers crystal-clear mids, punchy highs, and reliable performance.
Perfect for daily drivers or show builds, this amp can run door speakers, tweeters, or even subs in bridged mode. Built-in crossovers, 90Hz high/low pass filters, and wide voltage input support make this amp easy to install and tune.
Features
- High Output Class D Design - 4 x 230 Watts RMS @ 2-Ohms or bridge 2 x 460 Watts @4-Ohms
- Full Range Flexibility - Perfect for mids, highs, or full-range speaker systems
- Built-In Crossovers - 12dB/Oct HPF & LPF at 90Hz for better tuning
- Compact & Efficient - Runs cool, fits almost anywhere

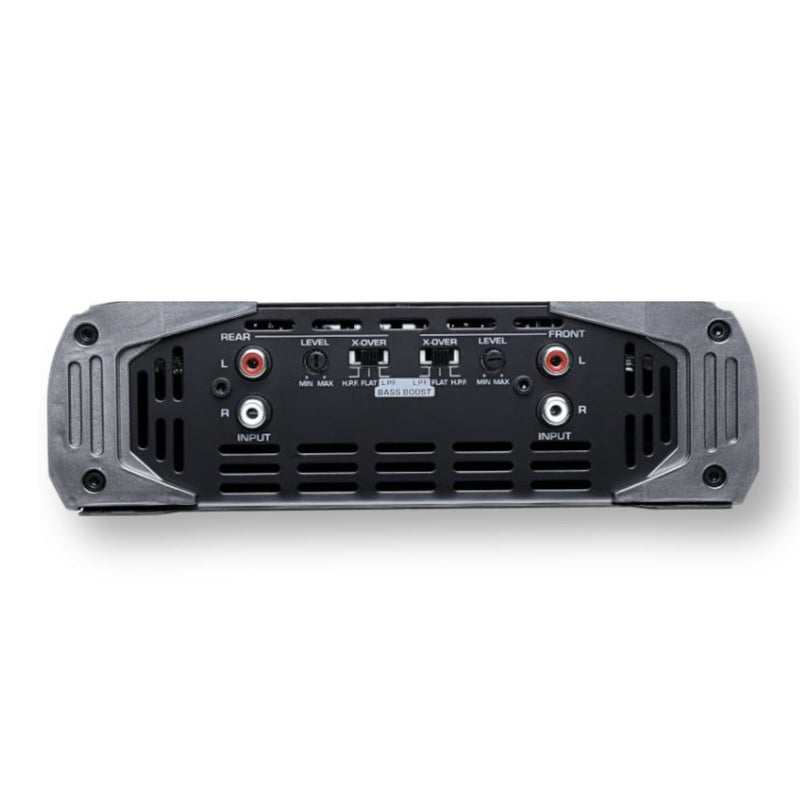

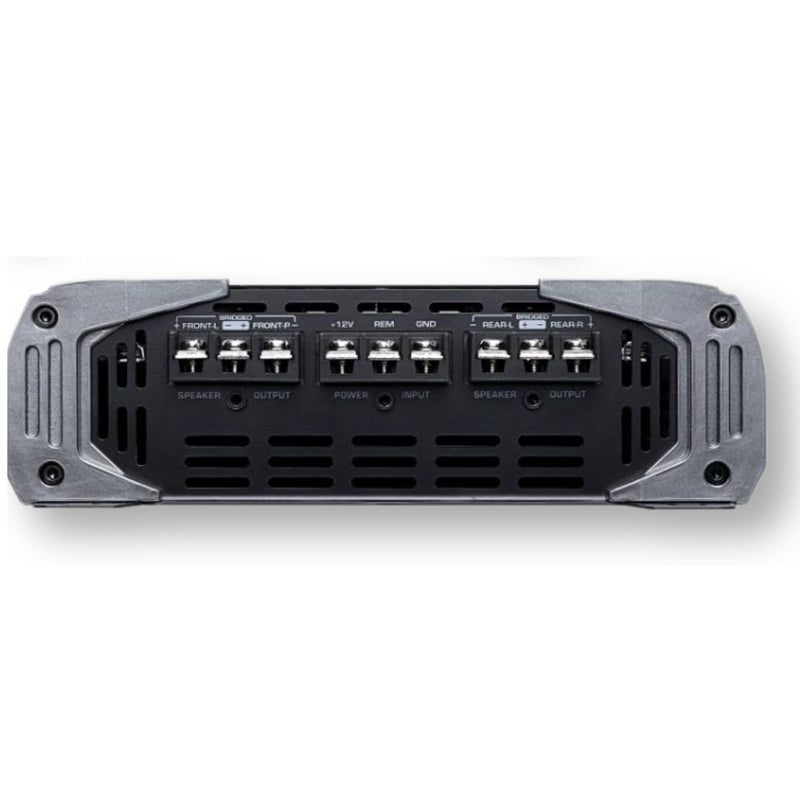

- Heavy-Duty Terminals & RCA Inputs - Secure and pro-grade connections
Specifications:
- Class Type: D (Full Range)
- Channels: 4
Power Output (RMS) @ 1% 1KHz:
- RMS Power Output(@ 4-Ohm): 4 x 140W
- RMS Power Output(@ 2-Ohm): 4 x 230W
- RMS Power Output(Mono @ 4-Ohm): 2 x 460W
- Max Power Output: 2500 Watts
- Frequency Response (-1db): 20Hz - 20kHz
- High Pass Filter: 90Hz @ 12dB/Octave
- Low Pass Filter: 90Hz @ 12dB/Octave
- Signal to Noise Ratio: 85dB
- Input Sensitivity: 0.2V - 12V
- Working Voltage: 9V-12V
- Under-voltage Protection: 9V
- Fuse Type: 60A ANL Fuse
- Weight: 4.15 lbs.
Dimensions:
- Length: 8.3"
- Width: 7.9"
- Height: 2.4"
- Package Dimensions: 11-3/4" x 9-7/8" x 4-1/4"
