- High-Powered Performance: Delivers up to 1200 watts of peak power, providing you with an exceptional audio experience while out on the water or off-road.
- IPX67 Waterproof and Dustproof: Built to withstand harsh marine and outdoor environments, ensuring reliable operation and longevity.
- 4 Channel Configuration: Provides versatility for powering multiple speakers or configurations, giving you flexibility in your audio setup.
- Compact and Flush Mount Design: Easily mounts into your boat or vehicle, saving space and providing a clean, integrated appearance.
- Class D Efficiency: Enjoy efficient power usage and less heat generation, leading to a cooler running amplifier and enhanced performance.

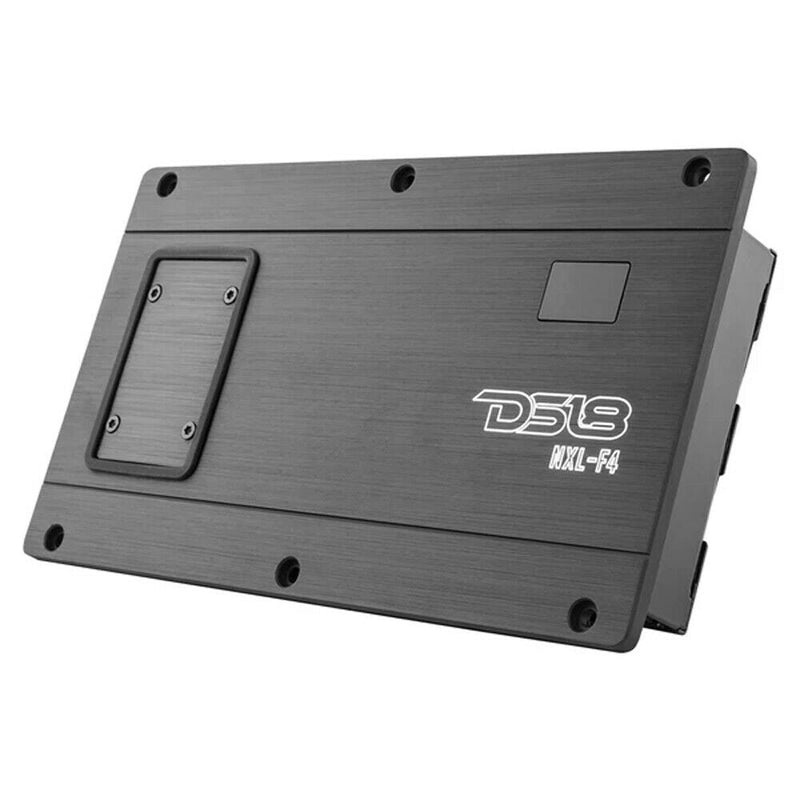

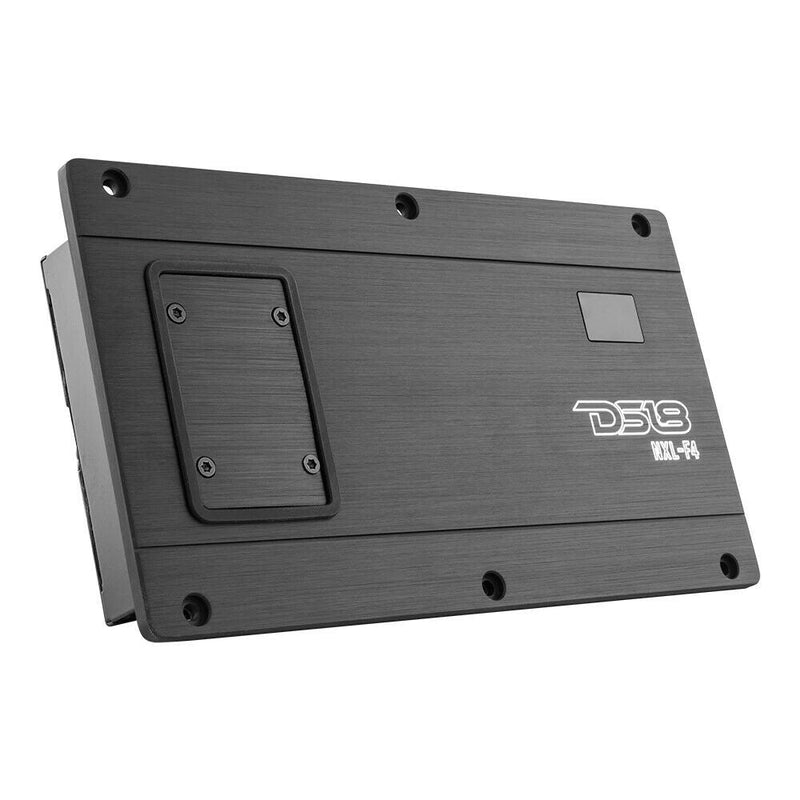

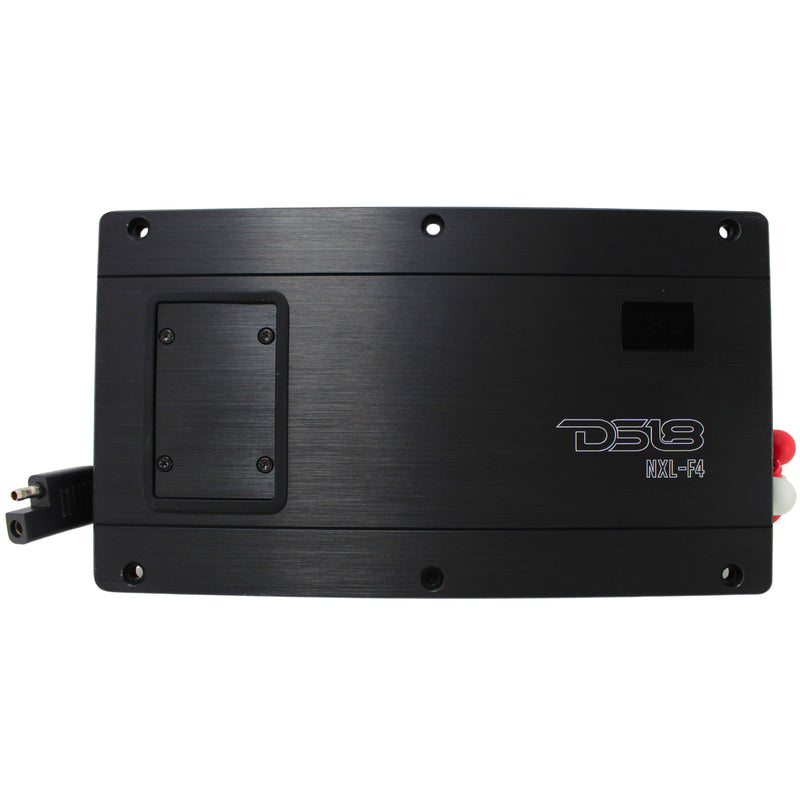

DS18 1200W 4-Ohm 4-Ch Full Range Class D Marine & Powersports Amplifier NXL-F4
This listing includes:
- (1) DS18 4 Channel Marine Amplifier NXL-F4
Flush-Mount Marine Power with Built-In Voltmeter
Elevate your marine or powersports audio system with the DS18 NXL-F4, a full-range Class D amplifier delivering serious power and sleek style. Designed to pair perfectly with DS18’s NXL series speakers, this compact amp pumps out 160W x 4 @ 2-Ohms and 100W x 4 @ 4-Ohms giving you the flexibility to run mids, highs, or coaxial with precision and power.
Whether you're cruising on a boat or blazing trails in your UTV, the NXL-F4's IP-rated marine-grade construction, flush-mount design, and built-in voltmeter ensure your system not only sounds great—but stays protected and efficient in harsh environments.
With easy installation, reliable output, and onboard diagnostics, this amp is the go-to solution for high-performance audio in tight spaces.
Features
- Marine-Grade Class D 4-Channel Amplifier - Built to withstand harsh outdoor conditions, ideal for boats, UTVs, ATVs, and motorcycles

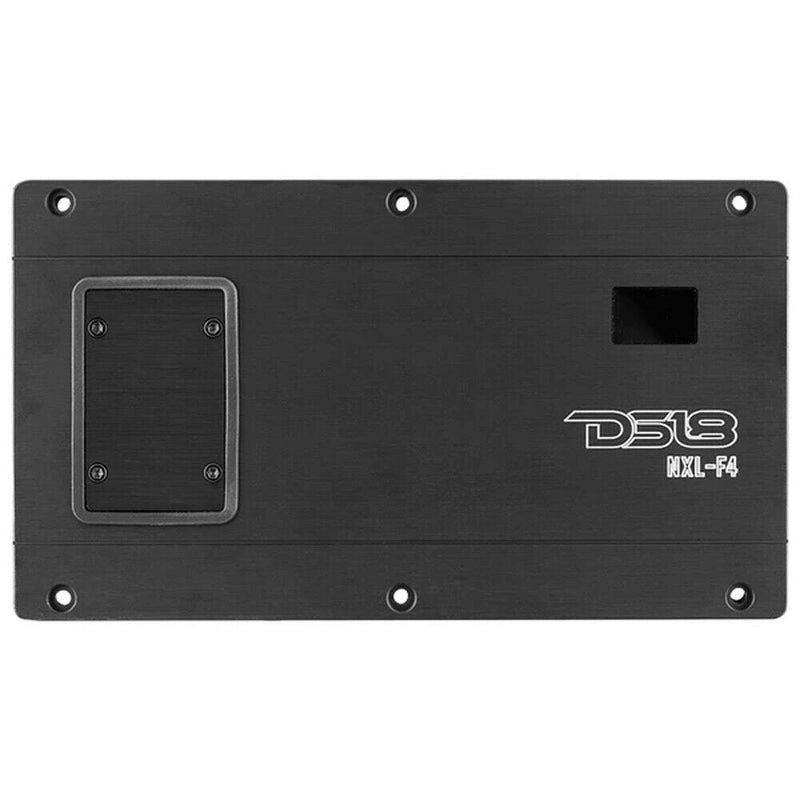

- Flush Mount Design - Clean, space-saving installation with 238 x 135 x 41 mm compact size
- Powerful Output - 160W x 4 @ 2-Ohms or 100W x 4 @ 4-Ohms for full-range speaker systems
- Integrated Voltmeter - Real-time battery monitoring to avoid power drops
- Efficient & Reliable - Class D design ensures stable power delivery with low heat output
- Perfect Match for DS18 NXL Speakers - Engineered for optimized loudness and clarity
Specifications:
- RMS Power @ 2 Ohm: 4 x 160 Watts
- RMS Power @ 4 Ohm: 4 x 100 Watts
- RMS Power @ 4 Ohm Bridged: 2 x 320 Watts
- Total Harmonic Distortion: Less than 0.1%
- S/N Ratio Ref 1W @ 4 Ohm: 90dB
- Gain Range: 0.2 - 6 Volts
- Crossover Range: 40Hz - 400Hz
- Frequency Range: 20Hz - 20KHz
- Bass Boost: 0 - 18dB (Rear Channels)
- Forced Cooling System: N/A
- Bass Remote Control: N/A
- Amplifier Class: Full Range Digital
- Weight: 4.5 lbs.
Dimensions:
- Length: 9.37 (238mm)
- Width: 5.31 (135mm)
- Height: 1.61 (41mm)
