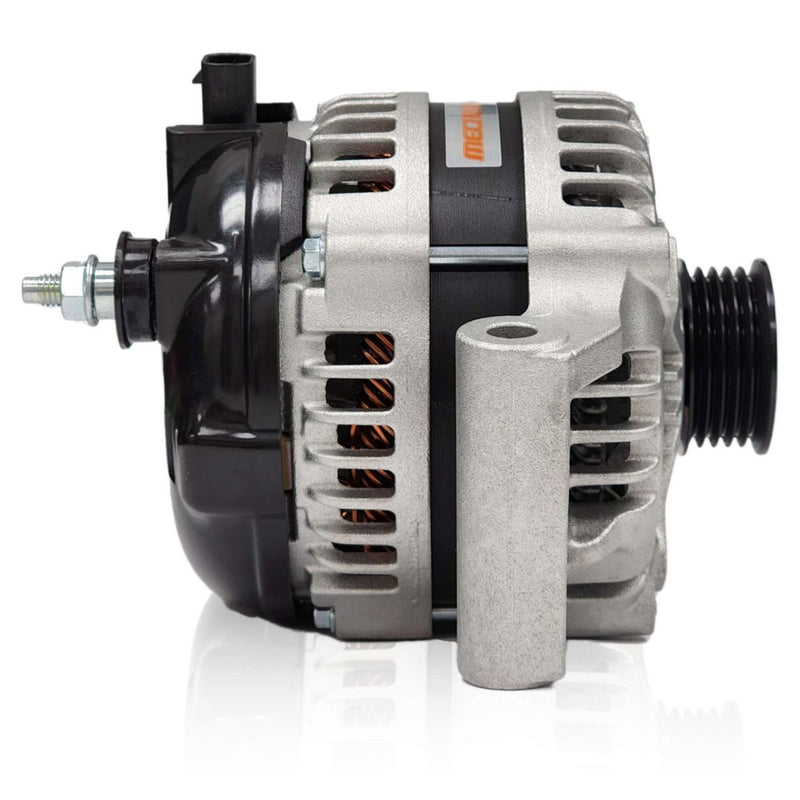

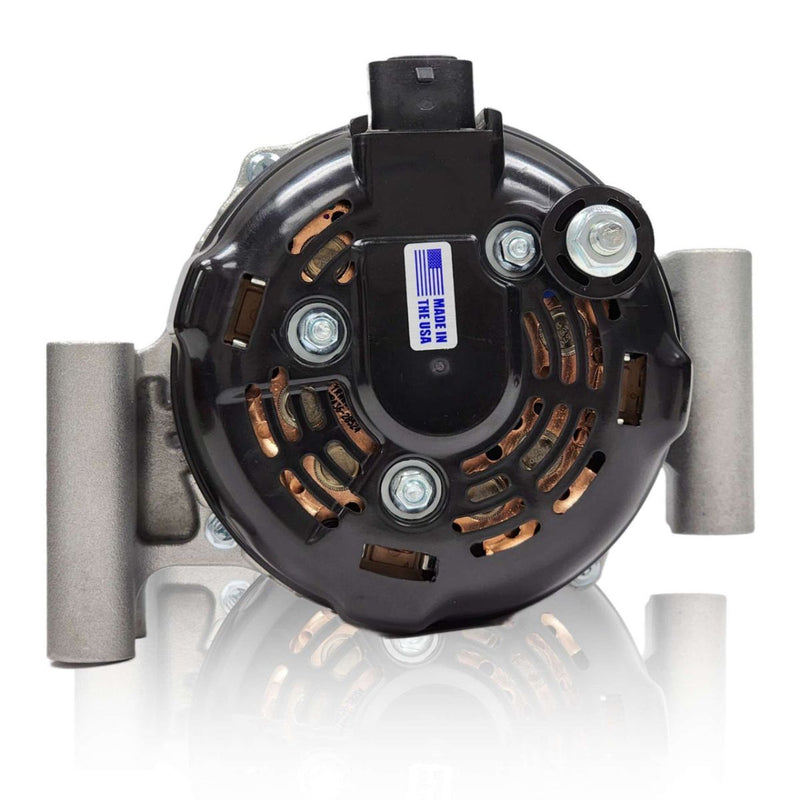

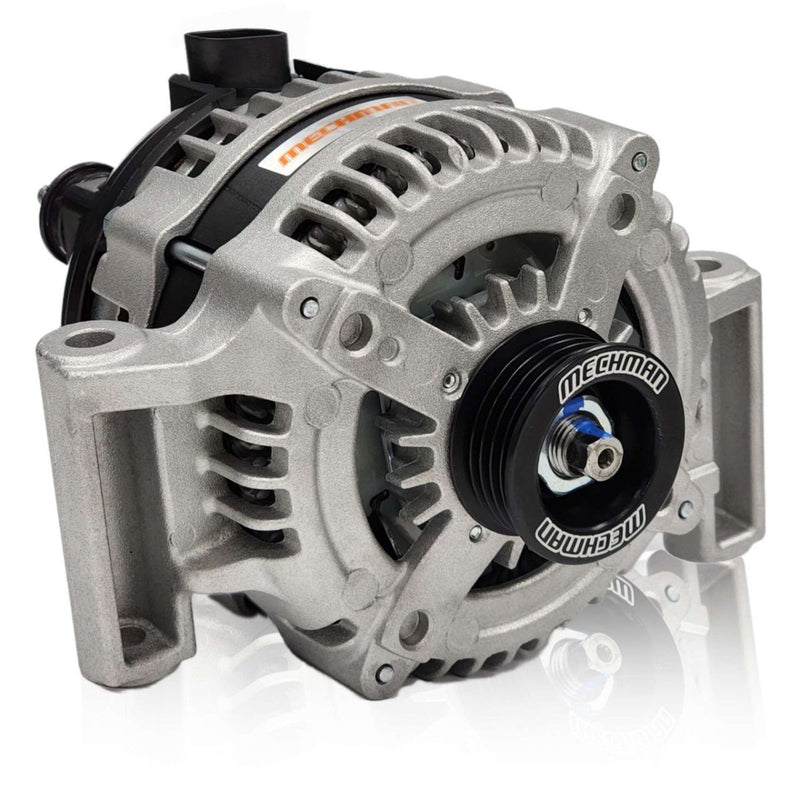

Mechman 320 Amp Alternator for Select GM 2.0 / 2.5 Engine Applications 11682320

• MAX POWER OUTPUT – Delivers a massive 320 AMPS of charging power, ideal for high-demand electrical and audio systems.
• STABLE VOLTAGE CONTROL – Features an INTERNAL REGULATOR and RVC system bypass for consistent and reliable voltage output.
• EASY INSTALLATION – Includes SINGLE WIRE TURN-ON and P103 plug to keep battery light off and simplify installation.
• HIGH RPM PERFORMANCE – Optimized for DRIVING RPM RANGE with smaller 1.75" pulley for maximum amperage at higher speeds.
• VOLTAGE BOOST READY – COMPATIBLE WITH VOLTAGE BOOST HARNESS to raise charging voltage up to a high-performance 16V range.

Mechman 320 Amp Alternator for Select GM 2.0 / 2.5 Engine Applications 11682320

Listing includes:

• (1) 320 Amp Alternator for Select GM 2.0 / 2.5 11682320

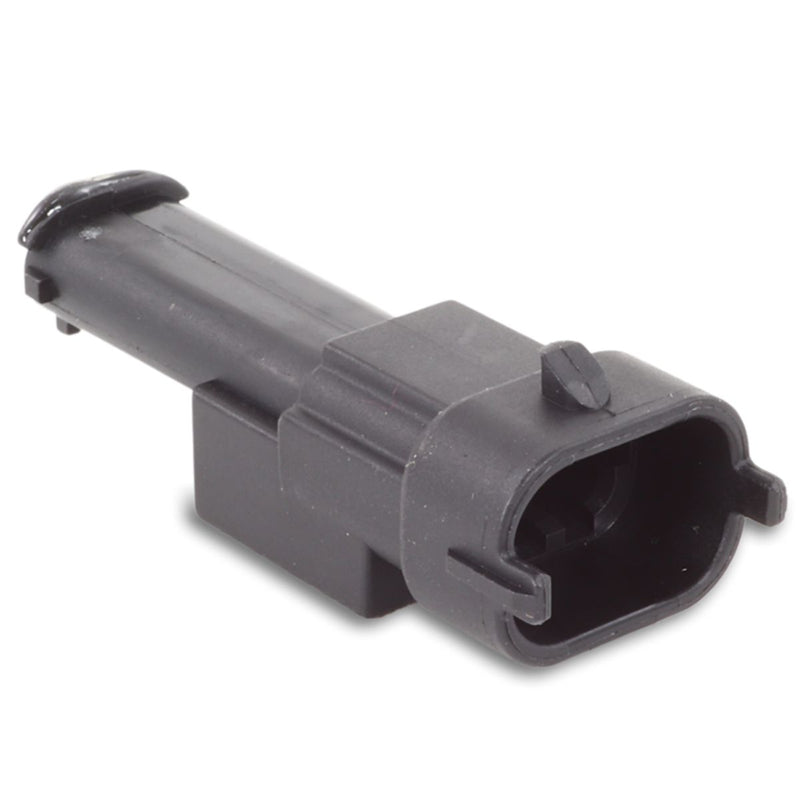

• (1) P103 plug

This 320-amp alternator is designed for a wide range of GM vehicles with the 2.0 and 2.5 engine applications.

This 320-amp version is made for the MAX EFFORT customer needing all of the amperage available on this platform. We bypass the vehicles RVC system and use a single wire turn on (P101 harness) with an internal regulator for higher/more stable voltage. We also include our P103 plug to ensure the battery light remains off. The 320-amp option offers the most amperage at higher or driving RPM's.

This alternator uses a smaller 1.75" diameter pulley so a 1/2" or so serpentine belt is required for proper performance and maximum output. This RVC bypassed version is also compatible with our plug and play GM 4pin voltage boosting harnesses found in our Plugs and Harnesses section. These can raise your standard 14.6-14.9 voltage in half volt increments up to a high 16-volt area.

Specifications:

• Amperage Output: 320 Amps


• Pulley size: 1.75"


• Voltage Compatibility: 12V System


• Charging Output: 14.6–16V


• Serpentine Style Pulley Included


• Internal Regulator Included

Dimensions:

• Length: 10"


• Width: 10"


• Height: 10"


• Weight: 17 LBS

Compatible Models:

• Buick / Regal / 2.0L / 2014 - 2020


• Chevrolet / New Blazer / 2.5L / 2019 -2021


• Chevrolet / Camaro / 2.0L / 2016 -2023


• Chevrolet / Colorado / 2.5L / 2015 -2022


• Chevrolet / Impala / 2.5L / 2014 -2019


• Chevrolet / Malibu / 2.0 / 2.5 / 2013 -2022


• GMC / Canyon / 2.5L / 2015 -2022


• Cadillac / ATS / 2.0 / 2.5 / 2013 - 2019


• Cadillac / CTS & CTSV / 2.0L / 2014 -2019
