- High sensitivity output, delivers crisp and powerful high frequencies with a 106 dB sensitivity that cuts through loud car audio systems
- Efficient power handling, rated at 25 watts RMS and 50 watts PMPO for reliable performance without excessive amplifier strain
- Wide frequency response, covers 4000 Hz to 20 kHz to add clear detail and brightness to music and vocals
- Compact neodymium design, lightweight aluminum construction with a neodymium magnet for strong output in a small footprint
- Installation ready, includes mounting bracket and mylar crossover capacitor for protection and easier setup

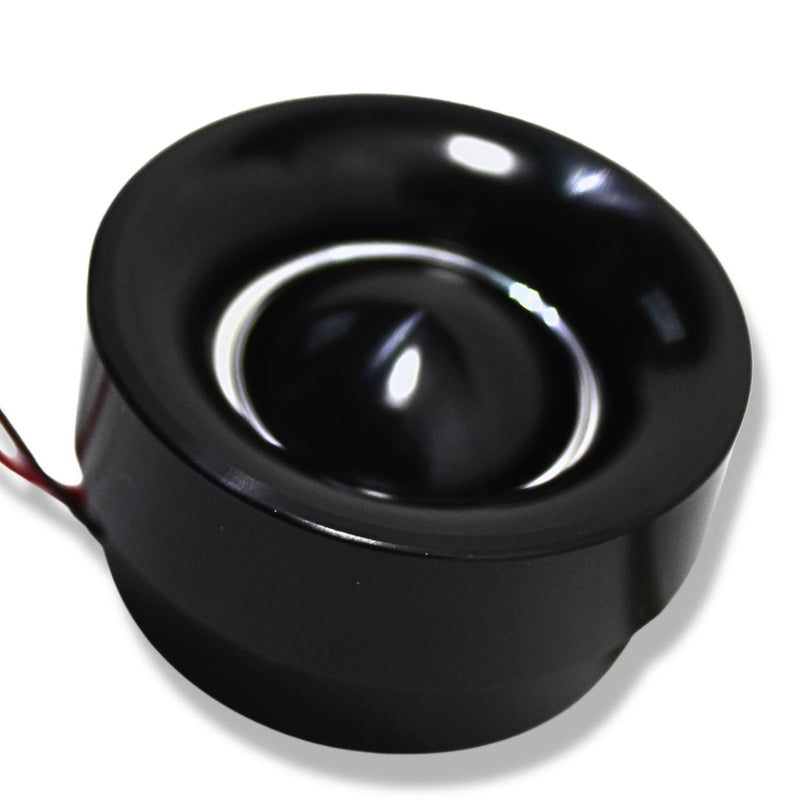

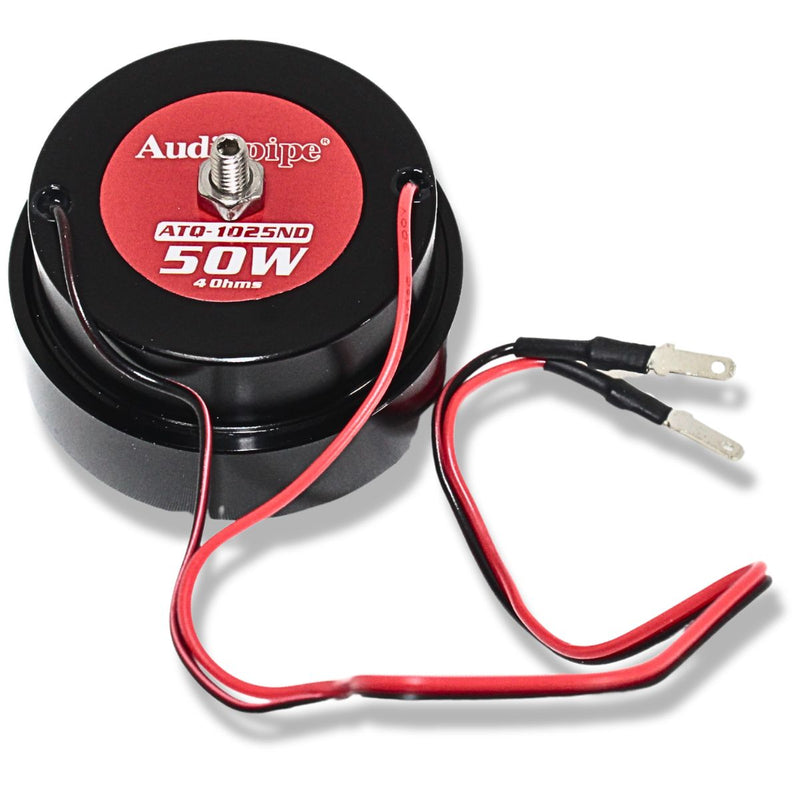

Audiopipe 25 Watt RMS 4 Ohm High Sensitivity Compression Neo Tweeters ATQ-1025ND

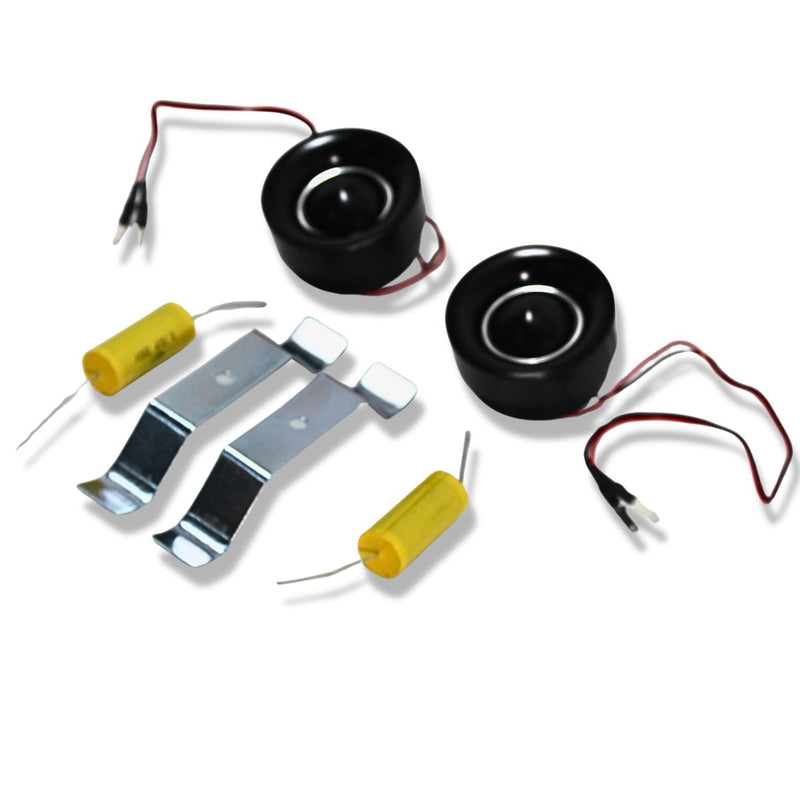

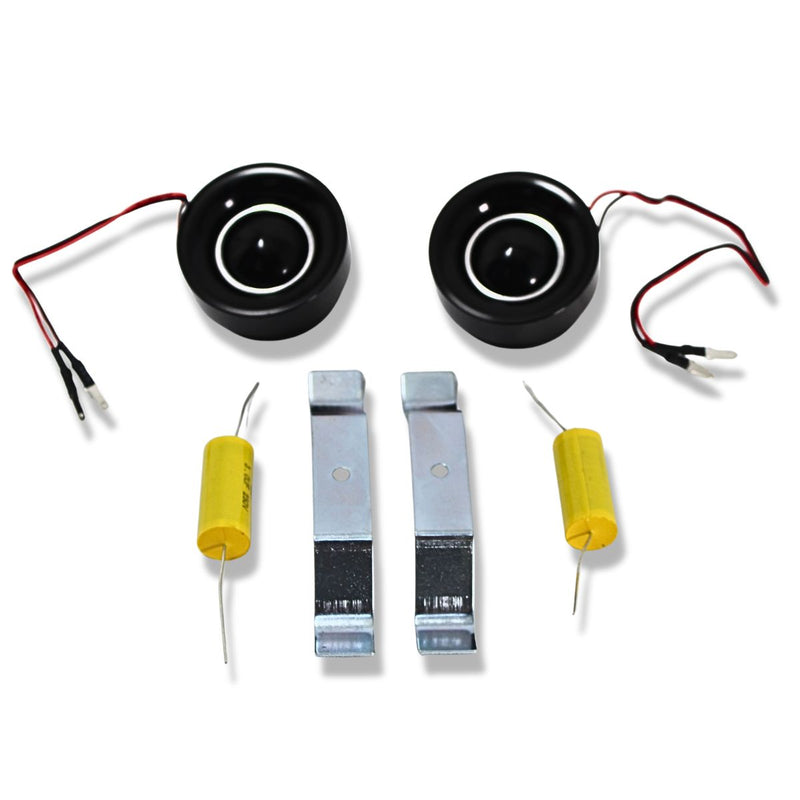

This Listing Includes:

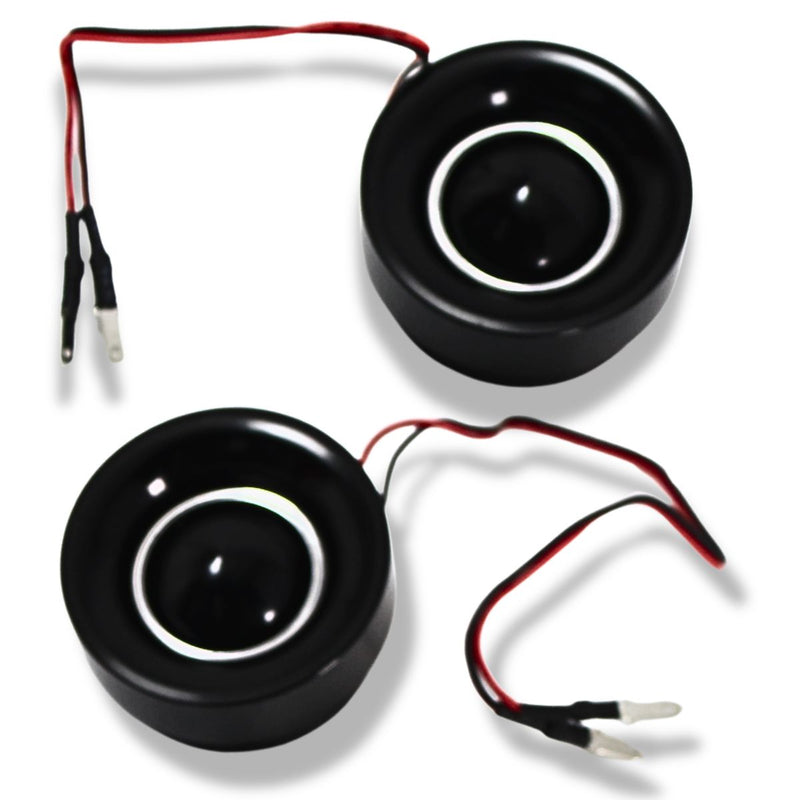

- (2) Audiopipe ATQ-1025ND Compression Tweeters
- (2) Mounting brackets
- (2) Mylar crossover capacitors
The Audiopipe ATQ-1025ND is a high-sensitivity compression tweeter built for systems that demand clear, aggressive high-frequency output. Designed for efficiency and projection, this tweeter is ideal for loud car audio builds where detail and presence matter most.
Constructed with a lightweight aluminum body and powered by a neodymium magnet, the ATQ-1025ND delivers strong output while keeping overall size and weight compact. With a frequency response ranging from 4,000 Hz to 20,000 Hz and a high 106 dB sensitivity rating, this tweeter easily cuts through high-output midbass and subwoofer systems without distortion.
A ferrofluid-enhanced voice coil improves heat dissipation for more consistent performance at higher volumes. Installation is simplified with the included mylar crossover capacitor for protection and a mounting bracket for secure placement. Whether used in cars, trucks, or custom builds, the ATQ-1025ND is a reliable choice for adding crisp, powerful highs to any system.
Features:
- High-sensitivity compression tweeter design for loud, clear high-frequency output
- 106 dB sensitivity for strong volume and efficiency with minimal amplifier power
- Wide frequency response from 4,000 Hz to 20 kHz for crisp, detailed highs
- Neodymium magnet for powerful performance in a compact, lightweight design
- Aluminum diaphragm and housing for durability and improved sound clarity
- Ferrofluid-enhanced voice coil for better heat dissipation and consistent output
- Includes mylar crossover capacitor for tweeter protection and simplified installation

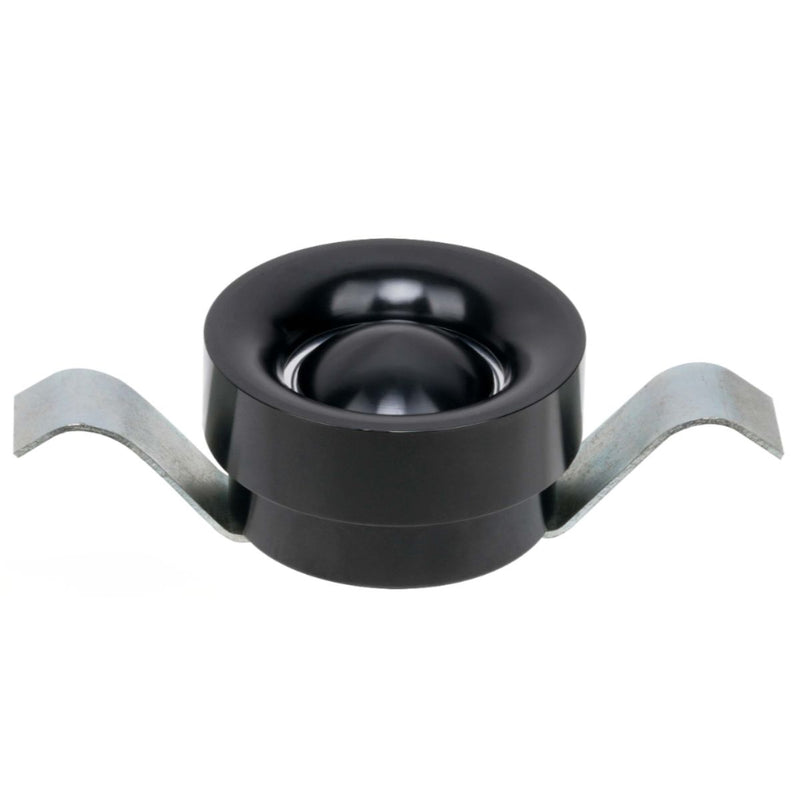

- Mounting bracket included for secure and flexible placement in custom installs
Specifications:
- Brand: Audiopipe
- Model: ATQ-1025ND
- Type: Compression Tweeter
- Power Handling: 50 Watts
- RMS Power: 25 Watts
- Impedance: 4 Ohms
- Frequency Response: 4000 Hz to 20 kHz
- Sensitivity: 106 dB
- Winding Material: CCAR
- Diaphragm Material: Aluminum
- Magnet Type: Neodymium
- Voice Coil: Ferrofluid enhanced
- Construction: Aluminum
- Crossover: Mylar capacitor included
- Mounting Bracket: Included
- Application: Car audio
Dimensions:
- Overall Diameter: 1.9"
- Overall Depth: 1.4"
- Front Mount Baffle Cutout: 1.7"
- Mounting Depth: 0.8"
- Motor Diameter: 1"
