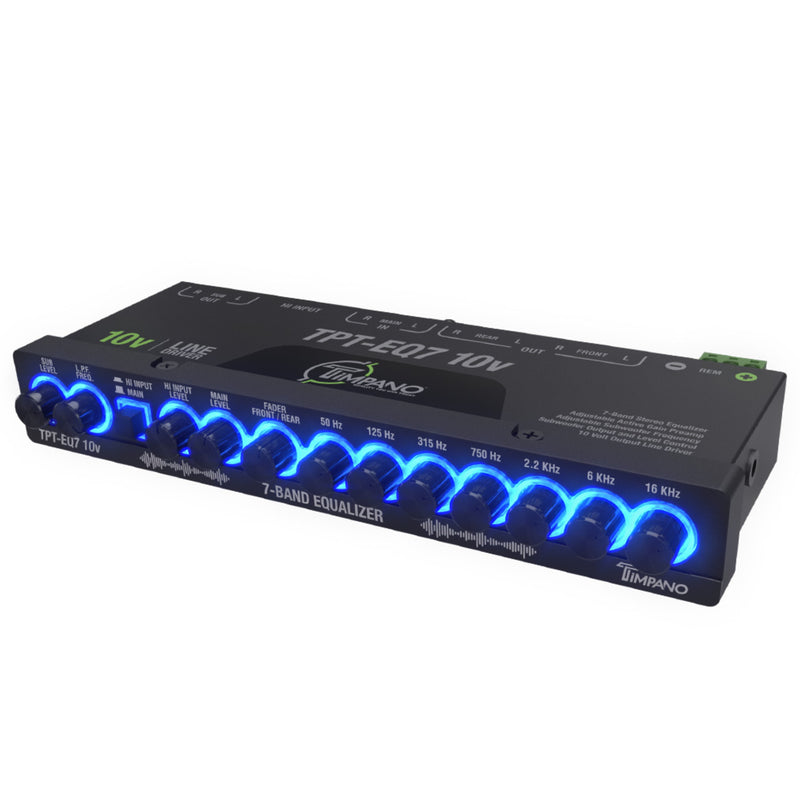

7 Band 1/2 DIN 6-Channel 10-Volt RCA Equalizer Crossover Timpano TPT-EQ7-10V

• 7 Adjustable Bands: Fine-tune your audio with precision across 7 distinct bands, including a dedicated bass control knob for optimal low-frequency performance.
• High Voltage Line Driver: Ensure superior audio clarity and strength with a high-voltage line driver that enhances signal output while reducing distortion.
• User-Friendly Interface: Easily adjust levels with intuitive knobs for input control, fader adjustments, and frequency equalization, perfect for on-the-go tweaks.
• LED Lighting for Visibility: Equipped with blue LED lights, the equalizer offers clear visual feedback of settings, making adjustments easy even in low-light environments.
• Durable Construction: Crafted from high-quality materials, this equalizer is built to withstand frequent use while maintaining excellent sound quality performance.

7 Band 1/2 DIN 6-Channel 10-Volt RCA Equalizer Crossover Timpano TPT-EQ7-10V

This listing includes:

• (1) 7 Band 1/2 DIN 6-Channel 10-Volt RCA Equalizer


• (2) Mounting brackets


• (2) Phillips-head screws

Take control of your sound with the Timpano TPT-EQ7-10v Equalizer, meticulously designed for passionate music lovers. This powerful equalizer provides you with seven distinct bands, empowering you to fine-tune your music to perfection.

With a dedicated bass control knob, you'll feel the beats in your chest, enabling an immersive sound experience. The high-voltage line driver ensures that every note resonates, delivering unparalleled audio quality.

Gone are the days of bland factory audio—this equalizer enhances your system's performance by allowing you to control individual input levels and balance between front and rear outputs seamlessly. Its compact design ensures it fits perfectly into your dash while maintaining a polished look.

Redefine your listening experience today. Say yes to higher sound quality and refined audio control with the Timpano TPT-EQ7-10v Equalizer. Don’t wait any longer; your perfect sound awaits!

Features:

• Seven equalization bands.


• Subwoofer output uses a built-in 10dB octave electronic crossover fixed at 60 Hz or 90 Hz


• Three Stereo RCA outputs to drive front, rear and subwoofer audio amplifiers.


• An auxiliary stereo RCA input for use with portable devices


• Separate control for master volume, subwoofer, volume (sub level), front/rear fader and selection of main or auxiliary inputs


• Gold-plated RCA connectors to ensure the best audio signal output

Specs:

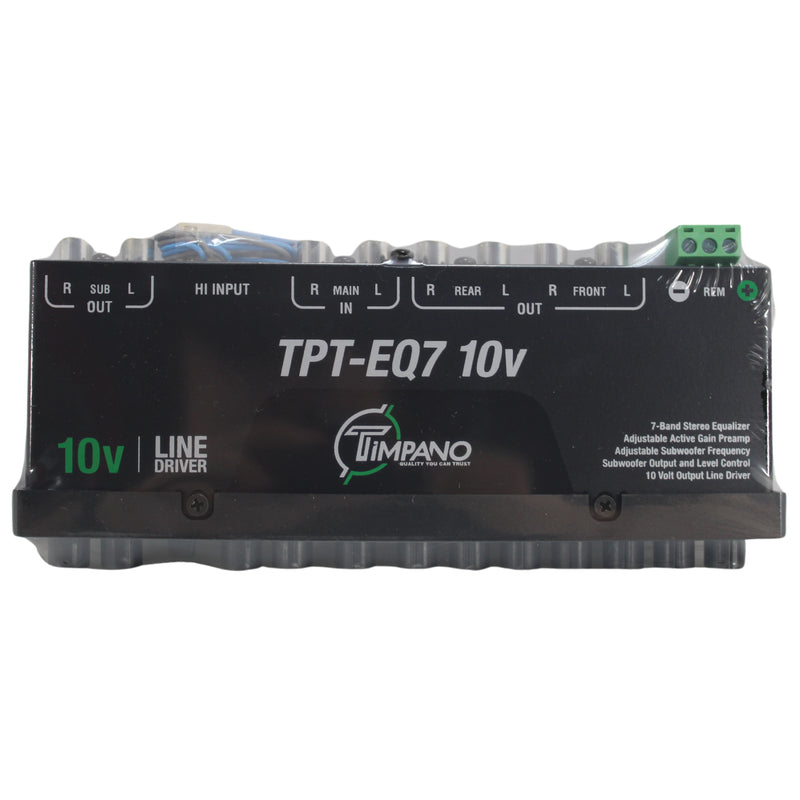

• Inputs: MAIN IN (RCA) and HI INPUT (WIRE)


• Outputs: SUB OUT, FRONT and REAR


• Audio Controls: SUB LEVEL and L.P.F. FREQUENCY, INPUT SELECTOR (MAIN and HI INPUT), LEVEL (MAIN and HI INPUT), FADER (FRONT and REAR), EQUALIZER (-12dB ~ +12dB)


• SUB frequency control: 60Hz ~ 90Hz


• Vout @ 14.4V: Sub Out: 10V RMS / Front & Rear: 8.5V RMS (LINE DRIVER)


• Input sensitivity: Main (RCA): 3.3V RMS @ 14.4V / High (WIRE): 25V RMS @ 14.4V


• Input impedance: Main (RCA): 20K Ohms / High (WIRE): 1K Ohms


• Output impedance: 47 Ohms


• Frequency response: 5Hz ~ 140KHz


• THD: < 0.1%


• SNR: > 100dB


• Crosstalk: > 85dB


• Supply voltage: 9V ~ 16V DC


• Max consumption: 290mA @ 12.6V


• Dimensions (W x D x H): 7.25†x 3.25†x 1â€


• Weight: 0.68 lb
