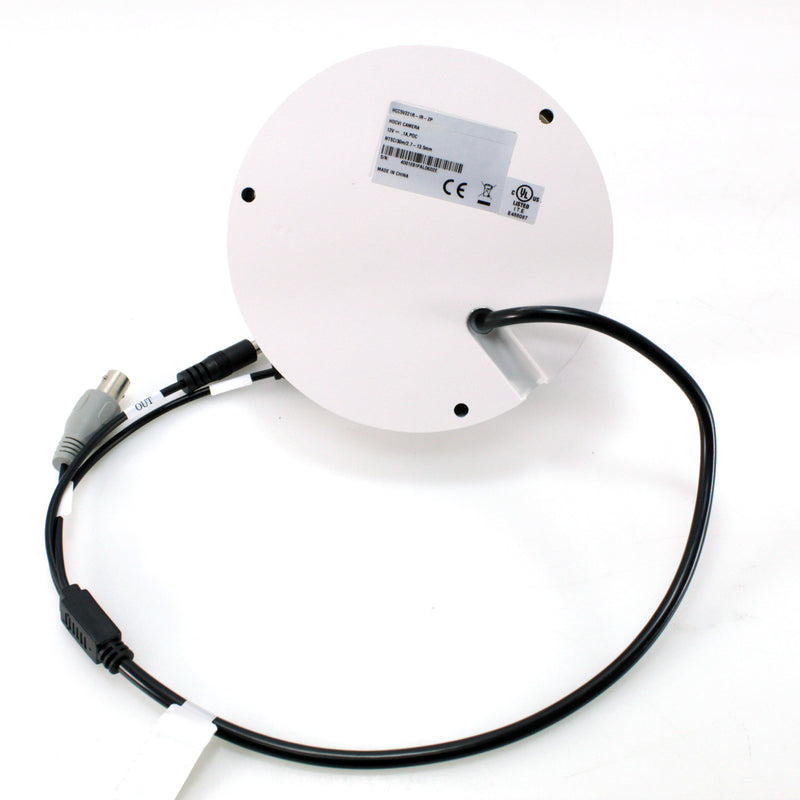

2MP Starlight Dome Motorized WDR HDCVI IR Security Camera HCC5V221R-IR-Z-P

SKU ENS-HCC5V221R-IR-Z-P
Save 68% Save 68%
Original price $101.56
Original price $101.56 - Original price $101.56
Original price $101.56
Current price $32.88
$32.88 - $32.88
Current price $32.88

Free Gifts when added to Cart

The more you spend, the greater selection of free gifts you'll have at your fingertips when selecting items in your shopping cart!

Spend More, Save More

Big Jeff loves his customers!!!
  • Spend $250, Save 3% *Must purchase 2 items to qualify
  • Spend $500, Save 5% *Must purchase 3 items to qualify
  • Spend $1000, Save 7% *Must purchase 4 items to qualify

*Does not apply to: Sundown, XS power or Kicker products*

*Does not stack with other promotional sales*

2MP Starlight Dome Motorized WDR HDCVI IR Security Camera HCC5V221R-IR-Z-P

Experience 1080P full HD video and the simplicity of reusing existing coaxial infrastructure with HDCVI. The Starlight HDCVI camera with 120db true WDR presents a high-quality image with rich details even in extreme low-light conditions. This model is a PoC camera which can be powered by PoC XVR or PoC transmitter over a single coaxial cable with video, requiring no separate power supplies. PoC reduces installation time and costs, making it an ideal choice for applications with complex deployment but a tight budget.

This listing includes:

(1) Camera

(1) Manual

(1) Installation Hardware

Specifications:

Camera

Image Sensor: 1/2.8" CMOS

Effective Pixels 1937(H)x1097(V), 2.1MP

Scanning System: Profressive

Electronic Shutter Speed: PAL: 1/4s-1/100000s / NTSC: 1/3-1/100000s

Minimum Illuminations: 0.005Lux/F1.3, 30IRE, OLux IR on

S/N Ratio: More than 65dB

IR Distance: Up to 30m (98 feet)

IR On/Off Control: Auto/Manual

IR LEDs: 2

Lens:

Lens type: Motorized lens/fixed iris

Mount type: Board-in

Focal Lenght: 2.7-13.5mm

Max Aperture: F1.3

Angle of View: H:102-29

Focus Control: Auto/Manual

Close Focus Distance: 200mm/ 7.87"

DORI Distance:

*Note: The DORI distance is a "general proximity" of distance which makes easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test results according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

Dori Distance

Detect 25px/m 47m (153ft) 153m (502ft)

Observe 63px/m 19m (153ft) 612m(201ft)

Recognize 125px/m 9m (31 ft) 31m(100ft)

Identify 250px/m 5m/ (15 ft) 15m (50ft)

Pan/Tilt/Rotation

Pan/Tilt/Rotation Pan: 0 - 355 Tilt: 0 - 75 Rotation: 0-355

Video

Resolution: 1080P (1920x1080)

Frame Rate: 25/30fps@1080P, 25/30fps@720P

Video Output: 1-channels BNC high definition video output/ CVBS Video Output (can switch)

Day/Night: Auto (ICR)/ Manual

OSD Menu: Multi-Language

BLC Mode: BLC/HLC

WDR: 120dB

Gain Control: AGC

Noise Reduction: 2D/3D

White Balance: Auto/Manual

Smart IR: Auto/Manual

Certifications: CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC PART 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No 60950-1)

INTERFACE

Audio Interface: N/A

Electrical

Power Supply : POC/12V DC25%

Power Cunsumption: Max 8.8w (12V DC, IR on)

Power Output: 12V DC, Max.2W

Environmental:

Operating Conditions: -40C - + 60C {-40F - +140F)/ Less than 90% RH *Start up should be done at above -40C (-40F)

Storage Conditions: -40C - + 60C {-40F - +140F)/ Less than 90% RH

Ingress Protection & Vandal Resistance: IP67 & IK10

Construction:

Casing: Aluminum

Dimensions 122mmx88.9mm (4.8"x3.5")

Net Weight: .48kg (1.06lb)

Gross Weight: .63kg (1.39lb)
