Expert Electronics Star X Bluetooth + App DSP 2 In / 4 Out 24bits/48KHz

• Balanced RCA inputs for clean signal handling
• Unbalanced RCA outputs for easy system integration
• Mobile app control (iOS/Android)
• RMS and Peak limiters for speaker protection

Expert Electronics Star X Bluetooth + App DSP 2 In / 4 Out 24bits/48KHz

This listing Includes

•  (1) Star X Bluetooth + App DSP 2 In / 4 Out 24bits/48KHz

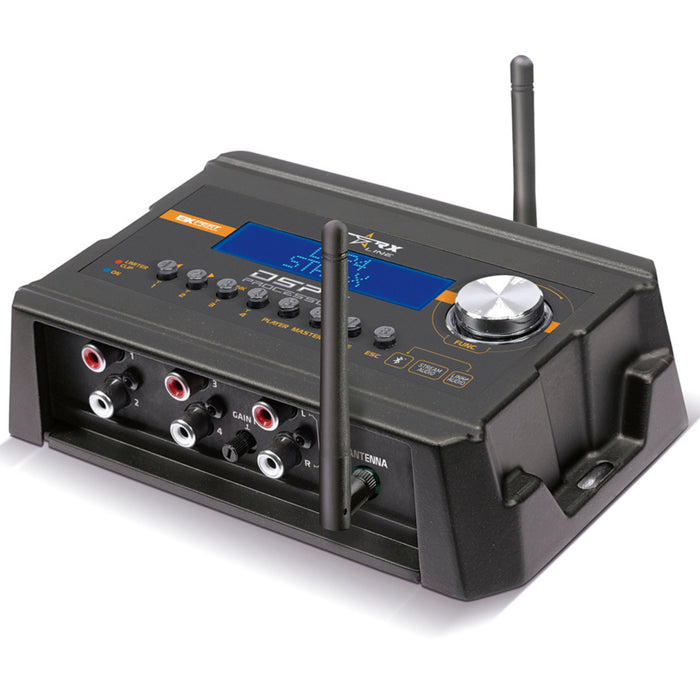

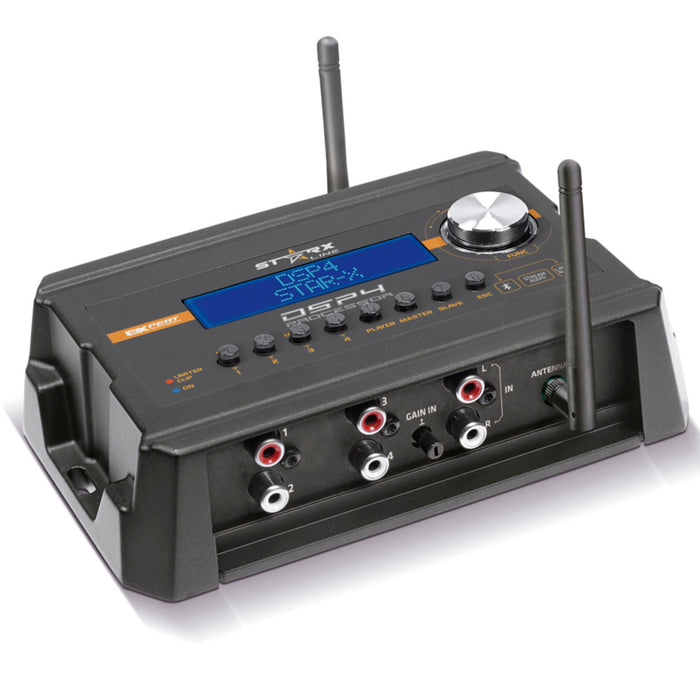

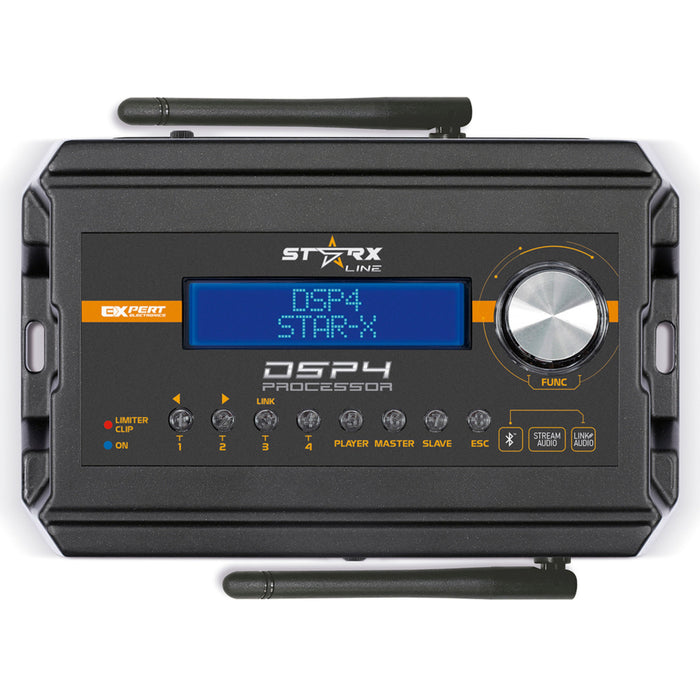

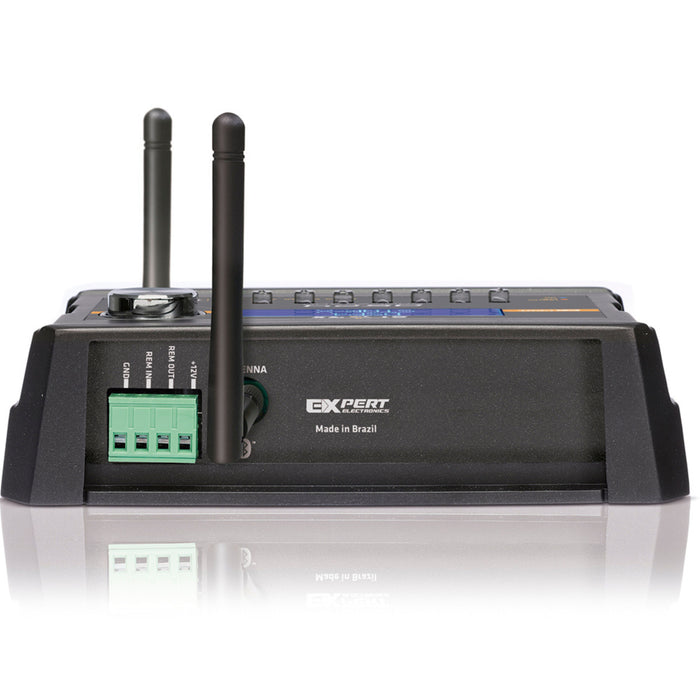

The Star X DSP from Expert Electronics delivers precision audio control in a compact and intuitive design. With Bluetooth player, Bluetooth linking, mobile app support, and a digital display, this DSP is ideal for both daily drivers and professional-grade sound systems. Enjoy a high level of tuning capability with low distortion and real-time audio monitoring through RMS and Peak limiters.

Features

• Balanced RCA Inputs


• Unbalanced RCA Outputs


• EQ Bands per Channel


• RMS and Peak Limiter


• Mobile App Support (iOS/Android)


• Onboard Digital Display


• 24-bit resolution with 48kHz sampling rate


• 1.08ms processing latency


• 100dB signal-to-noise ratio


• Ultra-low THD+N < 0.01%

Input Specifications

• Type: Balanced


• Connection: RCA


• Max Input Level: 6V @ 1Vrms


• Input Impedance: 100K Ohms

Output Specifications

• Type: Unbalanced


• Connection: RCA


• Max Output Level: 3.5Vrms


• Output Impedance: 470 Ohms

DSP Specifications

• Resolution: 24-bit


• Sampling Frequency: 48kHz


• Frequency Response: 10Hz – 22kHz (-1dB)


• THD+N: < 0.01%


• Signal-to-Noise Ratio: 100dB


• Processing Latency: 1.08ms


• Limiters: RMS and Peak

Power Requirements

• Operating Voltage: 10 – 15 VDC


• Power Consumption: 300mA (5W)


• Fuse: 1A

Measurements

• Dimensions (L x W x H): 6.06 x 4.09 x 1.81 in


• Weight: 0.93 lbs
