- Premium Woofer Cone: Yellow straw and composite foam for tight bass and natural sound response
- Silk Dome Tweeter: Adjustable swivel mount with neodymium magnet for smooth, directional highs
- High Power Handling: Delivers 150W RMS and 300W peak output without distortion
- Full-Range 2-Way Design: Engineered for accurate sound reproduction across the full spectrum
- Optimized Heat Dissipation: Built for SQ systems with components that stay cool under pressure

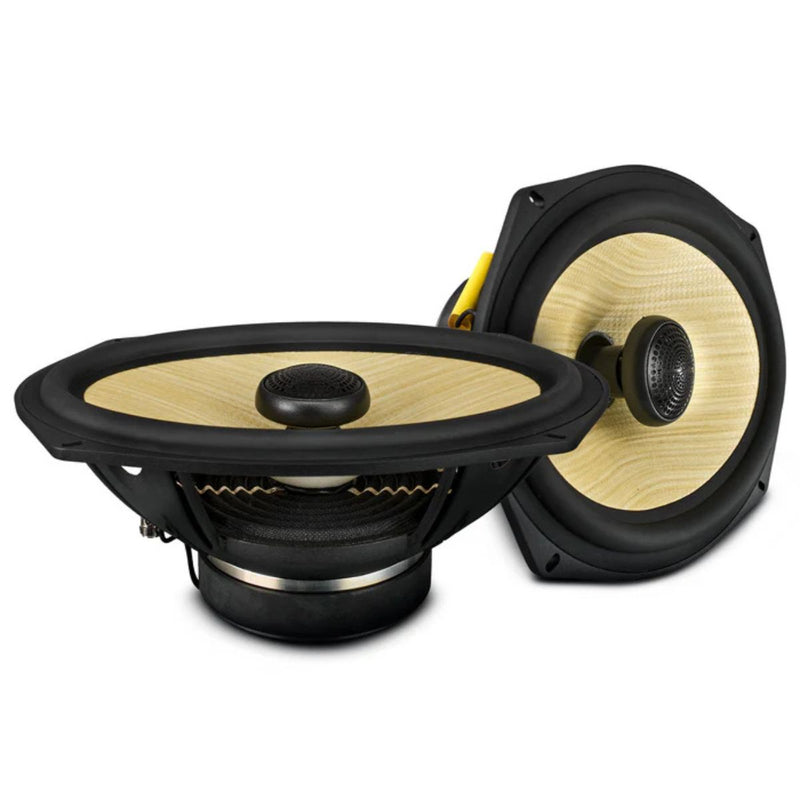

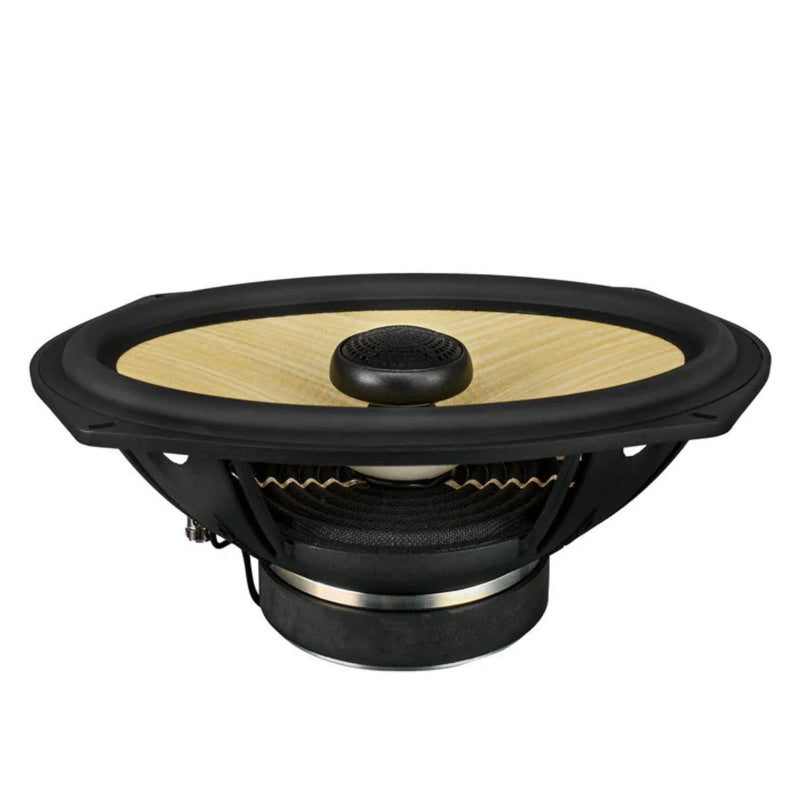

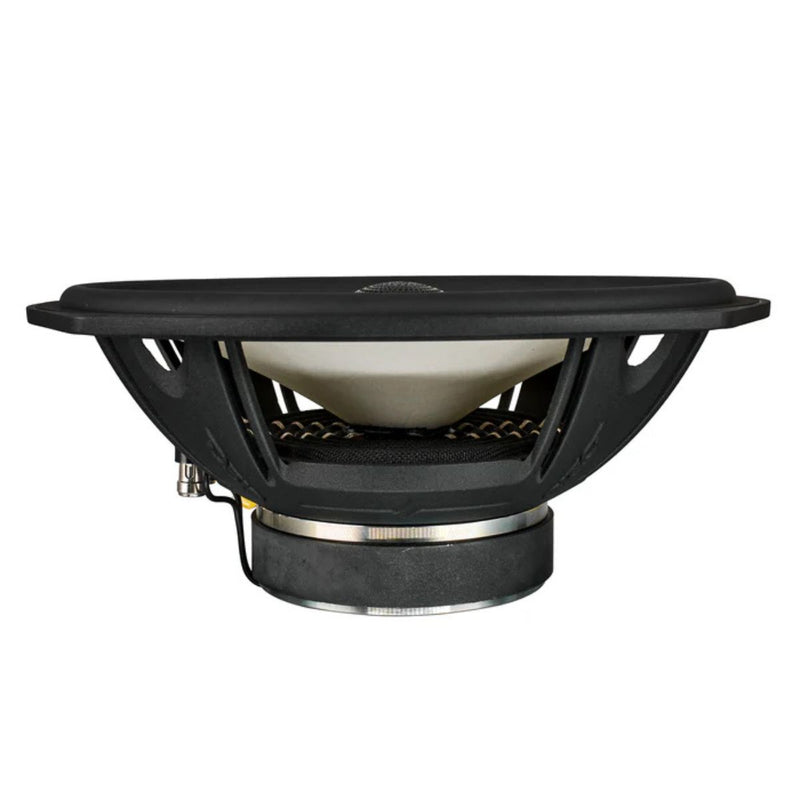

DS18 6x9" 150W RMS 4-Ohm 2-Way Coaxial Speakers with Woven Yellow Composite Cone
Included In This Listing:
- (2) DS18 DXQ6.9CX 4_Ohm 6x9" Coaxial Speakers
The DS18 DXQ6.9CX delivers rich, distortion-free audio with powerful 150W RMS and smooth highs from its silk dome tweeter. Designed with premium materials like a yellow straw/composite foam cone and rubber surround, this coaxial speaker is built for clarity, durability, and enhanced heat dissipation. With 4-ohm impedance and excellent integration flexibility, it's ideal for car doors, aftermarket audio installs, or sound upgrades in vehicles seeking dynamic and precise full-range sound.
Power & Performance
With 150W RMS and 300W MAX power handling, the DXQ6.9CX delivers consistent performance across a full frequency range (45Hz–20kHz). Designed for high-output systems, it maintains clarity even at loud volumes.
Premium Cone & Tweeter

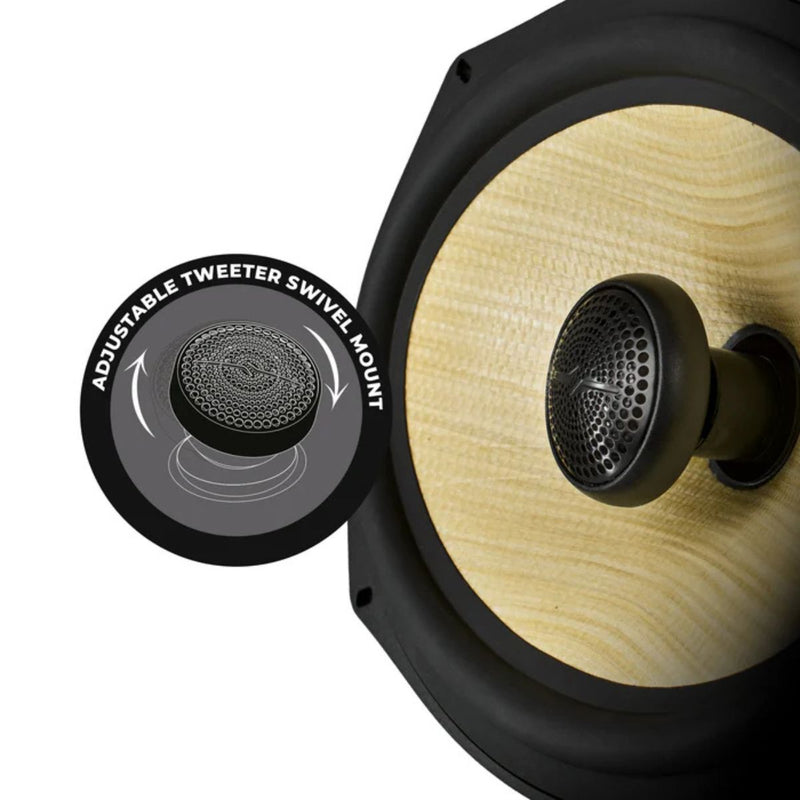

The yellow straw and composite foam woofer cone, paired with a durable rubber surround, offers tight bass and durability. A 1" silk dome tweeter with a neodymium magnet ensures smooth highs, while the adjustable swivel mount allows precise sound staging.
Engineered for Vehicle Integration
With a 4-ohm impedance and 1.2" voice coil, this speaker is ideal for a wide range of car audio builds. A recommended 60Hz high-pass crossover balances low-end warmth with crisp mids and highs.
Built for Longevity
Featuring an aluminum basket and push terminals, the DXQ6.9CX is built to handle heat and vibration without fatigue—ideal for long drives or SPL demo rigs.
Sold in Pairs
Each set includes two speakers - perfect for front-stage upgrades or complete stereo enhancement.
Features
- Yellow straw + composite foam cone for tight bass
- 1" silk dome tweeter with neodymium magnet
- High power handling: 150W RMS / 300W Peak
- Adjustable swivel tweeter for soundstage control
- 6x9" coaxial speaker sold in matched pairs
Specifications:
- Nominal Diameter: 6x9" / 152x228 mm
- Nominal Impedance: 4 Ohms
- RMS Power Handling: 150W
- MAX Power Handling: 300W
- Sensitivity (1W/1m): 89dB
- Frequency Response: 35Hz - 20kHz
- Recommended High-Pass Crossover: 60Hz
- Configuration: 2-Way Coaxial
- Sold As: Pair
Woofer Specs
- Voice Coil Diameter: 1.2" / 30.5 mm
- Voice Coil Former Material: TL
- Winding Material: SV
- Cone Material: Yellow Straw + Composite Foam
- Surround Material: Rubber Edge
- Magnet Material: Ferrite
- Magnet Weight: 20.2 oz
- Basket Material: Aluminum
- Basket Color: Black
- Cone Shape: Curvilinear
- Speaker Terminals: Push Terminals, 14 Gauge
- Improved Heat Dissipation: Yes
Tweeter Specs
- Nominal Diameter: 1" / 25 mm
- Voice Coil Diameter: 1" / 25 mm
- Voice Coil Former Material: ASV
- Winding Material: CCAW
- Diaphragm Material: Silk
- Magnet Material: Neodymium
- Magnet Weight: 0.5 oz / 14g
Thiele/Small Parameters
- Free Air Resonance (Fs): 55Hz
- Equivalent Volume (Vas): 20.96L / 0.74ft
- Excursion (Xmax): 5mm
- Mechanical Factor (Qms): 6.112
- Electrical Factor (Qes): 0.883
- Total Q (Qts): 0.772
- Mechanical Mass (Mms): 28.919g
- Mechanical Mass w/o Air (Mmd): 25.054g
- Mechanical Compliance (Cms): 0.287mm/N
- BL Factor: 6.32
- Voice Coil Inductance (Le): 0.321mH
- Cone Area (Sd): 226.98cm
- DC Resistance (Re): 3.52 Ohms
Dimensions:
- Overall Diameter: 6.4" x 9.1" (163x232 mm)
- Front Mount Baffle Cutout: 5.8" x 8.6" (146x217 mm)
- Mounting Depth: 3.4" (88 mm)
- Overall Depth: 3.8" (98 mm)
- Motor Diameter: 3.9" (100 mm)
