High-Fidelity Audio – Wide 10Hz–20kHz frequency range with <0.01% THD, >110dB SNR, and up to 11V preamp output preserves sound clarity.

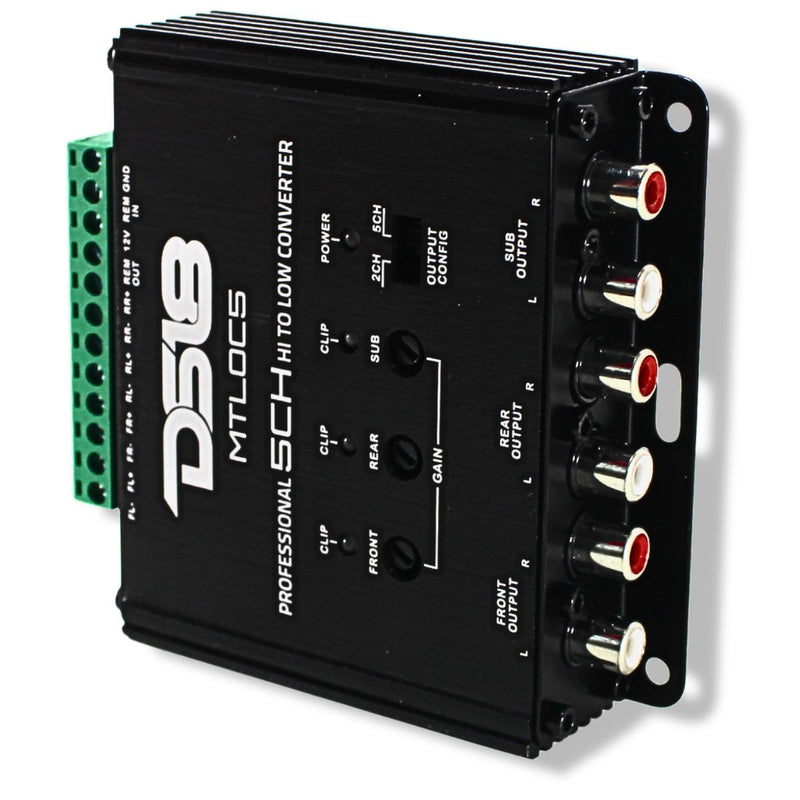

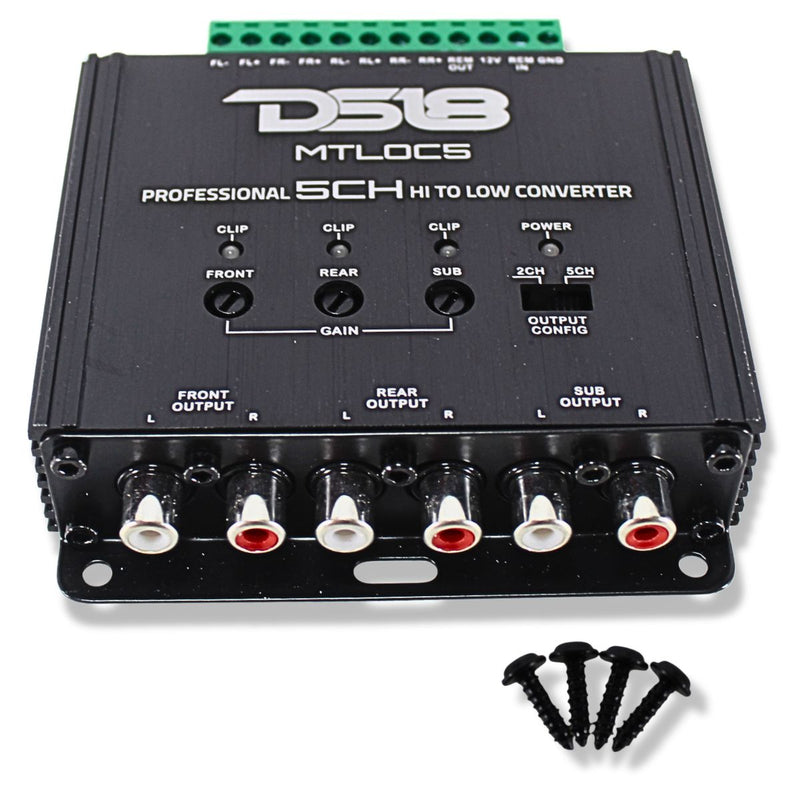

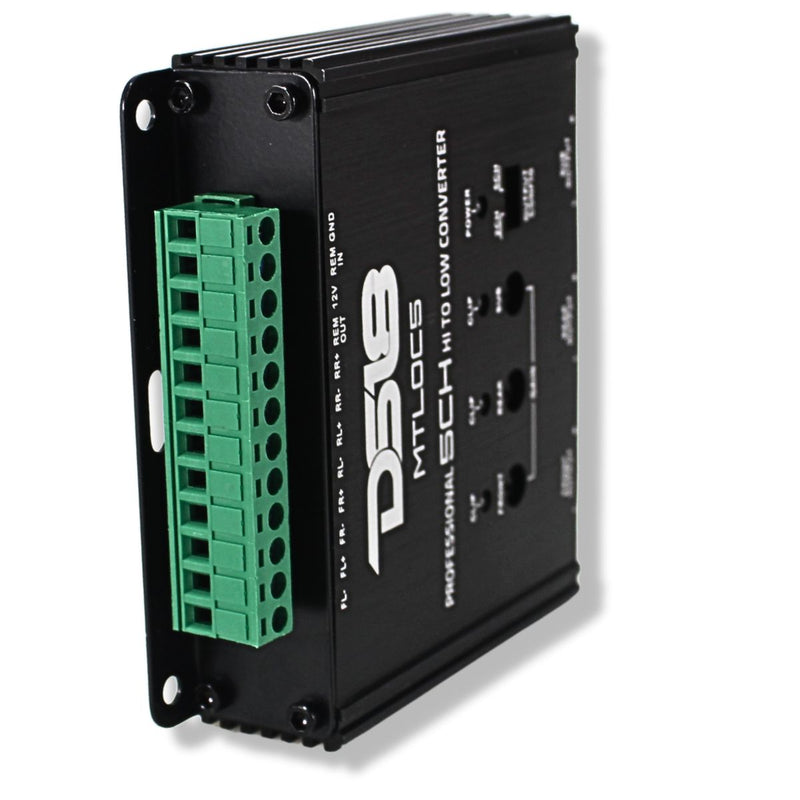

5-Channel High-to-Low Line Output Converter with Remote/Automatic Turn-On MTLOC5
This Listing Includes
(1 ) 5-Channel Line Output Converter MTLOC5
The MTLOC5 is designed for vehicles with multi-channel factory audio systems. It converts 2- or 5-channel speaker-level outputs into clean RCA signals, making it easy to connect aftermarket amplifiers without triggering factory errors. With automatic turn-on options including audio sensing, DC offset, or remote, the MTLOC5 powers amplifiers reliably and simplifies installation. Its aluminum housing provides durability and noise rejection, while the wide frequency response keeps your music clear and detailed. Compact, reliable, and flexible, the MTLOC5 is the right choice for advanced car audio upgrades.
Features
5 Channel High to Low Conversion
2 or 5 Channel Input Configuration
Automatic Amplifier Turn On via Audio, DC, or Remote
Durable Aluminum Housing with Noise Rejection
10Hz to 20kHz Frequency Range with less than 0.01 percent THD
LED Indicators for Power and Clip Status
Compact Size for Easy Installation
Specifications
Maximum Speaker Input: Up to 40V 400W RMS
Maximum Preamp Output: Up to 11V
Conversion Ratio: 4 to 1
Frequency Response: 10Hz to 20kHz
THD: less than 0.01 percent
Signal to Noise Ratio: greater than 110dB
Input Impedance: Selectable 20 ohms, 60 ohms, or 20k ohms
The MTLOC5 delivers clean signal conversion for multi-channel factory systems. With selectable inputs, noise rejection, and automatic turn-on functions, it offers professional-level integration in a compact and durable design
