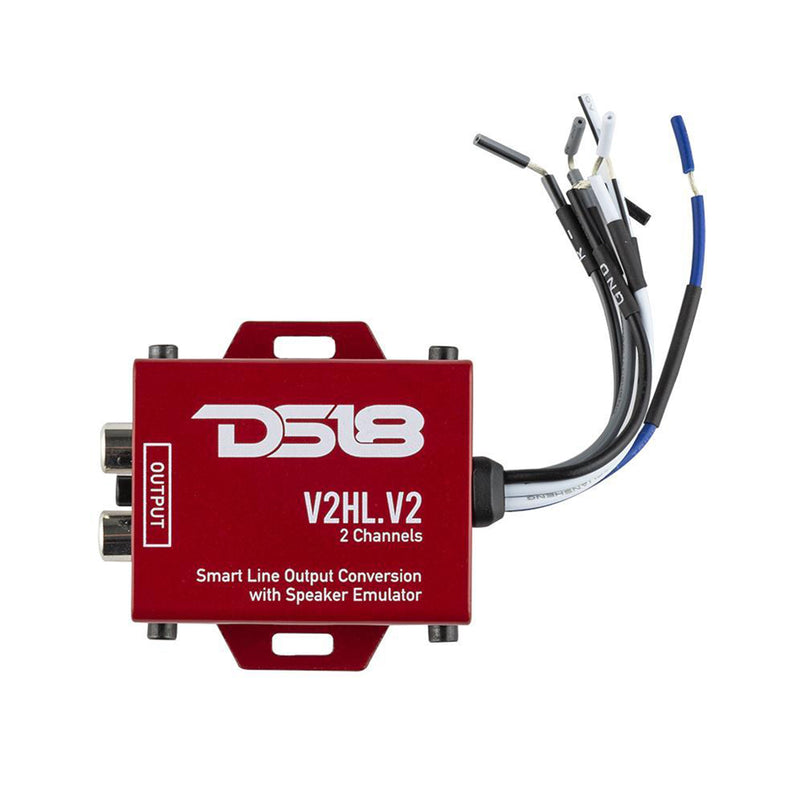

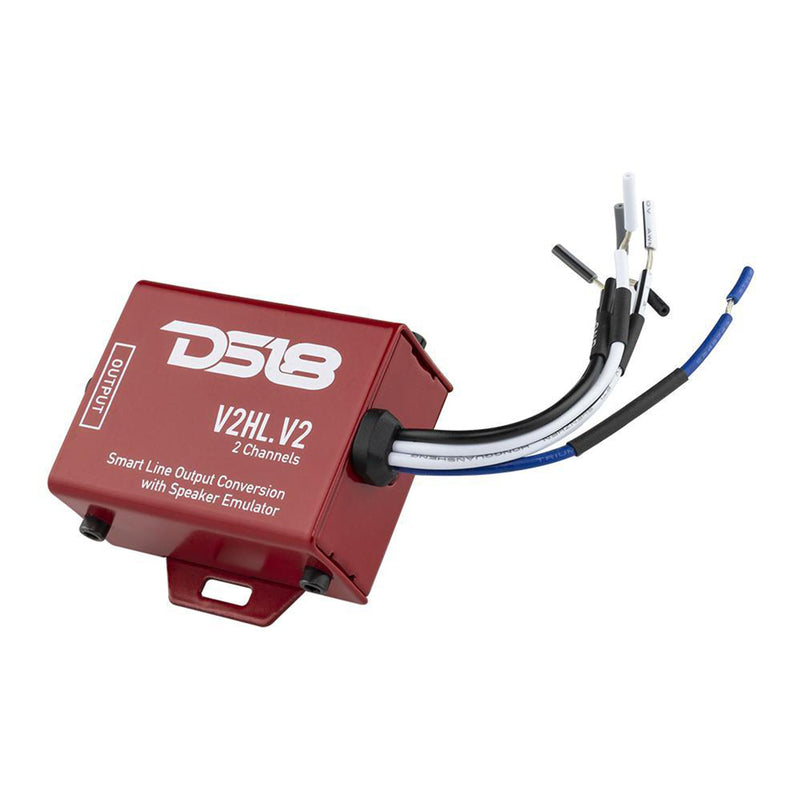

DS18 2 Channel High/Low Smart Line Output Conversion w/ Speaker Emulator V2HL.V2
Most new vehicles use their factory head unit for integration controls. This means its very difficult and expensive to swap out head unit and keep all your factory functions integrated like: climate control, lighting, and GPS. A simple way to add amplifiers with also retaining your factory head unit is DS18's V2HL.V2 converter. This converter will splice into your factory head unit or amplifiers output and will convert the signal to RCA output which is necessary for most aftermarket amplifiers. This unit will provide 2 channel L+R output so you can enjoy all the benefits of your aftermarket sound system.
This Listing Includes:
(1) DS18 Line Output Conversion w/ Speaker Emulator V2HL.V2
Features:
- Signal sensing technology that turns the unit on as soon as signal is detected so remote wire turn on can be optional.
- Easy mounting and sleek design so you have a near unlimited options for placement inside the vehicle.
- Adjustable output voltage up to 8v so you can get a crystal clear signal with no distortion.
- Speaker emulator that enables signal output from some OEM amplifiers that shut down if no speakers are detected and let
you do away with adding resistors to keep the amplifier and oem headunit functional.
- 2CH Smart line-output converter
- 2CH high level input 2CH RCA output
- Surface mount component technology
- Lowest impedance and best power filter
- FR4 double sides PC board
- Remote trigger output with signal sensing
- Power LED indicator to show working status
Specifications:
Input: Up to 55W
Output: Up tp 8V
Remote Output Generate:12 Volt
Frequency response: 10Hz-30KHz
Input Impedance:20K ohm
Standby Current: 200mA
Dimensions: 2.58" x 2.24" x 0.95"
