- 6TB HDD Included
- HDCVI/AHD/TVI/CVBS/IP video inputs
- 16 channels video stream
- Interface 1 HDMI ,1 VGA
- Max 24 channels IP camera inputs

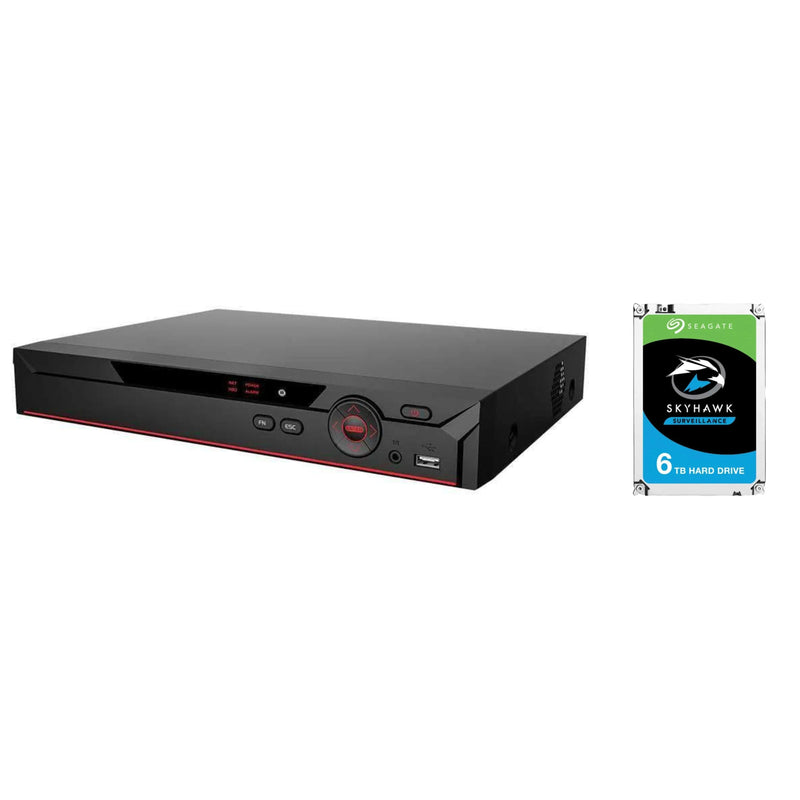

ENS Security Diamond 16ch 1080P XVR Home Surveillance Recoding System + 6TB HDD
This Listing Includes:
(1) 16 Channel XVR
(1) 6TB HDD

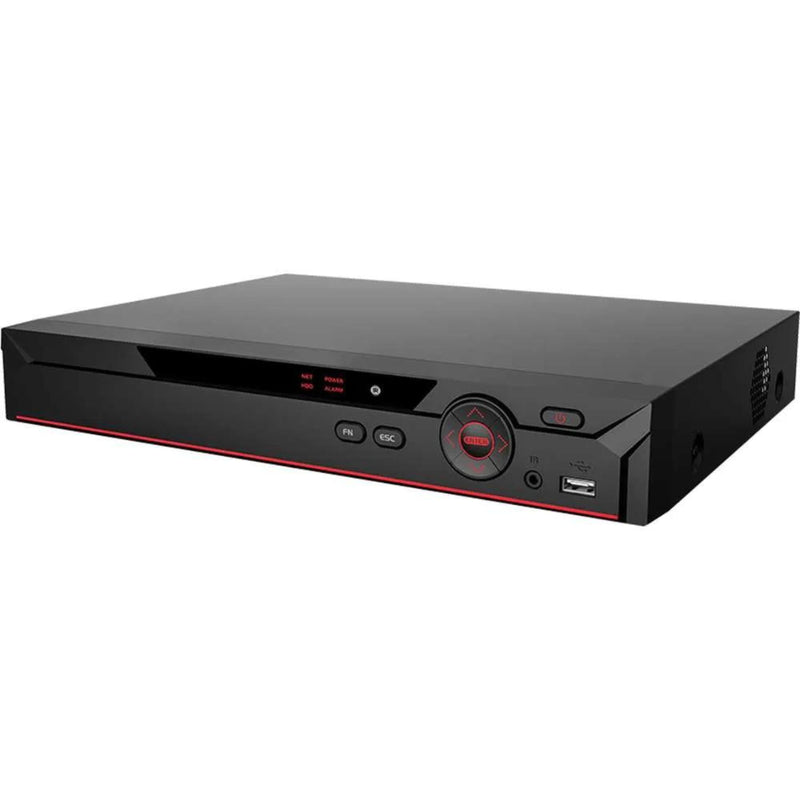

ENS Diamond Series XVR501H-16-I3 features max. full-channel SMD Plus to benefit customers from AI upgrade. This XVR has been developed to reduce false-alarm rates and the cost of human surveillance, thus bringing great value to customers in search of products with accurate human/vehicle alarm to raise the security level of various indoor and outdoor facilities. APP available for Android and iOS.
Key Features:
- H.265+/H.265 dual-stream video compression.
- Full-channel AI Coding.
- HDCVI/AHD/TVI/CVBS/IP video inputs.
- Max 24 channels IP camera inputs, each channel up to 6MP; Max 128 Mbps incoming bandwidth.
- 2 channels video stream (analog channel) Perimeter Protection and human face recognition.
- 16 channels video stream (analog channel) SMD Plus.
- IoT & POS functionalities.
Product Specifications
ENS Diamond Series | XVR501H-16-I3 System
-Main Processor: Industrial-grade processor
-Operating System: Embedded LINUX
-Perimeter Protection: Performance 2 Channels
-Face Detection: 6 Face Attributes, Gender, age groups (6), glasses, expressions (8), face mask, beard, with up to four detection panels displayed at the same time
-Performance of AI 2 channels (up to 12 face images/s) Face Recognition
-Database Management
-10 face databases
-10,000 total face images
-Name, gender, birthday, address, certificate type, certificate No. countries, regions, and state can be added to each face picture.
-Performance of AI 2 channels
SMD+
SMD Plus by Recorder
Full-channel SMD Plus (AI by recorder), secondary filtering for human and motor vehicle SMD Plus, reducing false alarms caused by leaves, rain and lighting condition change.
Video and Audio
Analog Camera Input 16 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured
HDCVI Camera Input 5MP/4MP/1080P @ 25/30 fps
720P @ 50/60 fps, 720P @ 25/30 fps
AHD Camera Input 5MP/4MP/3MP/1080P @ 25/30 fps
720P @ 25/30 fps
TVI Camera Input 5MP/4MP/3MP/1080P @ 25/30 fps
720P @ 25/30 fps
IP Camera Input 16+8 channels, each channel up to 6MP

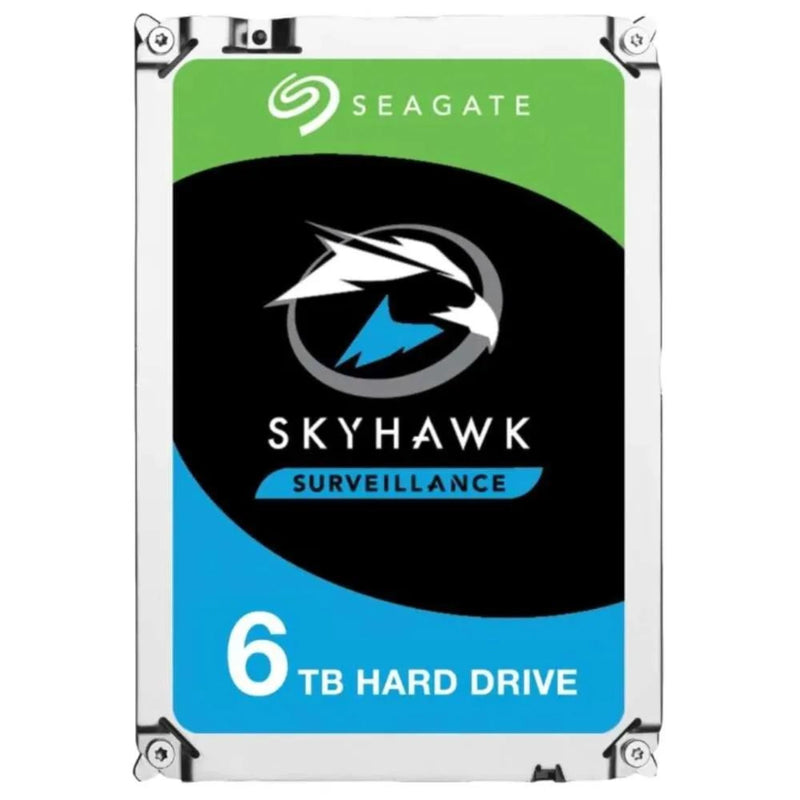

HDD Features:
- Interface: SATA 6Gb/s
- Cameras Supported: up to 64
- Max Sustained Transfer Rate OD: 195MB/s
- Cache: 64MB
- Tarnish Resistant: Yes
- Load/Unload Cycles: 600,000
- Power-On Hours per year: 8760 hrs
- Average Operating Power: 9W
- Dimension (WxDxH) : 4" x 5.8" x 1"
- Weight: 1.55 Lbs
HDD Specifications:
- Drive Bays Supported: Up to 16
- Cameras Supported: Up to 64
- RV Sensors: Yes
- Max Sustained Transfer Rate OD (MB/s): 180MB/s
- Cache (MB): 256MB
- Load/Unload Cycles: 600,000
- Nonrecoverable Read Errors Rate, Max: 1 per 10E14
- Power-On Hours per year: 8760
- Workload Rate Limit (WRL): 180
- Mean Time Between Failures (MTBF) (hours): 1000000hr
