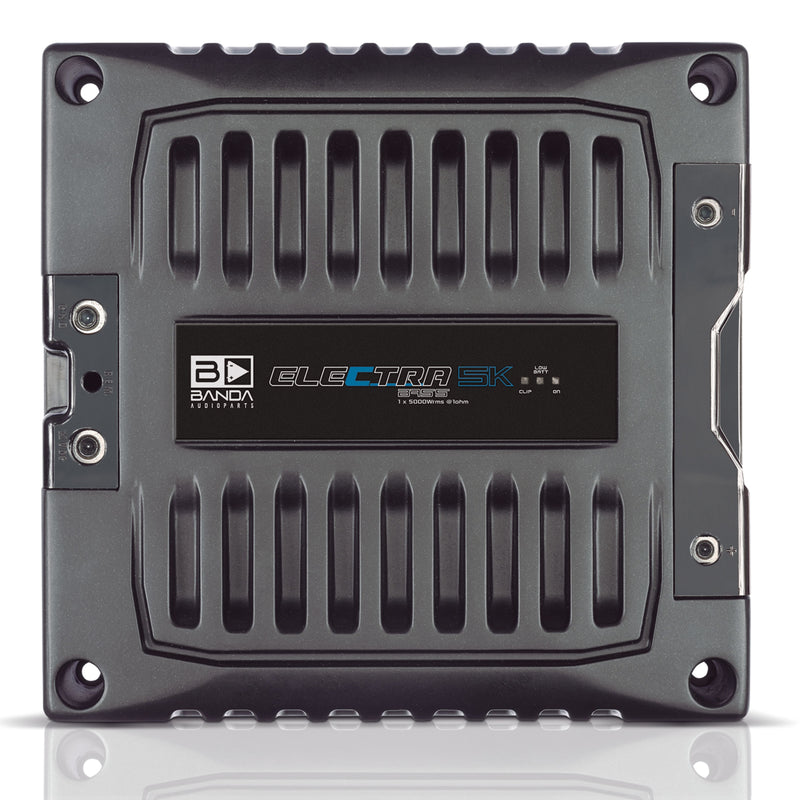

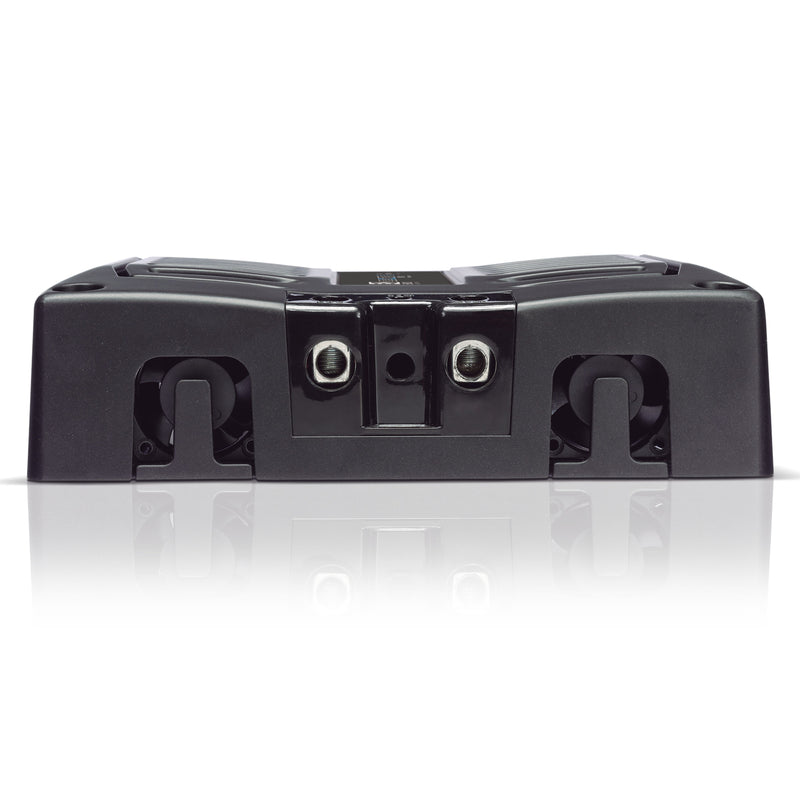

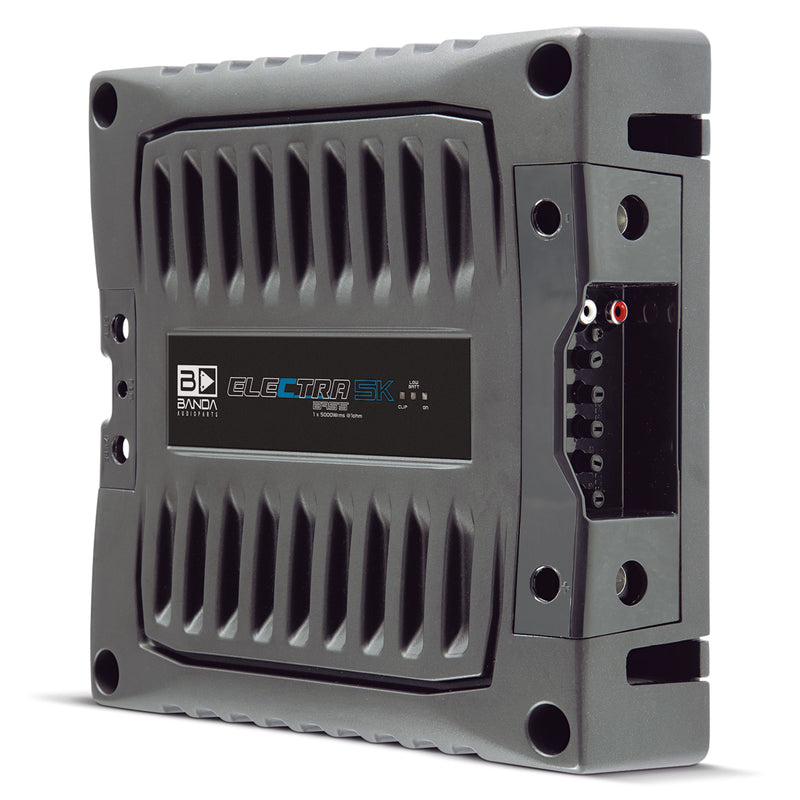

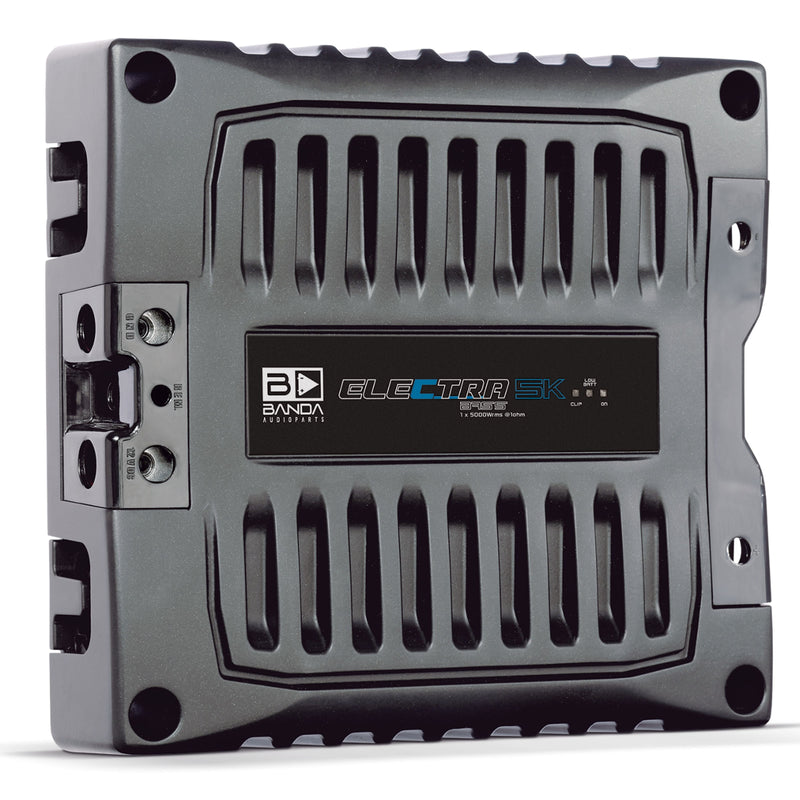

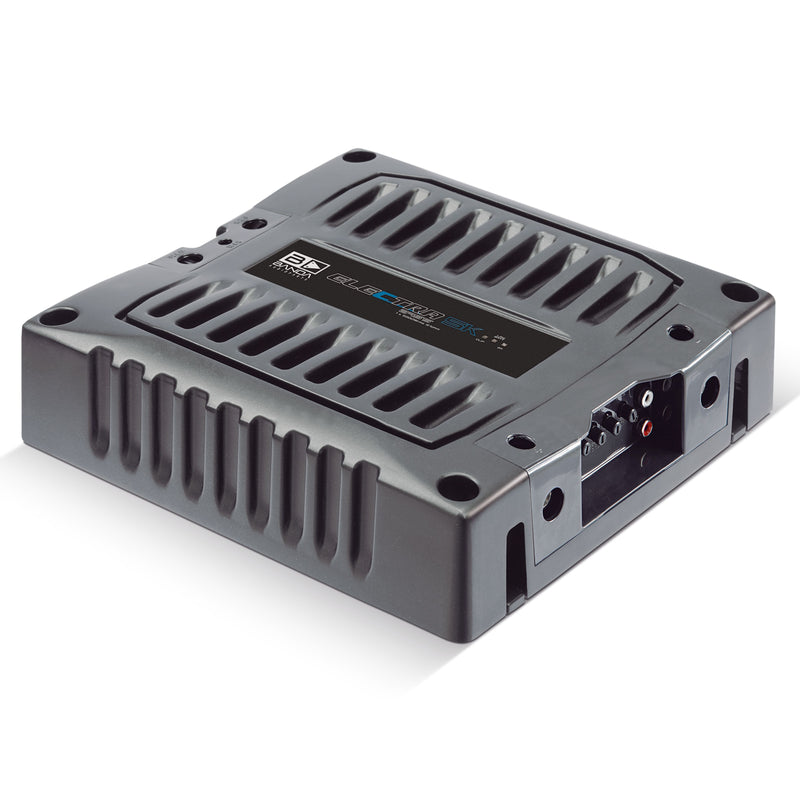

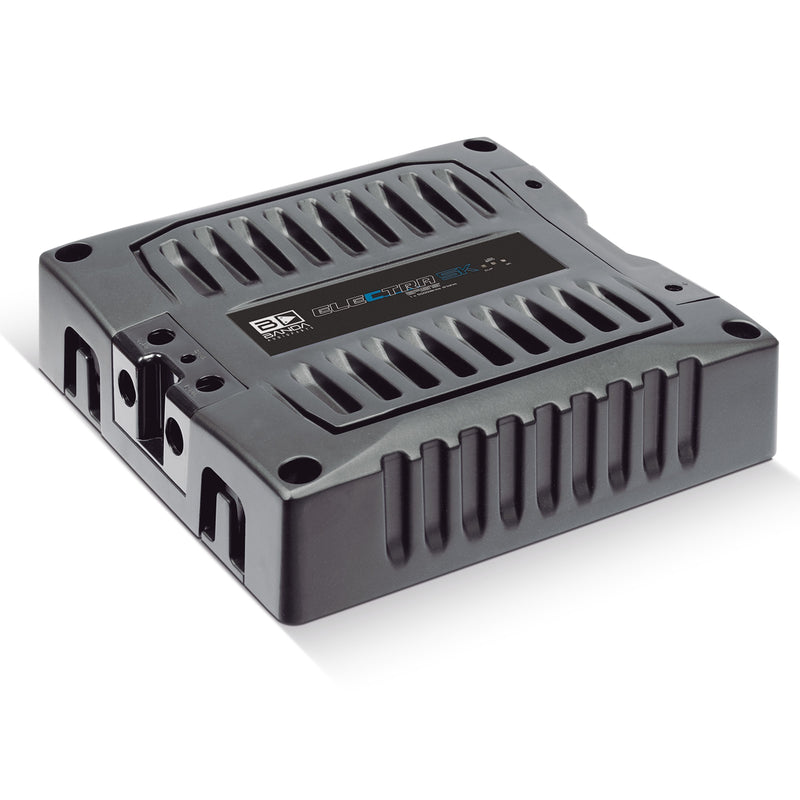

Banda 5000 Watt 1-Ohm Monoblock ELECTRA Line Aluminum Brazilian Bass Amplifier

• Banda ELECTRA 5K Monoblock Bass Amplifier (1 Ohm) – High-output Brazilian amp engineered for serious subwoofer performance
• 5000W RMS @ 1 Ohm – Massive power output ideal for high-demand bass setups
• Bass-Focused Frequency Response (20Hz – 500Hz) – Built specifically for subwoofer applications
• 78% Efficiency – Solid performance with smart heat management

Banda 5000 Watt 1-Ohm Monoblock ELECTRA Line Aluminum Brazilian Bass Amplifier

This Listing Includes:

• (1) Banda ELECTRA Line Aluminum Brazilian 5000 Watt 1-Ohm Monoblock Bass Amplifier

The Banda ELECTRA Line 5000W Monoblock Amplifier is engineered to drive serious bass with raw Brazilian power and elite performance. Designed for SPL builds and heavy-hitting subs, this full-range Class D amplifier delivers up to 5000 Watts RMS at 1 Ohm — making it a top-tier choice for bass lovers who demand loud, clean, and reliable output.

Housed in a lightweight aluminum chassis for maximum heat dissipation and durability, the ELECTRA 5000 combines precision filtering, variable bass boost, and wide voltage support to dominate your low-end soundstage.

Features

• Monoblock bass amplifier – perfect for subwoofers and SPL systems


• Delivers 5000W RMS @ 1 Ohm, 3100W RMS @ 2 Ohms (12.6V)


• Wide frequency response range from 16Hz to 500Hz


• High-efficiency full-range Class D design (up to 76% efficiency)


• Variable Bass Boost from 30Hz to 80Hz (+12dB max)


• HPF: 16Hz – 100Hz / LPF: 80Hz – 500Hz


• Lightweight 100% aluminum chassis for better cooling


• Signal-to-noise ratio of 80dB ensures clean, crisp performance


• Built tough for high current draw – handles musical bursts up to 260A

Specifications

• 12,6V 2ohms - 3100Wrms


• 12,6V 1ohm - 5000Wrms


• Efficiency Nominal Impedance 76%


• Total Power: 5000 Wrms @ 12.6volts


• Impedance: 1 ohm


• Tension: 9 - 15V


• Input Impedance: 100K 0hms THD + N < 1%


• Input Sensitivity: ~150mV - 8V


• Signal-to-noise ratio: 80dB


• Frequency Response: 16Hz to 500Hz (-3dB)


• Bass Boost: 30Hz to 80Hz      0 to +12dB HPF 16Hz - 100Hz LPH 80Hz - 500Hz


• Recommended Fuse: 250A


• Quiescent Current: â2,5A


• Maximum Current (sinusoidal signal): 520A


• Maximum Current (musical signal):260A


• Power Cords: 50mm (recommended minimum)


• Channels: 1

Dimensions

• Weight: 8.2 Lbs


• Height: 2.5 inches


• Width:  8.9 inches


• Depth: 9.3 inches

Box Measurements

• Length: 10.5 in


• Width: 10.25 in


• Height: 2.75 in


• Weight: 9 lbs
