Rockford Fosgate 2.7" Stage 1 Polaris Generals Stereo and Dash Kit Motorsports

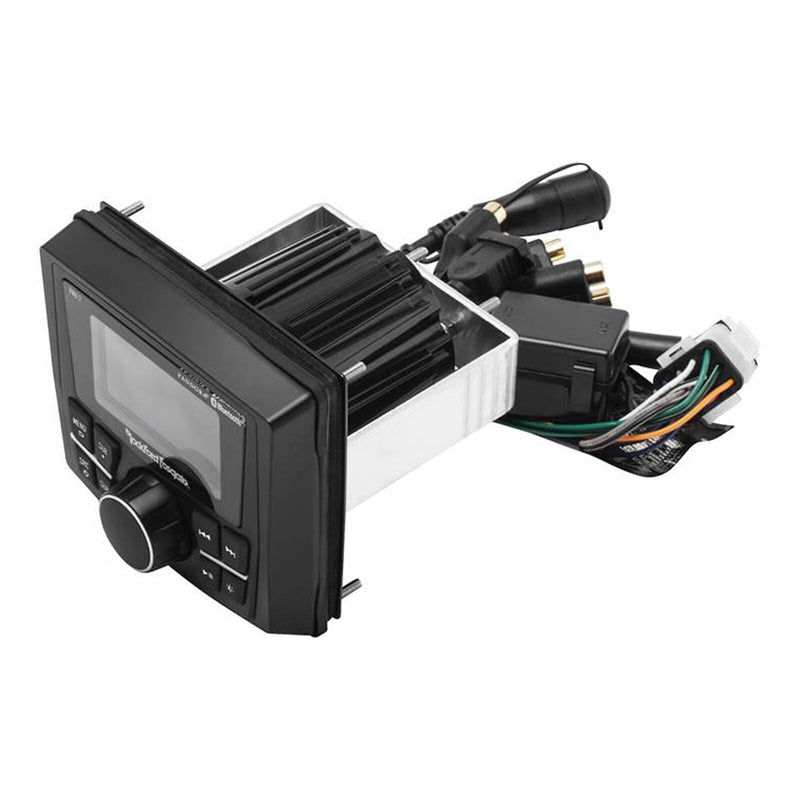

Our Stage 1 kit lets you easily add the PMX-2 digital media receiver to your General using the included dash mounting kit. Coming prepackaged with all necessary hardware and a pre-terminated wire harness, this kit allows you to quickly upgrade your General with minimal time and tools required.
This Listing Includes:
-Rockford Fosgate PMX-2:
(1) Marine digital media receiver
(1) Trim-ring
(1) Mounting plate
(1) Mounting bracket
(1) Wiring harness
(1) Backstrap
(4) Machine screws
(4) Hex-nuts
(1) Installation & Operation booklet
-Rockford Fosgate RFGNRL-PMXDK:
(1) Dash bezel
(1) PMX-2 harness
(1) PMX-0 harness
(1) Power harness
(1) PMX-2 housing
(1) PMX-0 housing
(1) Metal bracket
(8) Small screws
(2) Large screws
(4) Butt-connectors
(5) Wire-ties
(1) Installation/Operation Booklet
General Features:
-Direct connect wiring harnesses for GENERAL models
-Element Ready to withstand the harsh outdoor environment
-PMX-2: Punch Marine Compact AM/FM/WB Digital Media Receiver 2.7" Display
-RFGNRL-PMXDK: Installation Kit for Dash
-Antenna not included
Specifications:
PMX-2

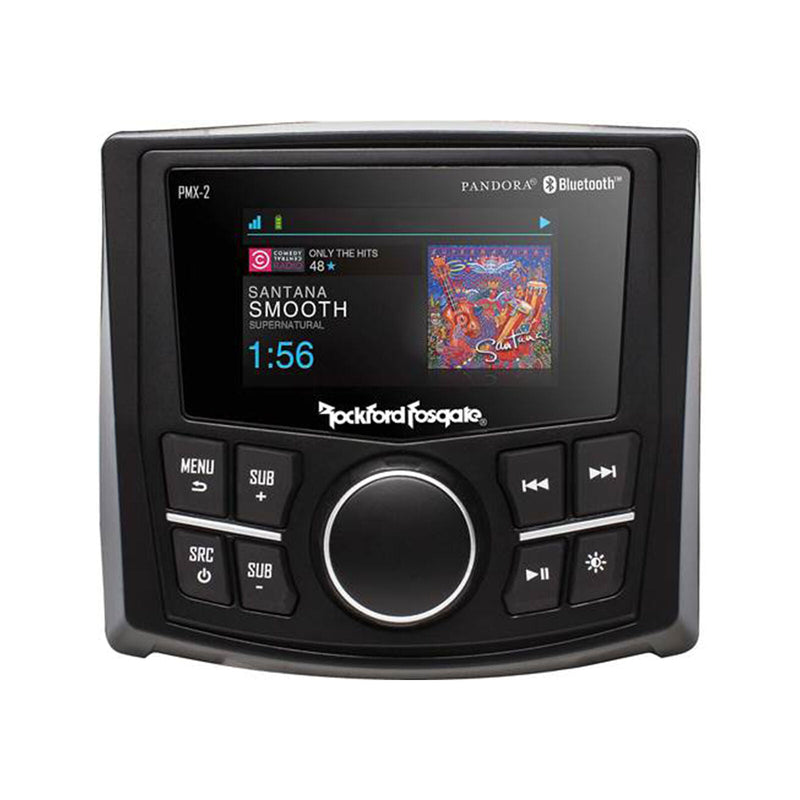

The PMX-2 compact digital media receiver is designed for marine and motorsports applications.
The PMX-2 features a 2.7" full-color TFT display for optimum viewing - even in full sun - that is optically wet bonded to prevent any dust or moisture penetration. It is IPX6 rated and uses a water-resistant rotary encoder knob with white LED button illumination and front-mounted sub-level controls. Additionally, with features such as Pandora control capabilities and Bluetooth audio steaming with album art support1 this unit becomes a true command center of any system. 1Android devices are equipped with limited functionality. Please refer to the owner's manual for details.
Output flexibility comes with a 4x50W @ 2ohm internal amplifier or front and rear/sub output RCA's allowing the addition of aftermarket amplifiers for more power and output. Add in the EEPROM memory system, custom GUI interface, and wired remote expansion capabilities and you have the only media receiver you'll ever need.
-ISO8846/SAE J1171 Ignition Protection Certified
-Pandora Internet Radio
-A2DP and AVRCP Bluetooth Wireless Streaming
-FCC, CE, IC, and C-Tick Certified
-Multi Region Radio Frequencies
-Low Voltage Warning Alert
-AUX and USB Inputs with USB Charging
-On Board Punch EQ Control
-Independent Subwoofer Level Control
-iPod playback with on-screen display
-Selectable HP / LP / AP Crossovers with Selectable Slope 12 / 24 dB/Oct
-IPX6 Marine Grade for prevention of water intrusion
-7-Band Graphic EQ
-2.7" full-color display w/ auto-dimming backlighting
-AM / FM / WB Tuner
-Zone Control: 1 Zone / 1 Source (F/R or Sub)
-FM TUNER Sensitivity: 8 dB
-AM TUNER Frequency: 530 kHz - 1710 kHz
-AM TUNER: 40 dB
-RCA Output Voltage: 2V RMS Does not clip at full output
-RCA Output Impedance: 500 Ohm
-Operating Voltage10.5 V - 16 V
-Speaker Impedance: 2 Ohms
-Fuse Rating: 20 A
-USB Capacity: 32Gb max
-MEDIA PLAYER Audio Format Compatibility: MP3, WMA, FLAC
-Android Compatibility: Bluetooth Only
-USB Version: 2.0
-USB Charging: Yes
-Steering Wheel Control Ready: No
-Frequency Response: 20 Hz - 20 kHz
-Multi-Zone/Multi-Source: No
-Clock: No
-Display Size: 2.7" Color TFT
-SiriusXM-Ready: No
-USB Output Current: 1A
-Apple/Android Compatible: Yes
Dimensions:
(HxWxD)
Width: 4.5" (11.5cm)
Face Depth: 1.5" (3.8cm)
Mount Depth: 2.9" (7.4cm)
Height: 4.2" (10.6cm)
Back Panel Cutout: 3" (77mm)
Shipping Weight: 3 Lbs. (1.36 Kg)
RFGNRL-PMXDK
-Texture and color-matched to the vehicle interior
-Direct bolt into the vehicle using OEM mounting holes. Minimal drilling required
Compatibility
GENERAL 1000 EPS 1: Years (2016-2021)
GENERAL 1000 EPS Deluxe 1,2: Years (2016-2021)
GENERAL 4 1000 EPS 1: Years (2017-2021)
